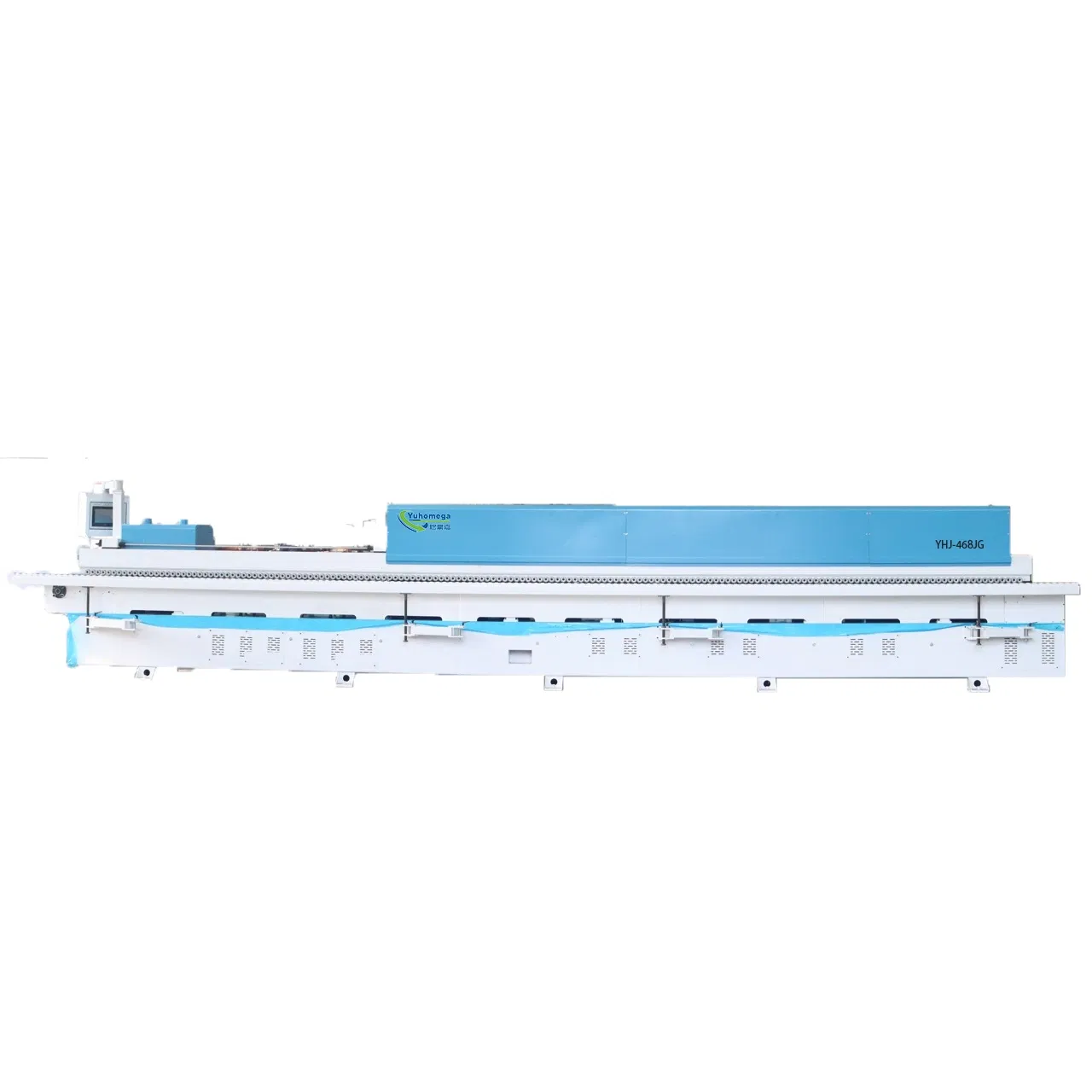

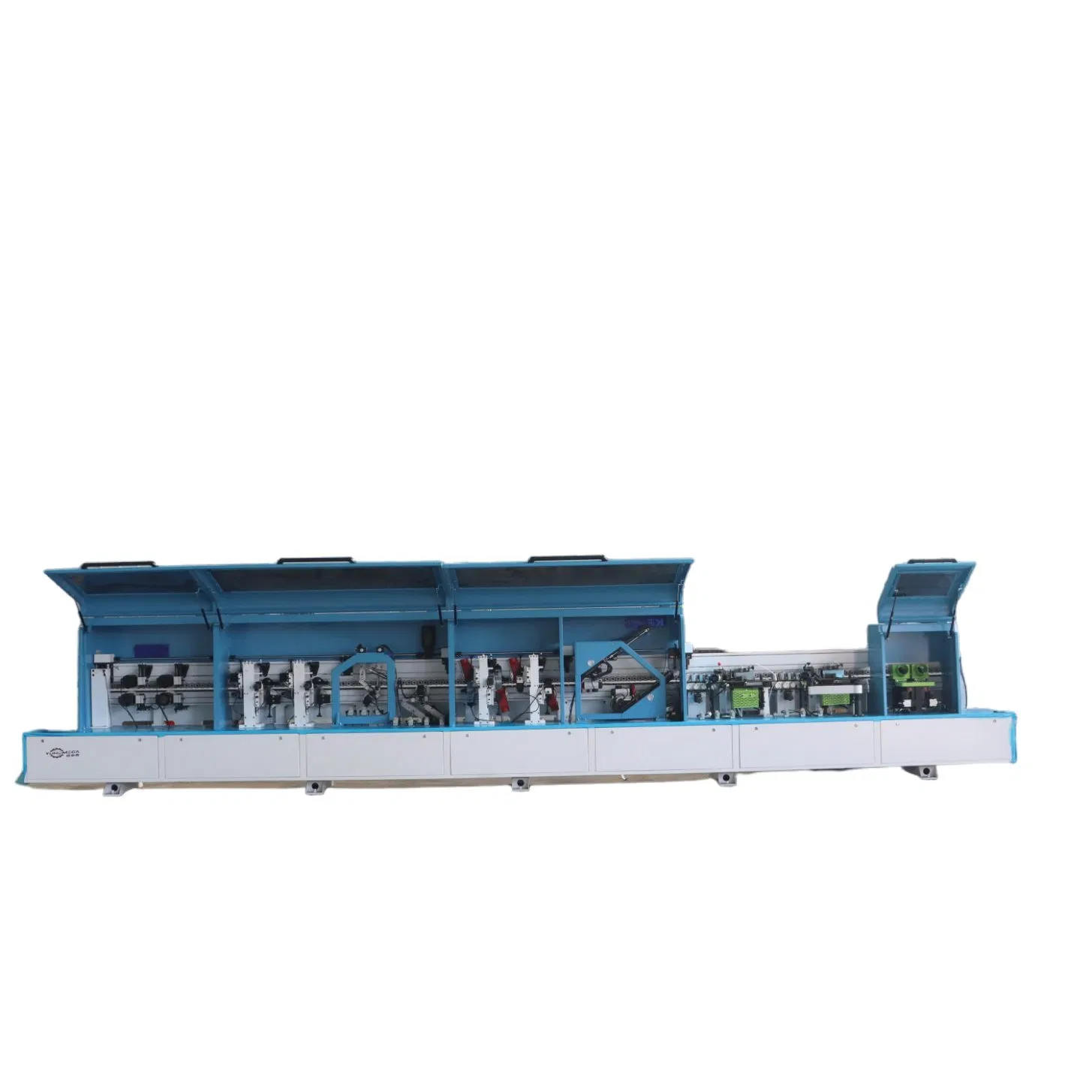

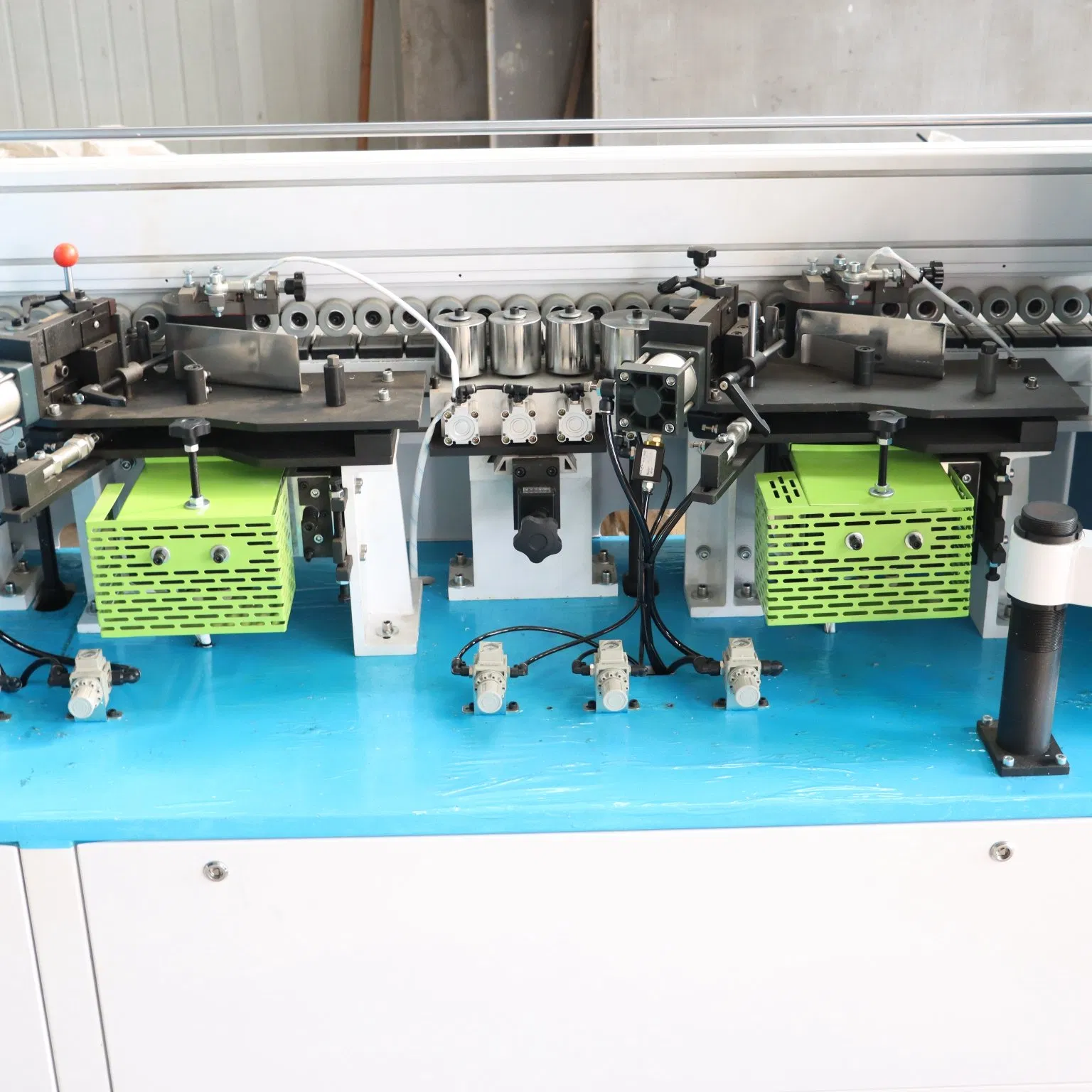

High-Performance Fully Automatic Pre-Milling Chamfering Contour Tracking Edge Banding Machine
Product Description
| Model | YHJ468JG | Serial Number | 20251102 |
| Panel length | >120mm | Edge Thickness | 0.4-3mm |
| PanelThickness | 10-45mm | Motor | 18KW |
| Net Weight | 2500KG | Voltage | 380V |
| Dimension | 6600*1100**1680mm | Producing Date | 2025.10 |

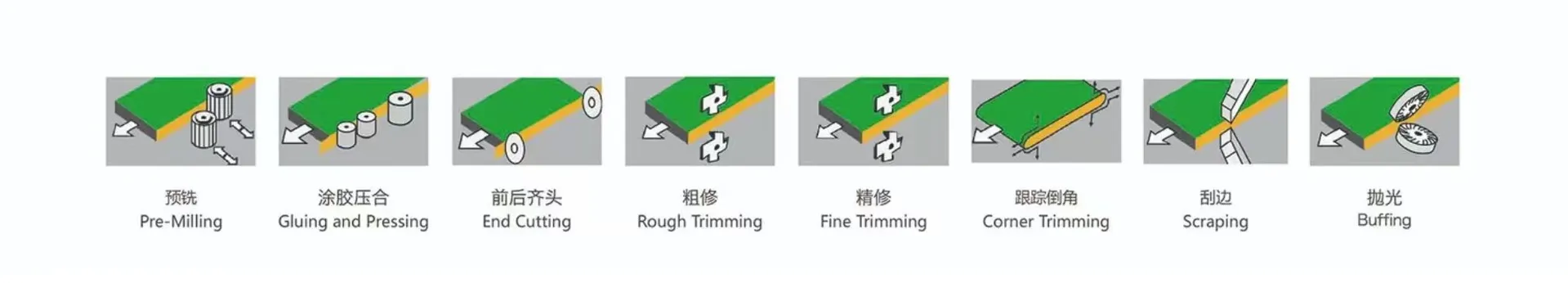

Show The Details
Gluing unit
Edge banding machine gluing is the core process of edge banding for panel furniture. The quality of gluing determines the aesthetic appearance of the furniture as well as the quality of edge banding.

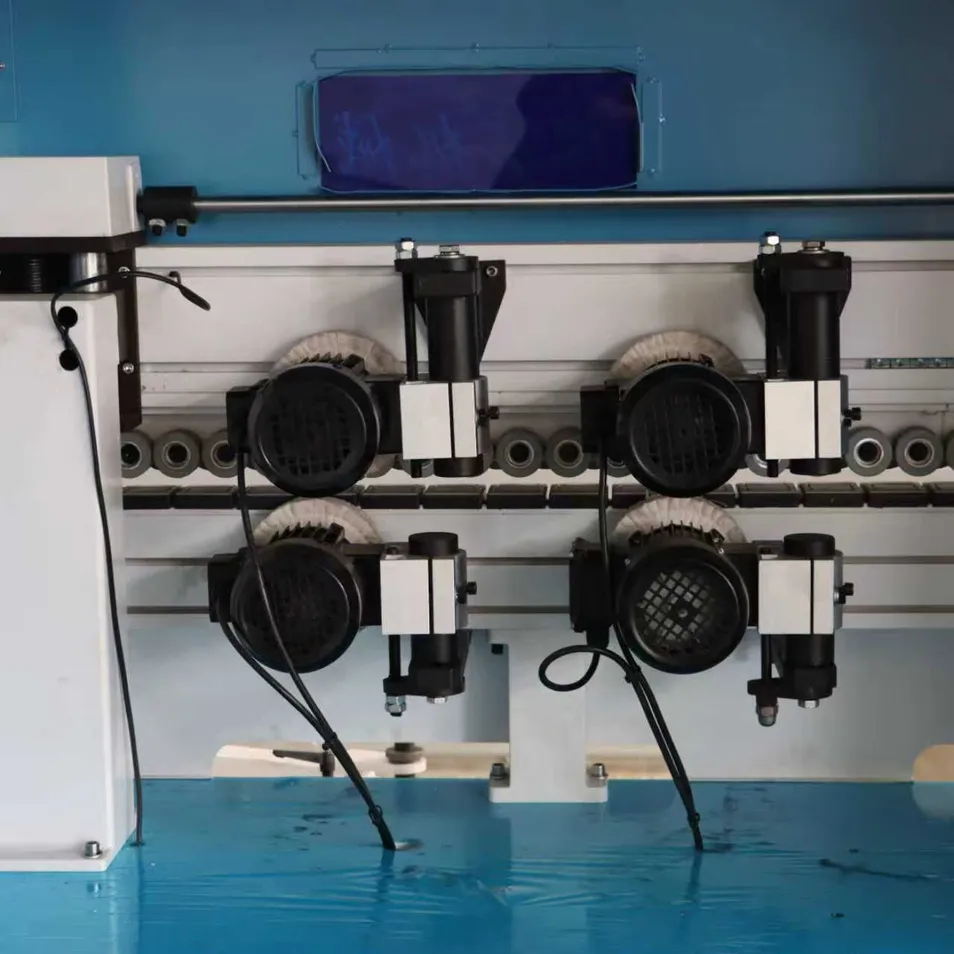

Pre-milling unit
The pre-milling function of the edge banding machine is a process that performs fine milling on the end face of the board before edge banding. Its purpose is to correct the burrs, broken edges and size errors resulting from the cutting process, making the end face of the board smooth and flat, improving the adhesion to the edge banding tape, and reducing the workload of subsequent trimming.

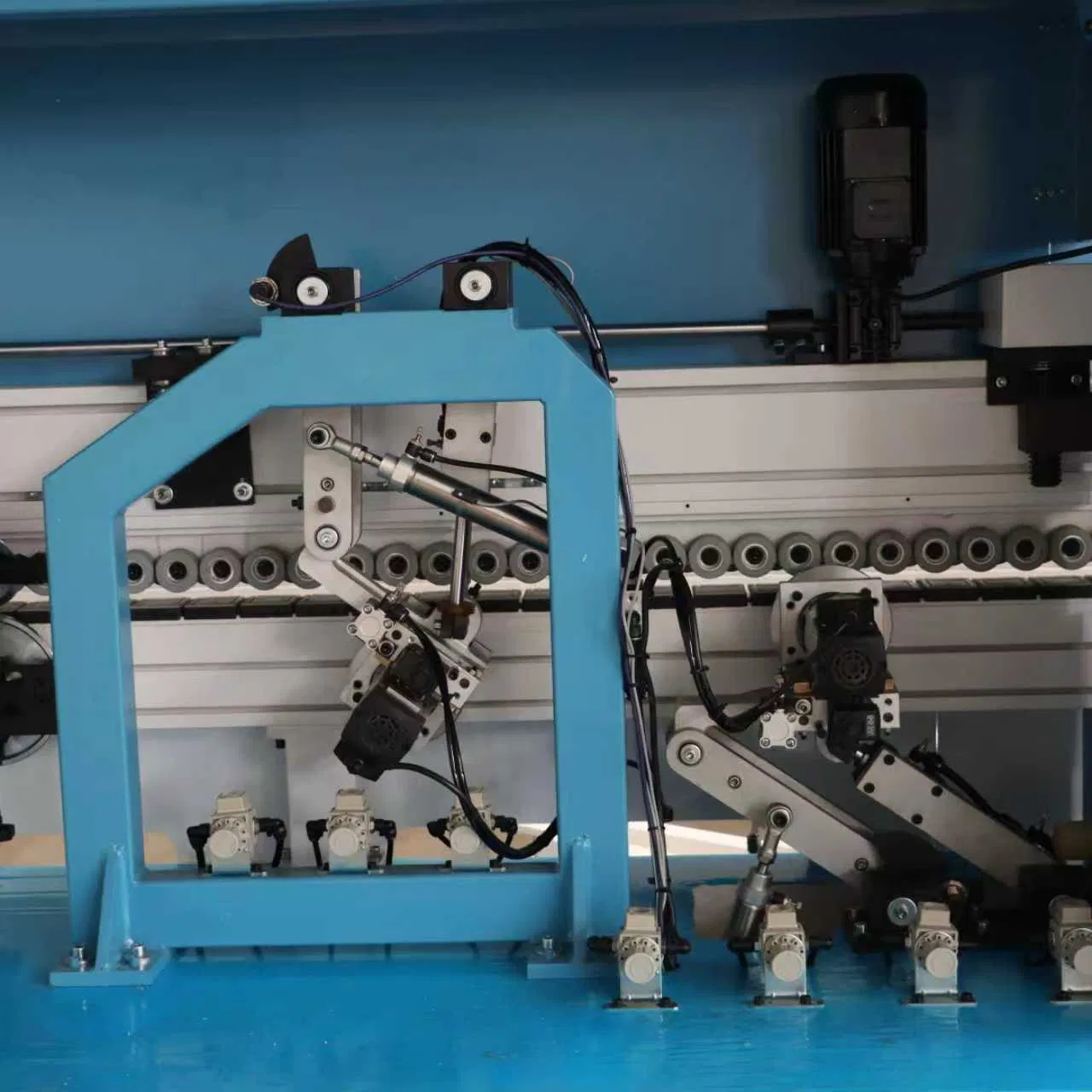

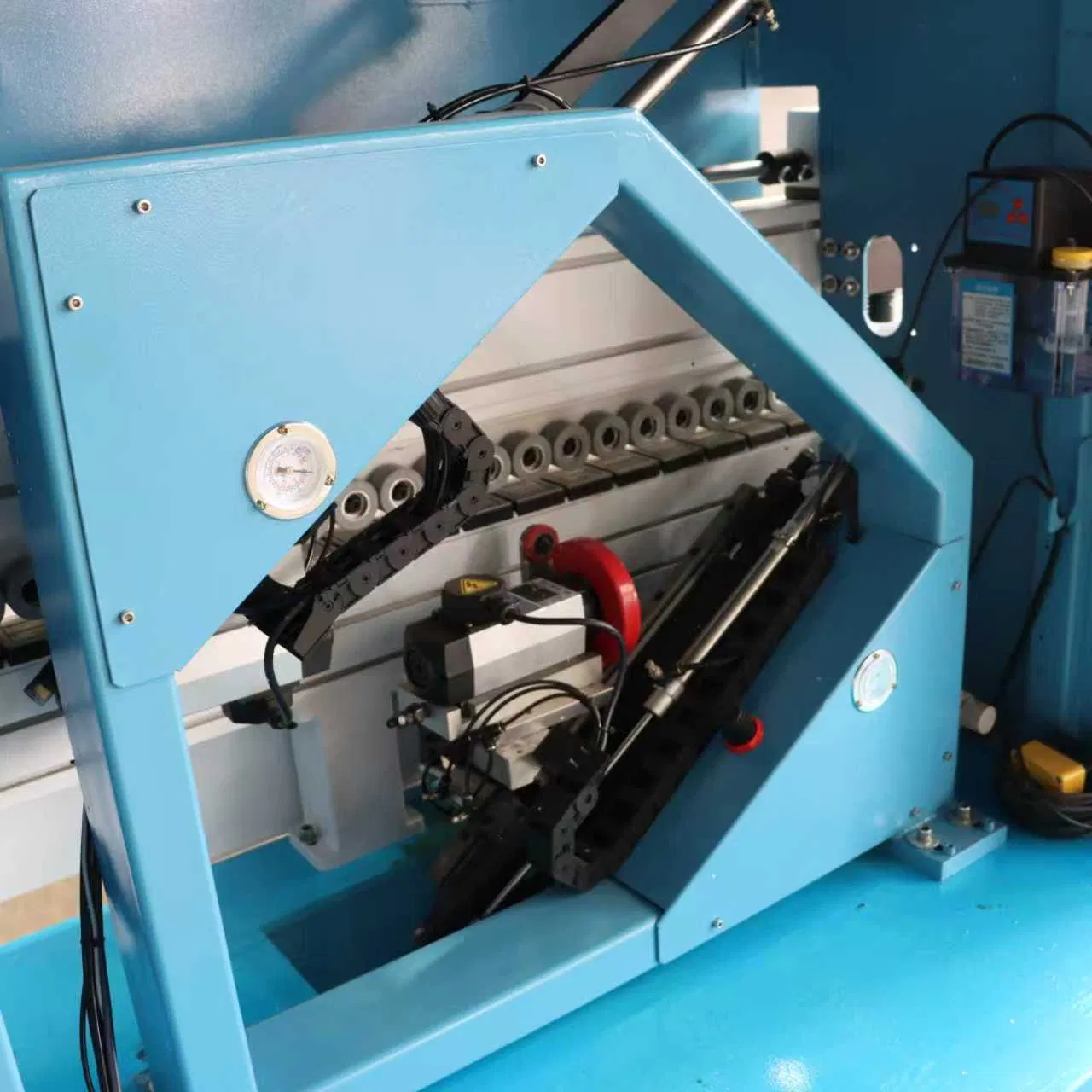

End Trimming
The head-to-head function of the edge sealing machine is a process of quickly cutting off the excess sealing tape at both the beginning and the end of the board after edge sealing. Its core function is to remove the part of the sealing tape that extends beyond the end face of the board, laying the foundation for subsequent fine trimming and edge scraping processes, and ensuring the flatness and consistency of the edge sealing at both the beginning and the end.
Fine Trimming
The fine-tuning function of the edge banding machine is the core process following the parallel process, which precisely trims the excess edge banding on both the upper and lower sides of the board. The aim is to make the thickness of the edge banding exactly the same as that of the board, eliminating the edge step effect, and enhancing the flatness and aesthetics of the edge banding.
Profiling Chamfering
The profiling function of the edge banding machine (often referred to as profiling tracking) is a high-end edge trimming process for the front and rear surfaces of the sheet material. Its purpose is to transform the right-angle edge bands remaining after the alignment process into rounded or chamfered corners that are consistent with the upper and lower edges of the sheet, achieving a smooth and seamless edge trimming effect without any "dead corners". It is mostly used for products with extremely high appearance requirements, such as door panels.
Scraping
The edge trimming function of the edge banding machine is a process that performs fine scraping on the edge banding surface after the precision finishing or profiling process. Its core function is to remove the tiny burrs, scratches and overflow glue left from the precision finishing, making the surface of the edge banding smooth without any step-like feeling. This enhances the hand feel and aesthetic appeal of the final product.
Polishing
The polishing function of the edge banding machine is the final step in the edge banding process. Its core role is to remove the fine scratches, glue stains and burrs remaining after the edge scraping by using a flexible polishing wheel, so as to make the surface of the edge banding strip form a uniform luster, thereby enhancing the hand feel and visual texture of the finished product.
