Newfuture 720mm Servo System Automatic Vinyl Contour Cutting Plotter
Product Description

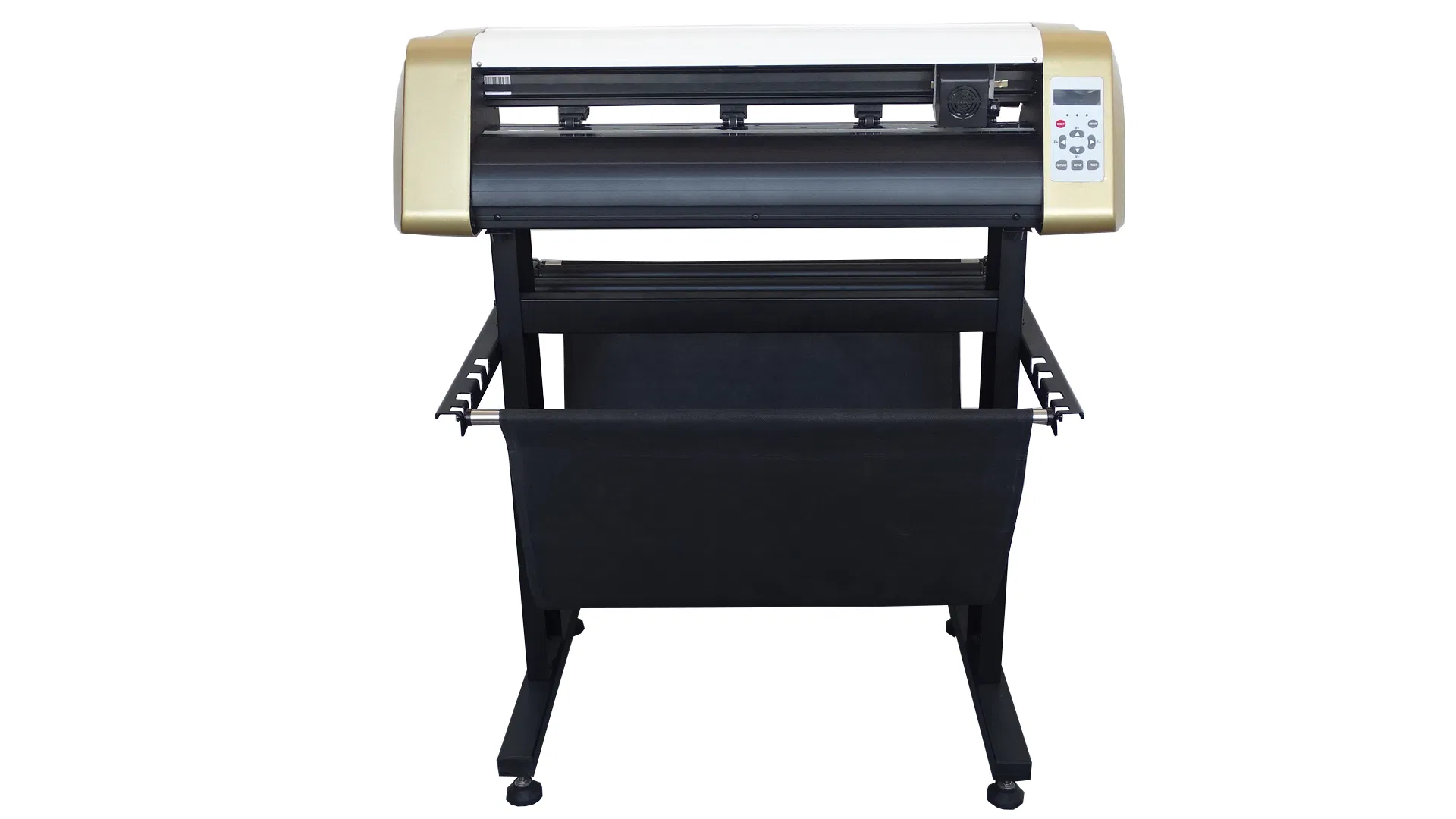

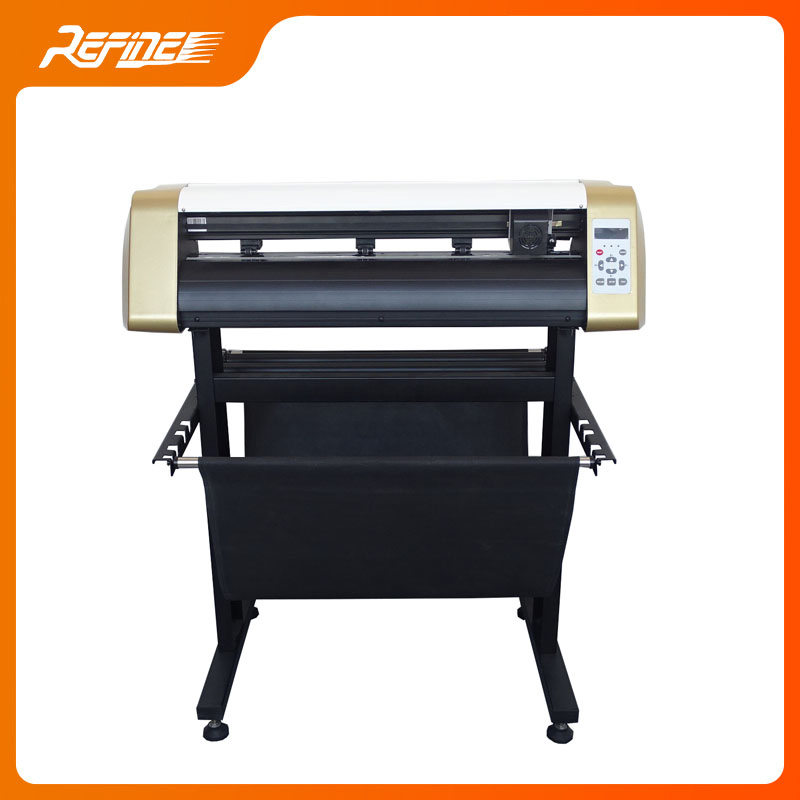

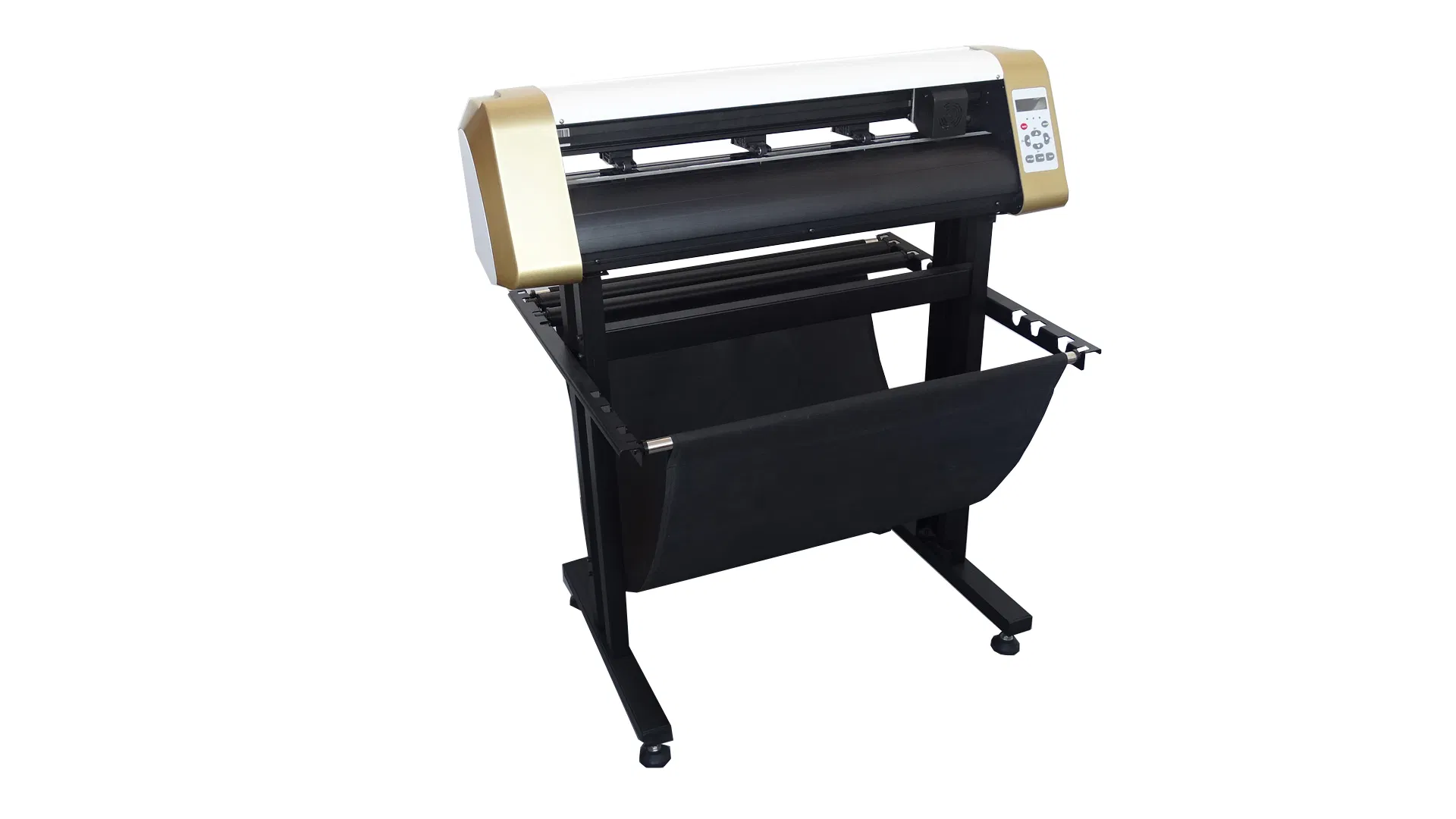

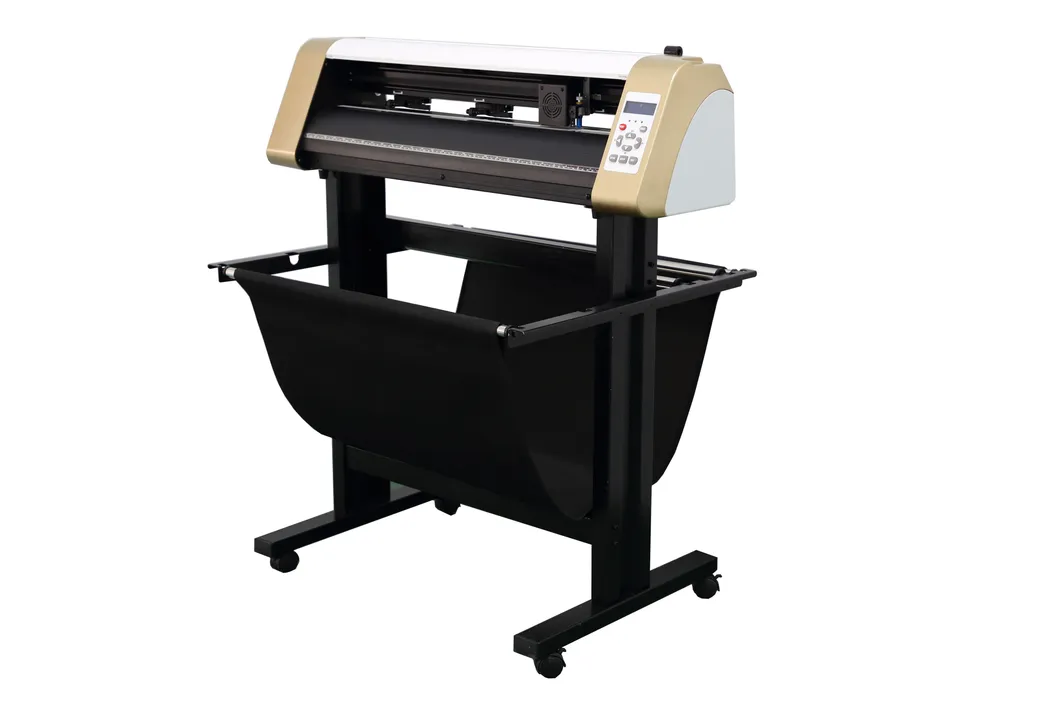

Newfuture 720mm Servo System Automatic Vinyl Contour Cutting Plotter
High-precision contour cutting solution powered by advanced Servo motor technology.
Key Features
Long Distance Tracking

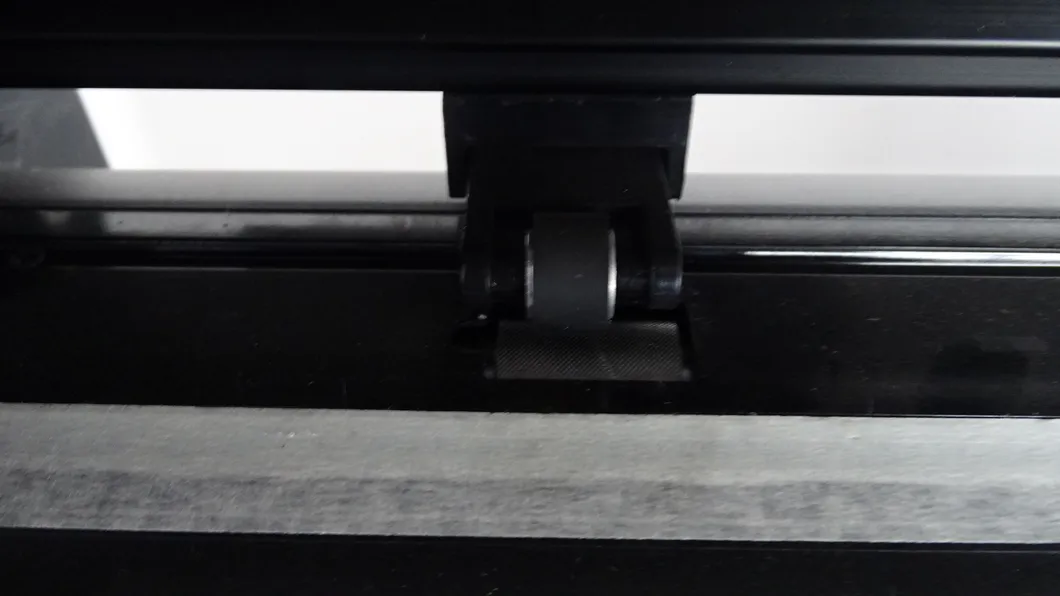

Strong structure and high-quality grit rollers ensure precise long-distance tracking.
Motor & Driver
High performance SERVO motor drive system (Step motor also supported).

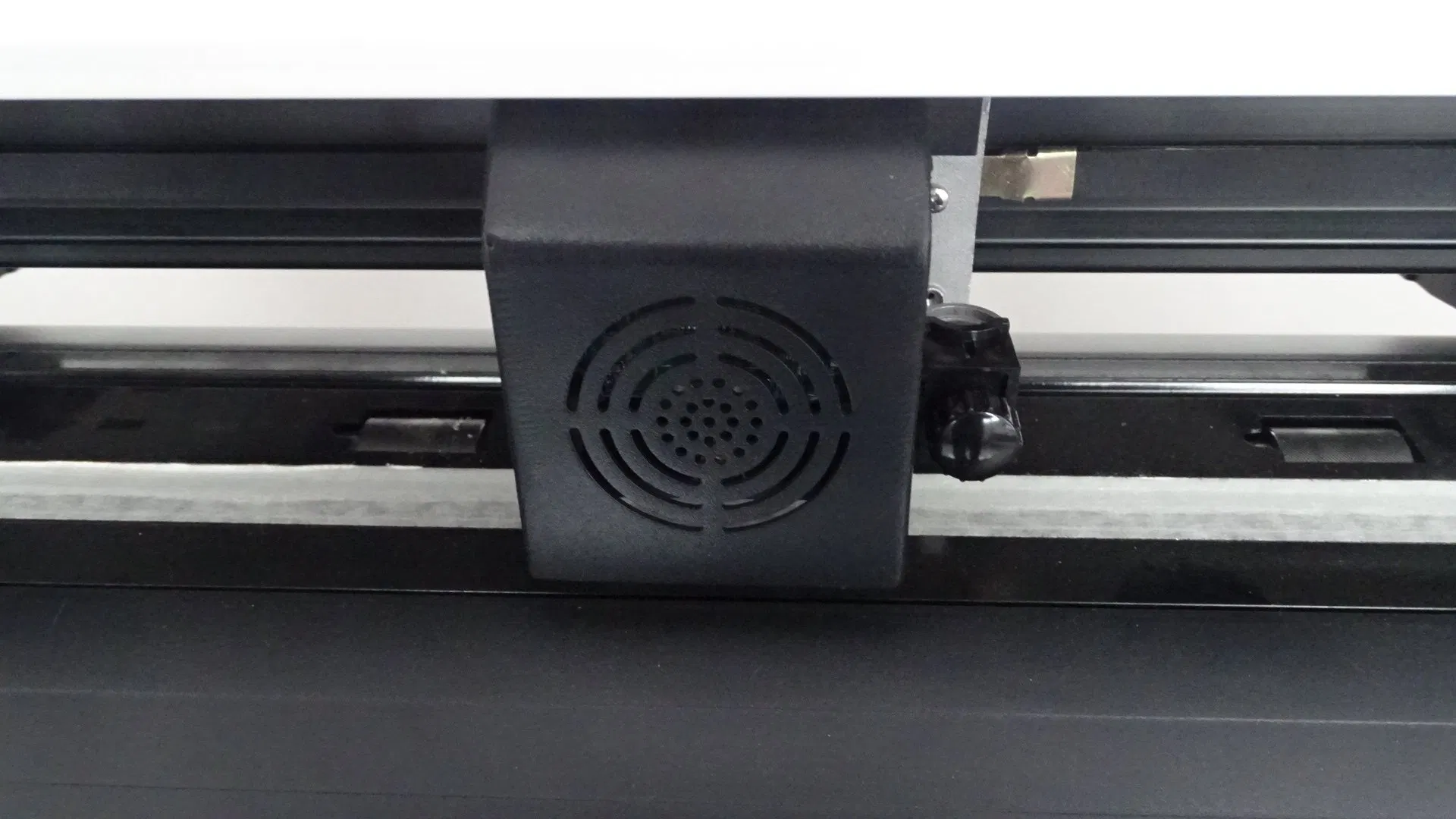

Cutting Head & Carriage
4-wheel cutting head mounted on a durable cast-iron aluminum carriage.
Premium Construction
Sturdy aluminum alloy body paired with clean ABS end caps.
Operational Speed & Force
Variable speed ranging from 10 to 1200mm/s, with adjustable force from 20 to 1000g.
Automatic Contour Cut
ARMS mainboard supports automatic contour cutting with Multiple Marks (configured via Signmaster software).
Core Components
16M CPU, 0.0254mm/pulse mechanical resolution, steel axis main roller, and integrative pinch holder.
Strong Floor Stand
Shipped with a solid iron floor stand equipped with a built-in media holder.
Technical Data
| Model / Item | AS-720 | AS-1350 |
|---|---|---|
| Max Feeding Width | 720mm | 1350mm |
| Max Cutting Width | 630mm | 1260mm |
| Accuracy | +/-0.01mm | |
| Interface | USB / Offline USB / RS232 | |
| Drive | Servo motor | |
| Power Consumption | <100W | |
| Working Temperature | 5 - 35 degrees Centigrade | |
Product Gallery
Shipment Details
- TNT / DHL / UPS: Provided for samples, offering a convenient Door-to-Door shipping service.
- Batch Machines: Shipments are processed via Seaway (supporting both FCL and LCL container loads).
- Flexible Arrangements: We are equipped to arrange shipping, but buyer-nominated shipping agents are also fully accepted.
- Delivery Timeframes: 3 to 7 days for sample units; 10 to 20 days for batch production orders.
Payment Options
- Accepted Methods: We accept payments via T/T, Western Union, and L/C (contingent upon overall order value).
- Sight L/C terms: L/C at sight is fully acceptable for transactions exceeding a value of USD 20,000.00.
Frequently Asked Questions (FAQ)
Q What are the main differences between the AS-720 and AS-1350 models?
The primary differences are the feeding and cutting capacities. The AS-720 has a maximum feeding width of 720mm and a maximum cutting width of 630mm. The AS-1350 model accommodates a maximum feeding width of 1350mm and a maximum cutting width of 1260mm.
Q What type of motor system drives the vinyl cutting plotter?
The plotter utilizes a high-performance Servo motor and driver system, which supports cutting speeds from 10 to 1200mm/s and a cutting force range of 20 to 1000g.
Q How does the automatic contour cutting feature work?
The system features an ARMS mainboard supporting automatic contour cutting with Multiple Marks. This can be configured and managed easily using compatible Signmaster software.
Q What connection interfaces does this cutting plotter support?
The cutting plotter features multiple interfaces for versatile connectivity, including USB, Offline USB, and RS232 serial connection options.
Q What are the shipping options and estimated delivery times?
Samples are shipped via door-to-door courier services (TNT/DHL/UPS) with a delivery time of 3-7 days. Bulk orders are shipped via sea (FCL/LCL) and generally take between 10 to 20 days.
Q What are the accepted payment methods for purchasing?
We accept T/T, Western Union, and Letter of Credit (L/C). For orders exceeding USD 20,000.00, a Sight L/C option is also accepted.
