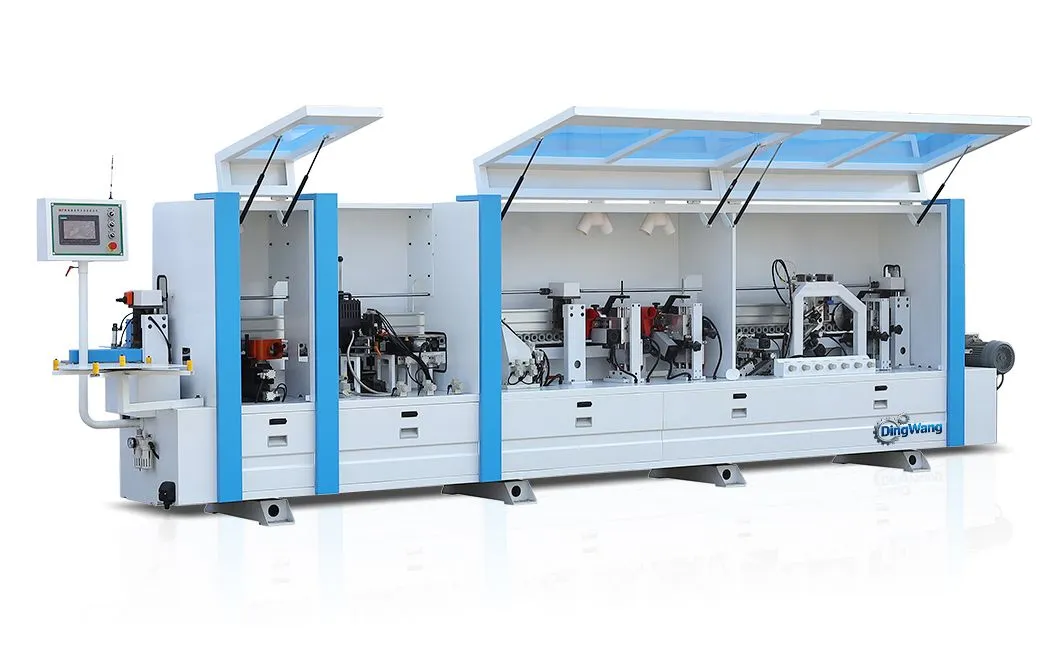

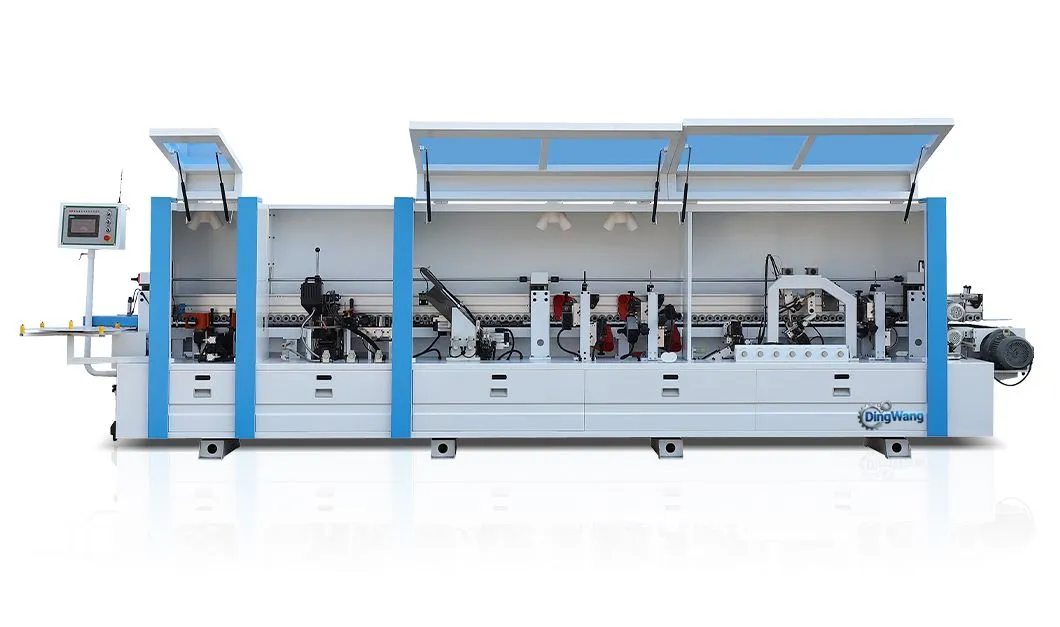

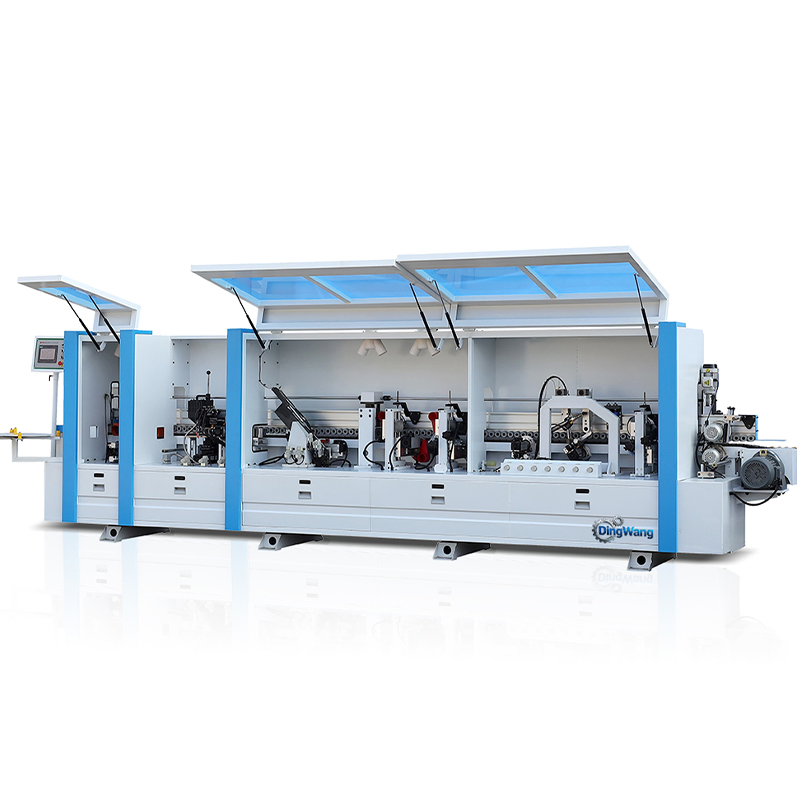

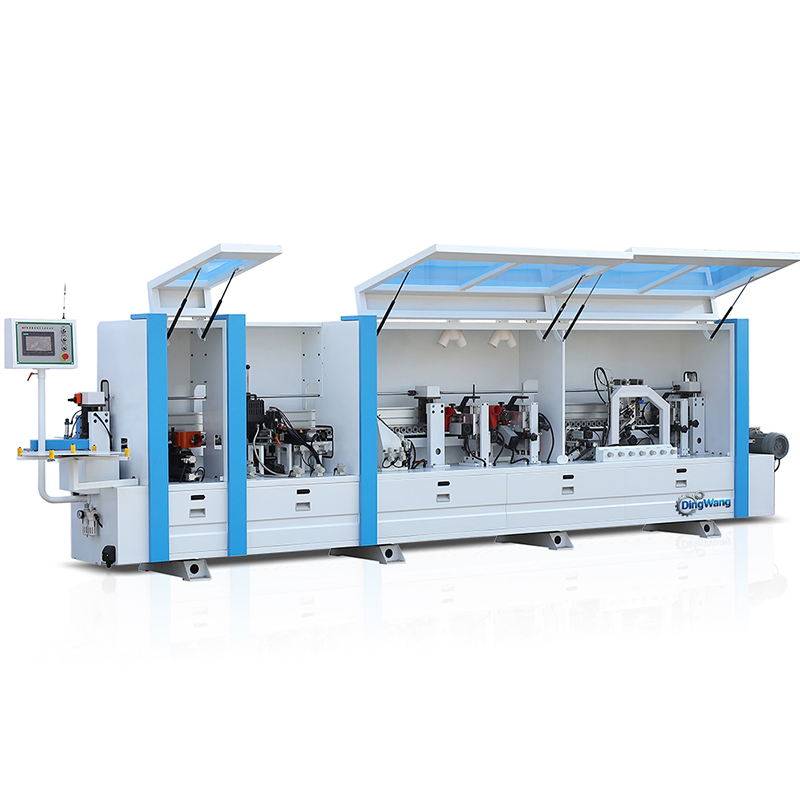

Professional Cabinet Edge Sealing Machine with Pre-Milling Feature Efficient Contour Tracking Machine for Seamless Edge Sealing Woodworking Edge Bandermachinery
Product Description
Basic Info
Model NO.
DW450HG
Type
Linear Edge Banding Machine
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
18/20/24m/Min
Certification
CE, ISO, FDA
Panel Thickness
8-50mm
Min.length panel
50mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
After-sales Service
Online Services and Video Services
Total Machine Power
12.43kw
Working Air Pressure
0.8MPa
Voltage
220V/380V/415V
Weight
1800kg
Transport Package
Stretch Film or Wooden Packaging
Specification
6000*900*1600mm
Origin
China
HS Code
8465990000
Packaging & Delivery
Package Size
600.00cm * 90.00cm * 160.00cm
Package Gross Weight
1900.000kg
Automatic Edge Banding Machine
Our high-performance edge-banding machine adopts advanced technology and robust steel plate design, high-quality accessories, ensuring the durability and stability of the equipment, perfect trimming effect. Encoder control operation is simple, low maintenance rate. It is suitable for the whole house custom edging, wardrobe edging, cabinet edging, PVC edging and wooden door edging can show excellent performance.

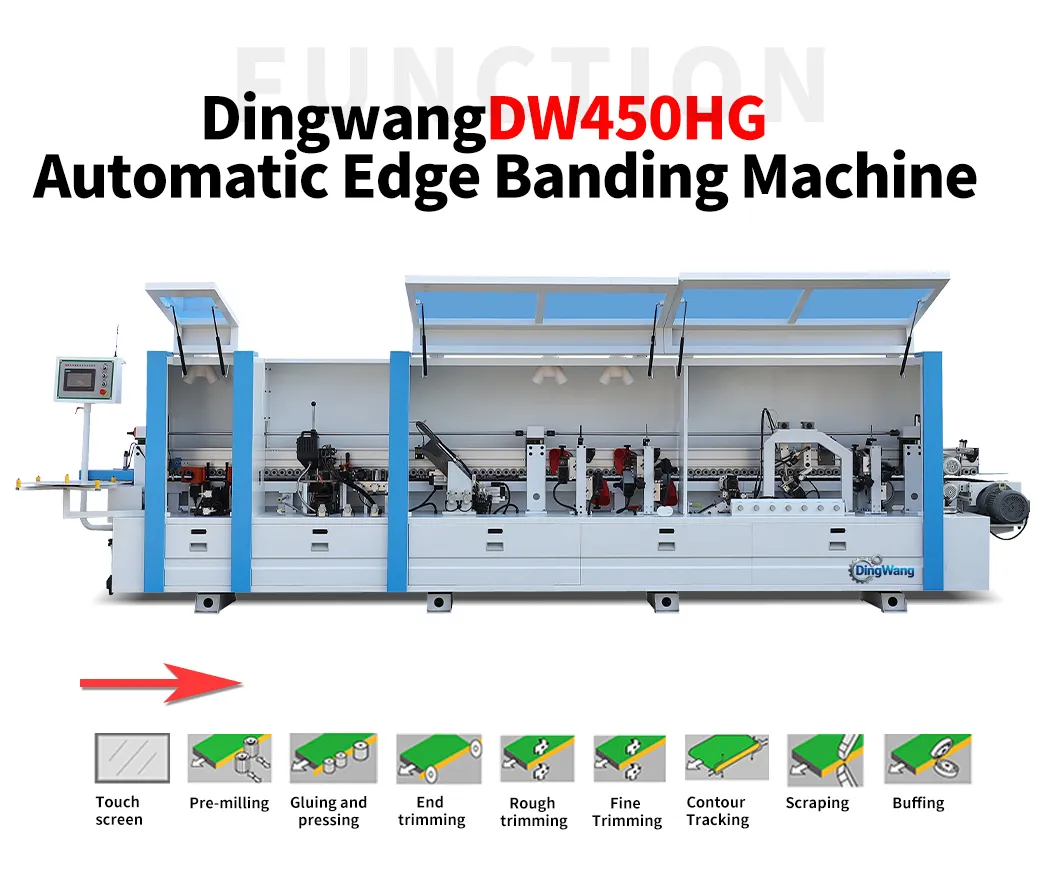

DW450HG: 8 Exceptional Functions
1. Pre-milling
2. Gluing and pressing
3. End trimming
4. Rough trimming
5. Fine trimming
6. Contour tracking
7. Scraping
8. Buffing
Equipment Specifications
| Equipment Model | DW450HG | Total Power | 12.43KW |
| Equipment size | 6000*900*1600MM | Power of End Trimming Motor | 0.55KW*2 |
| Weight | 1800KG | Power of Trimming Motor | 0.55KW*4 |
| Working Air Pressure | 0.8MPA | Power of Pre-milling Motor | 1.8KW*2 |
| Minimum Machining Length | 70MM | Power of Conveyor Motor | 2.2KW |
| Minimum Machining Width | 45MM | Power of Copying Motor | 0.3KW*2 |
| Processing Thickness | 10-55MM | Heating Power of Glue Tank | 1.8KW |
| Edge Band Width | 12-60MM | Power of Lifting Motor | 0.37KW |
| Edge Band Thickness | 0.5-3MM | Power of Buffing Motor | 0.18KW*2 |
| Running Speed | 18/20/24M/MIN | Preheating power of Edge Banding | 0.2KW |
Product Features
High-Rigidity Structure Design
This machine adopts a thickened body surface and thickened lining plate. The machine surface is processed by a gantry milling machine to ensure the firmness and stability of the equipment. Adopts aluminum alloy pressure beam, controlled by an encoder throughout the machine, and can be customized with three-speed regulation.

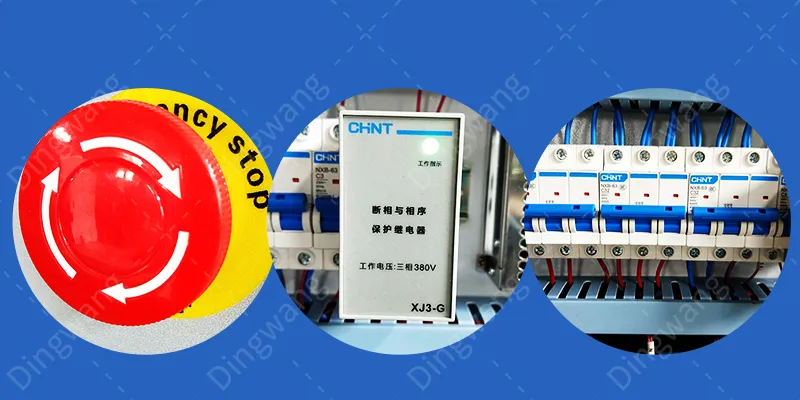

Function protection humanized function design
Emergency stop switch: The front and back are set for easy touch.
Phase sequence protection: Protective equipment circuit.
Earth leakage protection: Protect equipment and personnel.

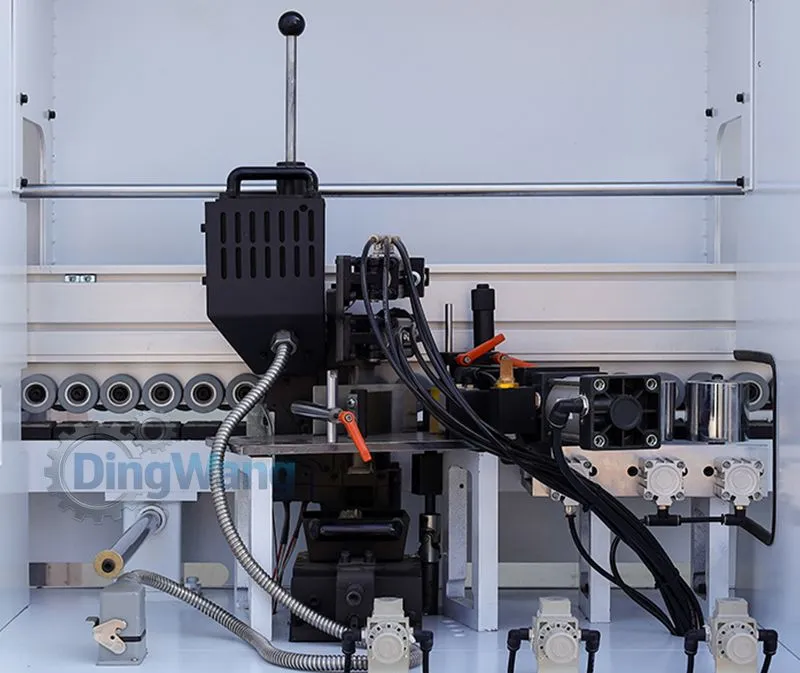

PUR replaceable two-in-one gluing pot
- No glue line during gluing, achieving seamless edge banding.
- Can use PUR granular glue or EVA granular glue.
- Adopts quick-change glue hopper technology, allowing fast replacement with another hopper. Multiple hoppers can be used in combination to achieve the function of a double gluing pot.

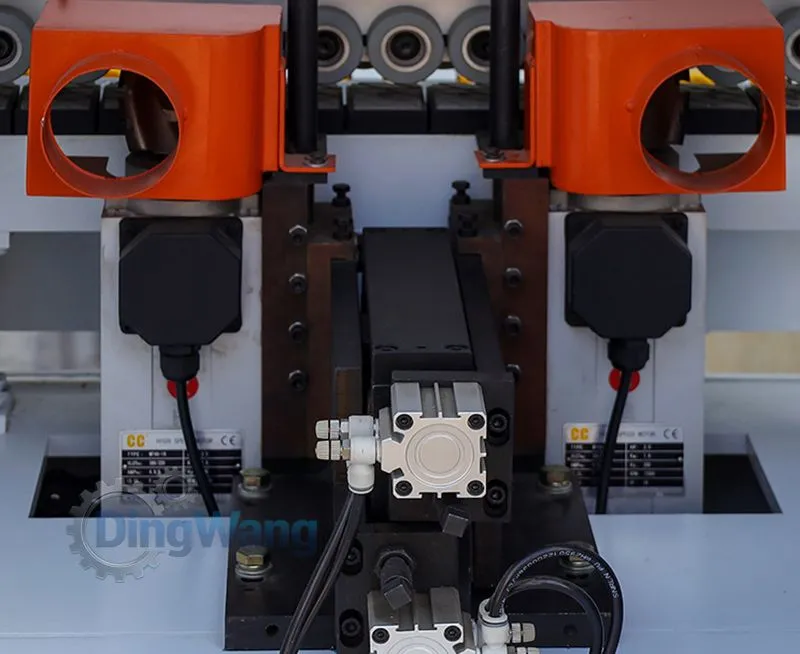

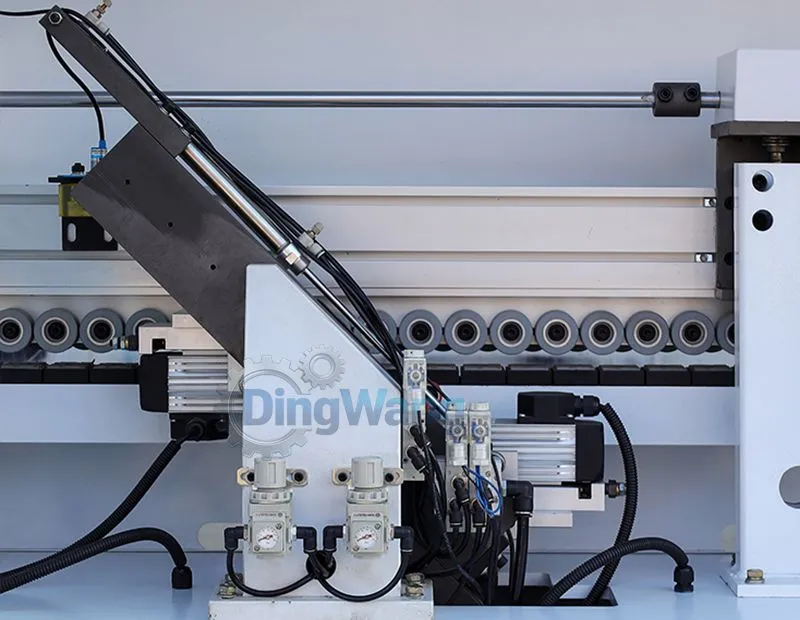

End Trimming Function
The edge trimming function of the edge banding machine uses front and rear trimming cutters to quickly and accurately cut off the parts of the edge banding strip that exceed the board at both ends, ensuring that the edge banding strip is flush with the end face of the board. The cutters can automatically adjust the position according to the length of the board to achieve efficient and precise cutting, providing a standard end face for subsequent processing and improving the overall precision and aesthetics of edge banding.

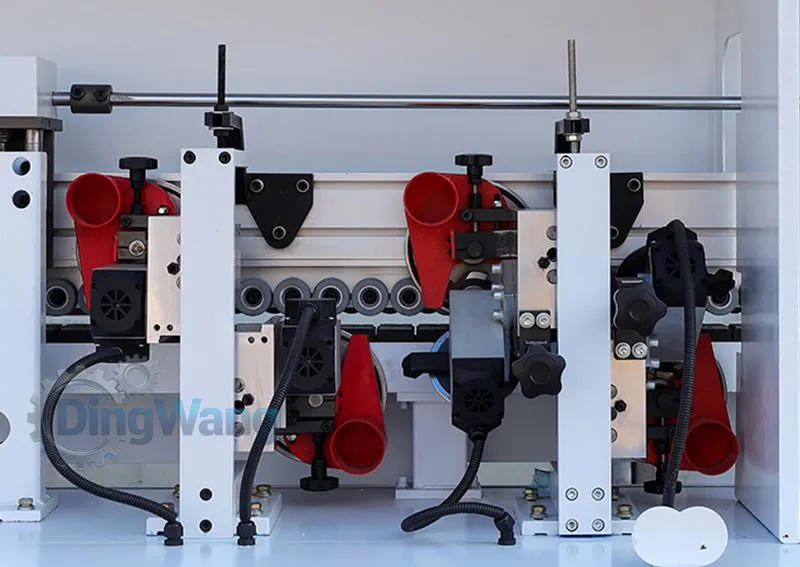

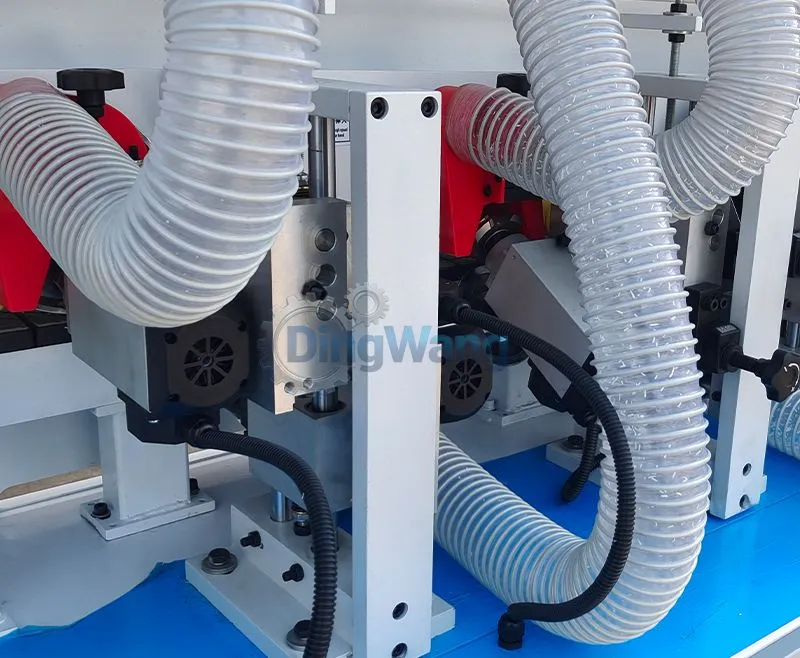

Rough Trimming Function
It uses rough trimming cutters to quickly cut off the excess edge banding on the plate edges, making the edge banding flush with the plate, quickly outlining the basic shape of the edge banding, and improving production efficiency. At the same time, the cutter parameters can be flexibly adjusted to adapt to different plates and edge banding, laying a good foundation for the subsequent fine trimming process and ensuring firm and beautiful edge banding.
Fine Trimming Function
The edge banding machine's trimming knife, through numerical control programming and servo drive, performs high-speed milling on the edge banding strip according to preset parameters. It can stably machine standard arc contours on different plates, improving product durability and appearance texture.

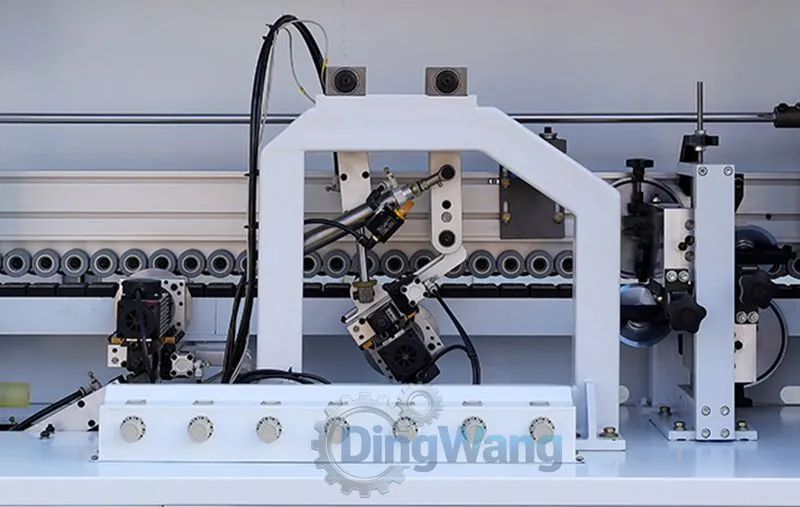

Copying Tracking
Carry out smooth edge trimming for the right-angle joints of edge banding to make the interfaces smooth and delicate, thereby improving the aesthetic appearance.
Diamond Double-Blade Pre-Milling
The pre-milling function of the edge banding machine uses two sets of high-speed rotating milling cutters to quickly remove burrs, stains and uneven parts on the edge banding surface of the board, and precisely mill a standard plane. It provides a clean and flat working surface for subsequent edge banding, ensuring that the edge banding strip fits tightly and improving the overall edge banding quality.
Scraping Function
The edge banding machine's edge scraping function uses a specially designed scraper to remove slight protrusions and tool marks remaining on the edge banding strip after trimming with minimal cutting amount. Through precise control of angle and pressure, it quickly trims the edge to make the surface of the edge banding strip smoother, laying the foundation for the subsequent polishing process and enhancing the overall texture and aesthetics of edge banding.

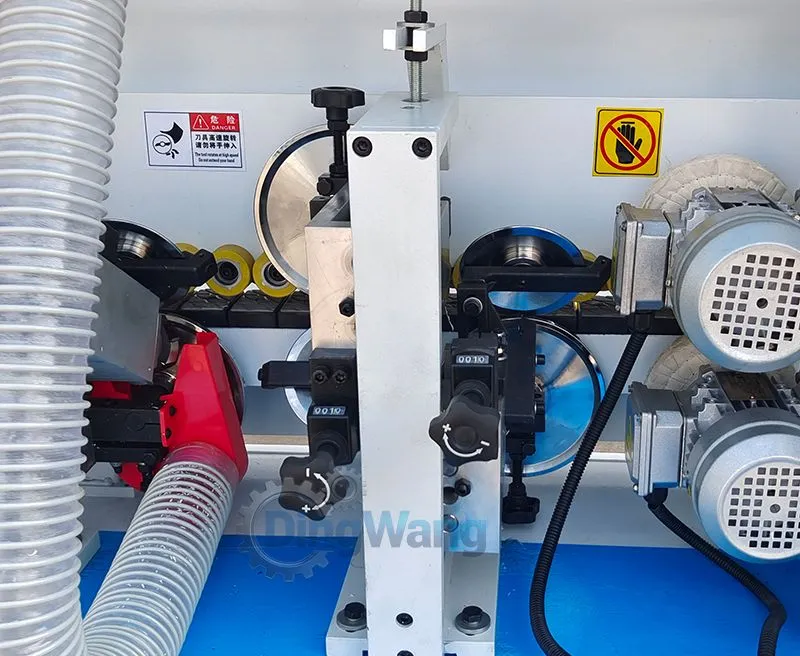

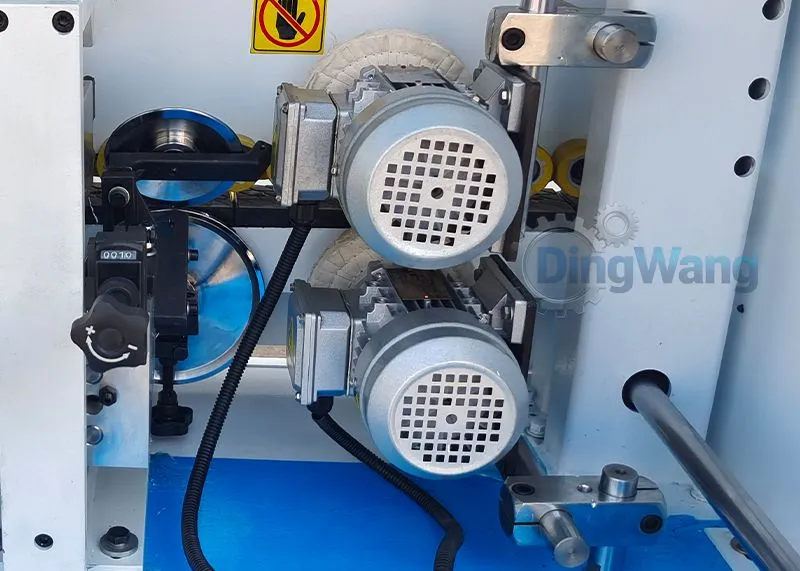

Buffing Function
The polishing function of the edge banding machine utilizes a high-speed rotating polishing wheel to finely grind the surface of the edge banding strip. Through the heat generated by uniform friction and the action of polishing media, it quickly eliminates subtle traces remaining after edge scraping, giving the edge banding strip a bright and smooth surface, which significantly enhances the product's aesthetics and quality.

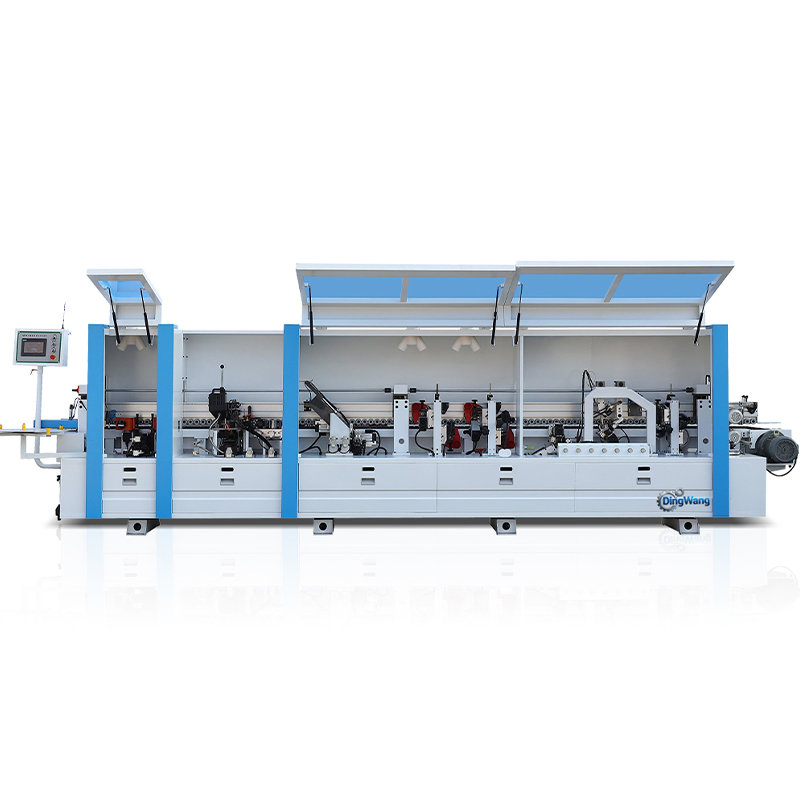

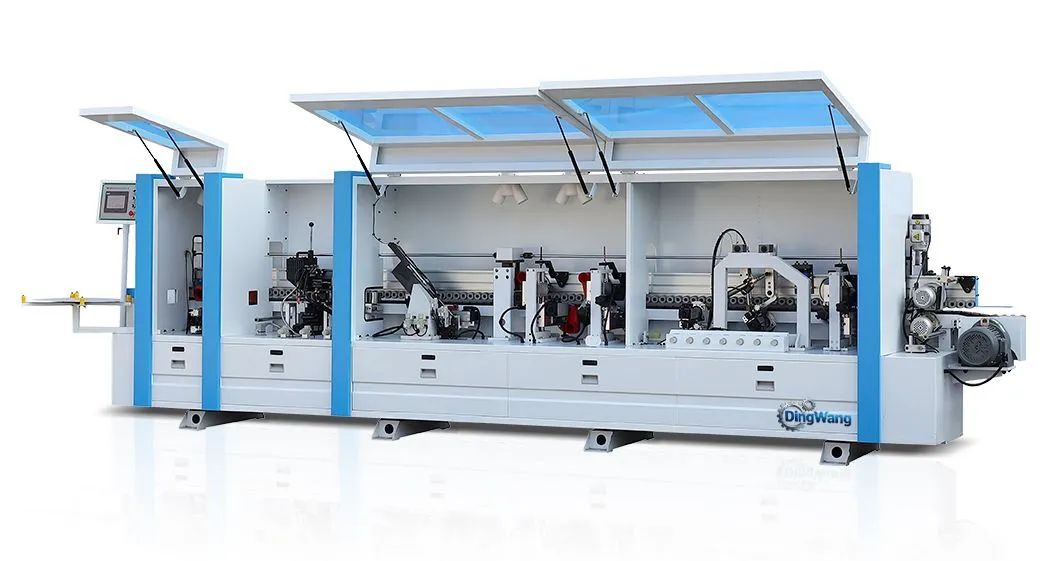

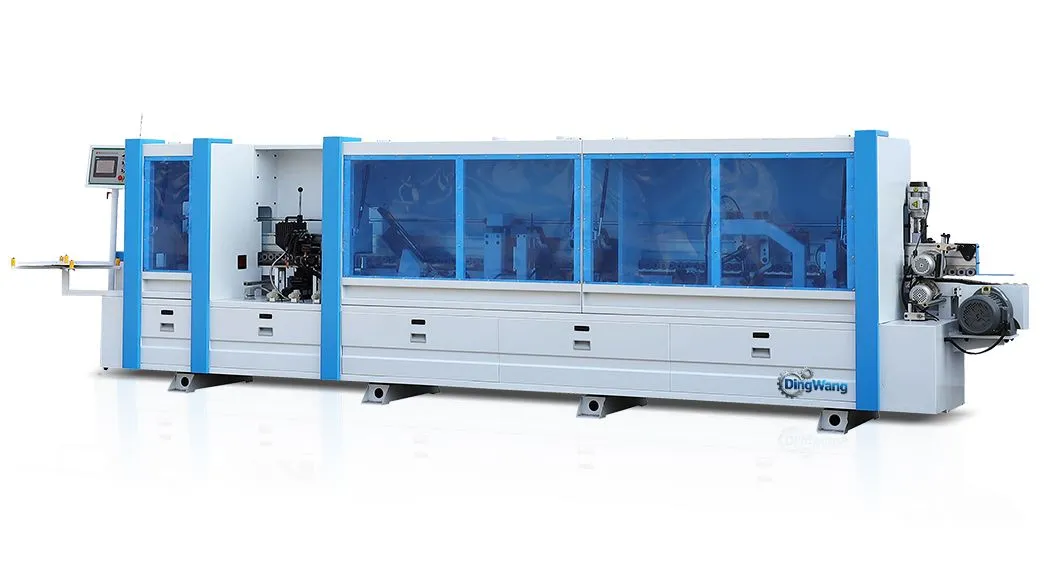

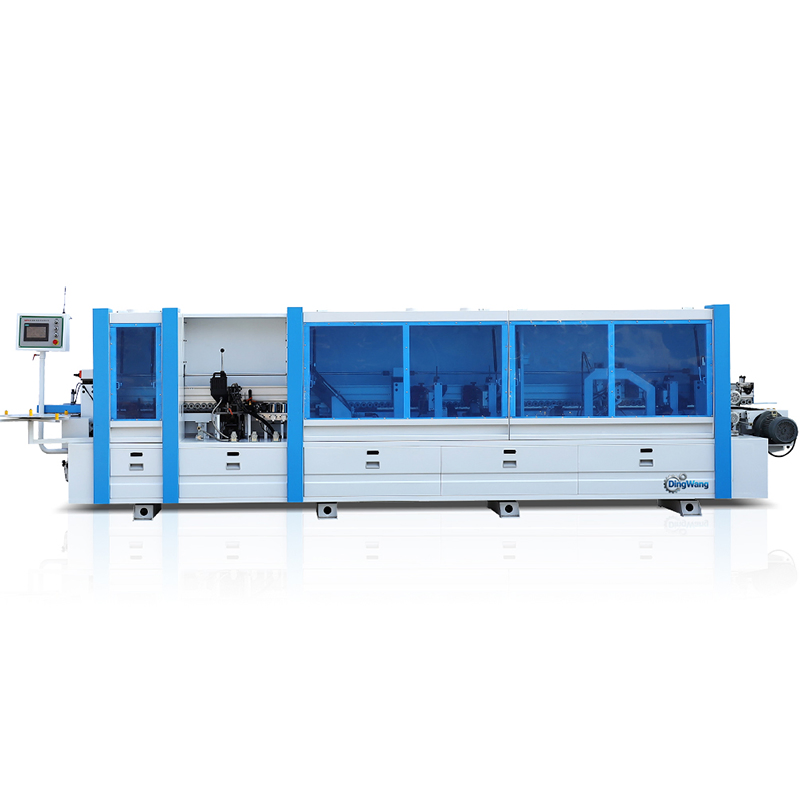

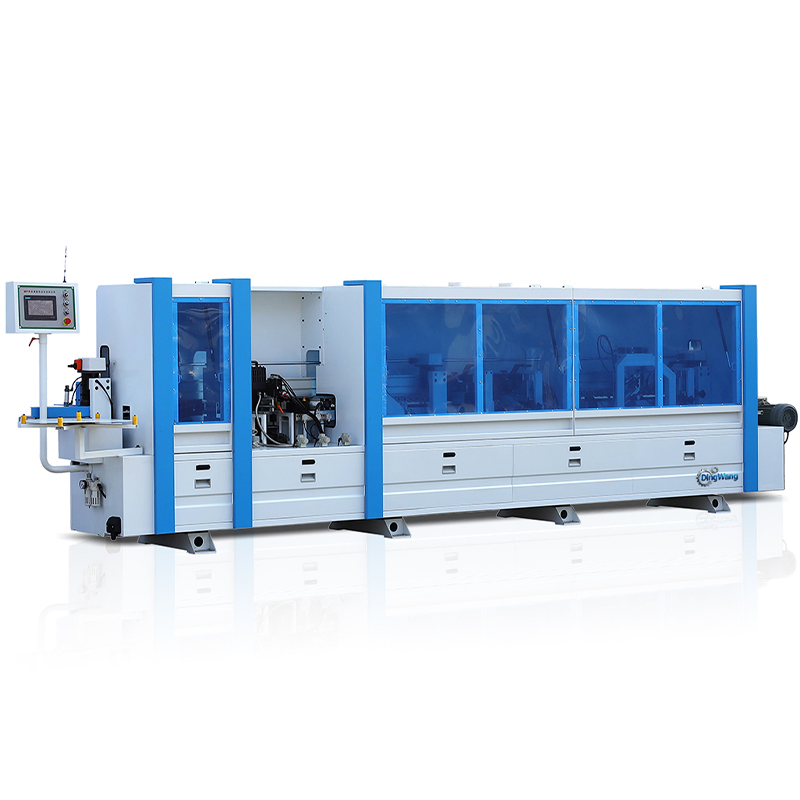

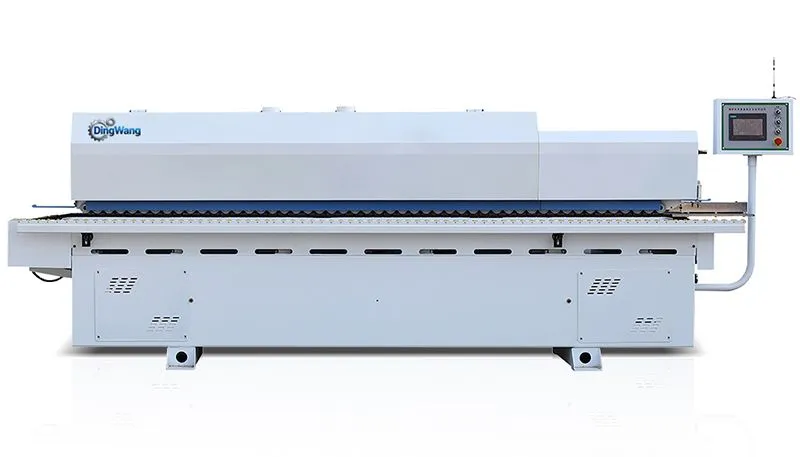

Panoramic Display

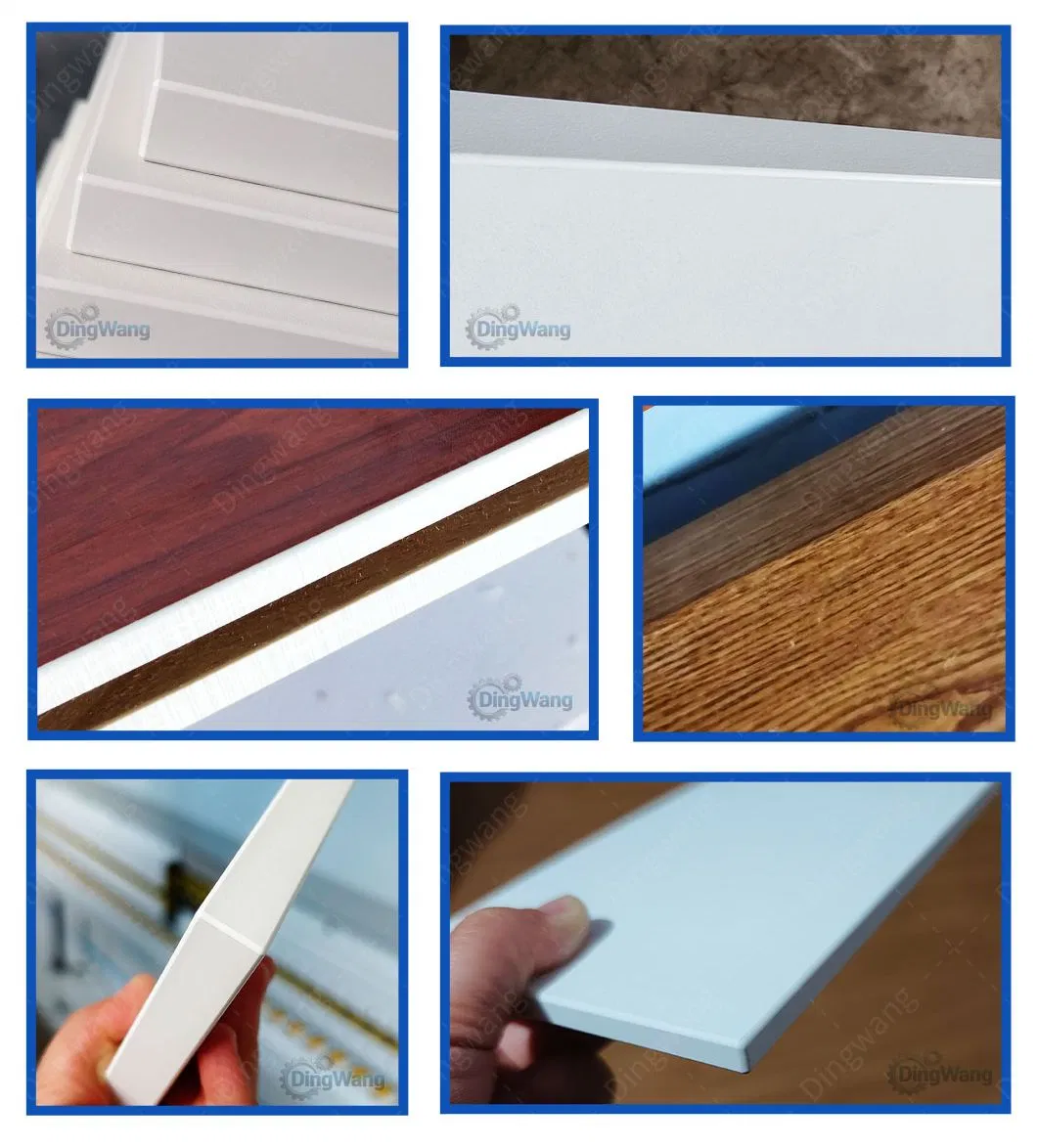

Edge Sealing Effect

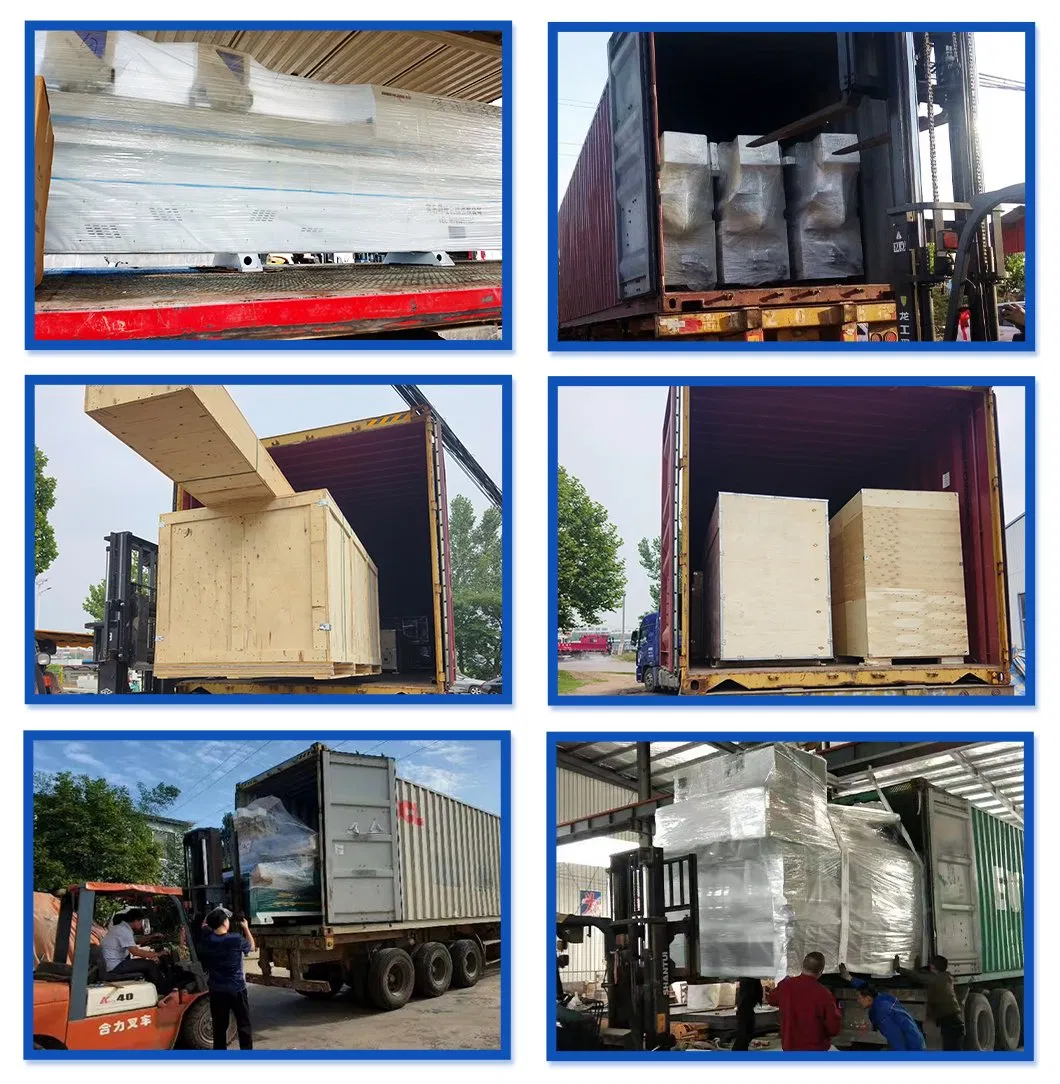

Factory Shipment
Services
1. Delivery and Lead Time
Machine will be properly packed and loaded in a container. Multiple loading is applied to save space, or a wooden carton is sealed for secure transportation.
2. Warranty
Machine warranty is two years under normal using and maintenance conditions. If any problems arise, spare parts will be provided free of charge. Out-of-warranty technical support and maintenance assistance are available at all times.
3. Technical Support
Manual and video illustrations of the machine will be provided 24 hours online. Prompt technical support is available via digital channels to ensure smooth operations.
