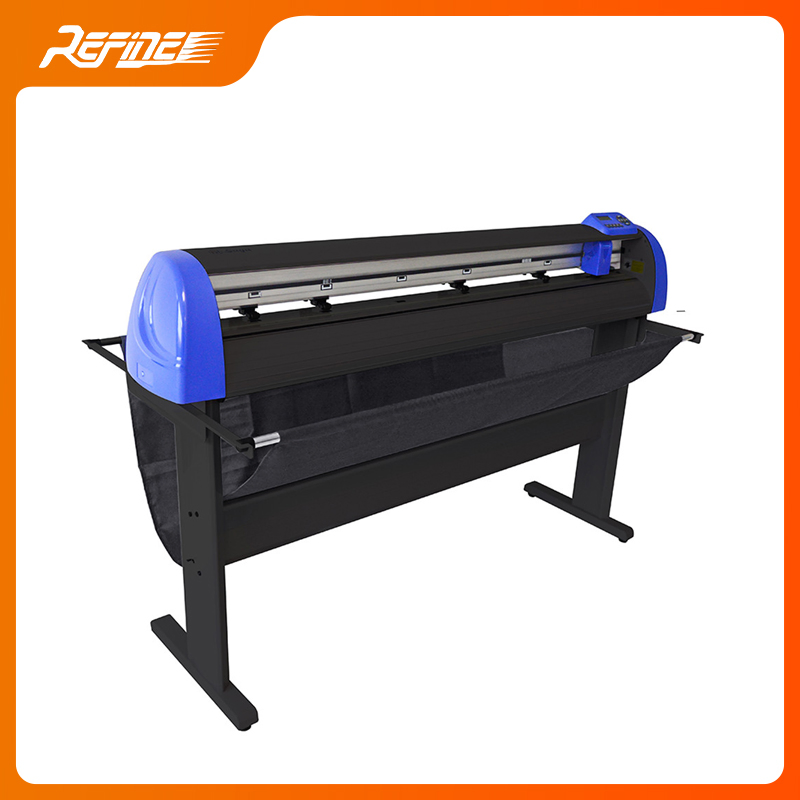

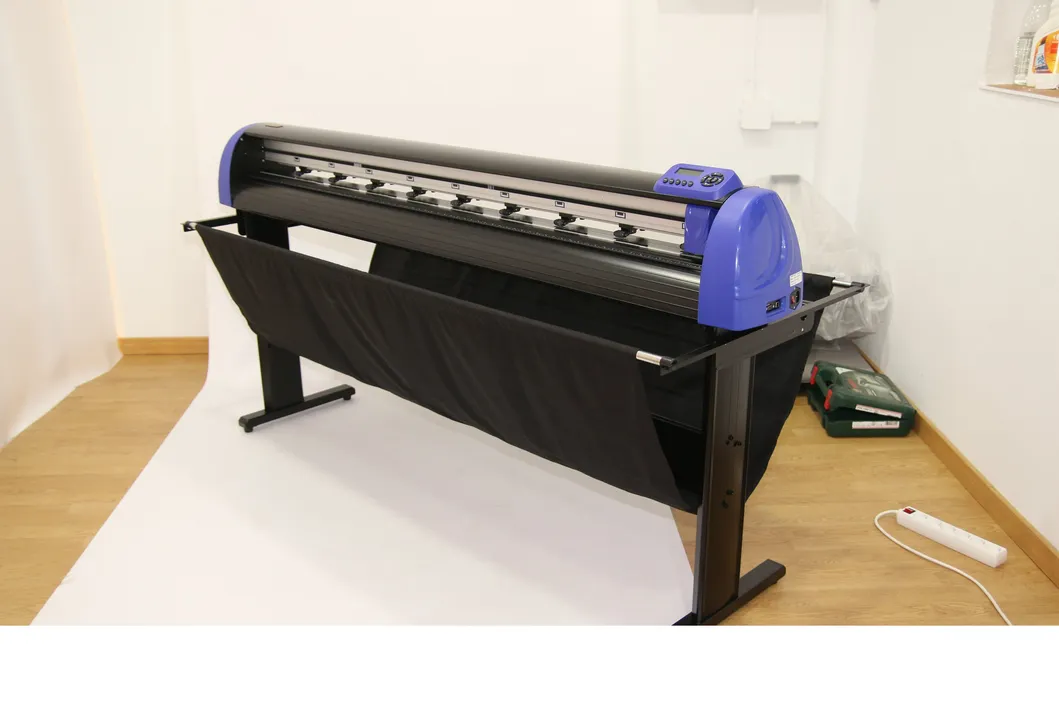

1750mm Arms Servo Cutting Plotter - Precision Automatic Contour Cutting Plotter
Product Description
Basic Information
Model NO.
ARMS-1750 NEW
Type
Living Paper Cutting Machine
Blade Material
Metal
Computerized
Computerized
Max Cutting Width
68
Contour Type
Automatic
Driver
DC Servo
Interface
Native USB
Transport Package
Export Standard Cartons
Specification
CE
HS Code
8479
Production Capacity
25000PCS/Year
Product Description
Arms Servo Cutting Plotter Automatic Sticker Cutting Machine
The ARMS servo motor is quieter and more efficient than a comparable stepper motor which is part of what makes it a professional's vinyl cutter. Servo motors are faster and more accurate but require more complex drive circuitry and positional feedback. To achieve this, servo motors maintain their torque rating at high speeds because they do not operate at maximum capacity, leaving power in its reserves. In addition to the back lit LCD, the NPC features illuminated buttons for easier reading. The ARMS servo motor makes it faster, quieter, more accurate and able to cut thicker material.
Quality Construction
SERVO ARMS vinyl cutters are constructed to withstand rigorous use and are built tough from the inside out. From the aluminum alloy frame and ABS end caps to the double ball bearing blade holders, it is built to last. MAC and Windows compatible with built in USB interface, the NPC machines are plug-n-play ready.
Tech Information
- The plug-in driver allows cut from Illustrator, Corel Draw, AutoCAD directly

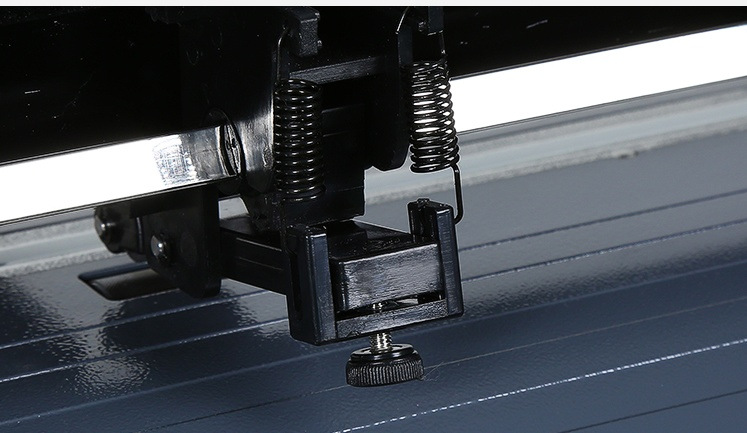

- High force cutting head with 4 wheels
- Strong metal construction, nice ABS sides
- Automatic contour cutting function
- Straight-line Speed: 50-960mm/s
- Curve speed: 0-600mm/s
- Motor & Driver: DC servo
- Motor power: 25watt
- Servo motor speed: 0-3500RPM
- 0-3000RPM time: < 20 MS(idle load); <1200 MS(working)
- Encoder signal: physical 1000line/ round, logical 4000line/round
- Force: 0-750g (3g/step)
- CPU: 64bit DSP 32MFlash
- Mechanical Resolution: 0.01254mm/pulse
- Repeating Precision: 0.082mm
Technical Parameters
| Model Name | ARMS-720NEW | ARMS-1400NEW | ARMS-1800NEW | |
| Maximum Sheet Size | 720mm | 1400mm | 1800mm | |
| Maximum Cutting Size | 630mm | 1260mm | 1680mm | |
| Minimum Cutting Character | About 5mm² | |||
| Mechanical Resolution | 0.02mm | |||
| Repeat Precision | 0.082mm | |||
| Maximum Liner Cutting Speed | 960mm/s | |||
| Maximum Cutting Force | 750g | |||
| Cutting Control System | DC Servo | |||
| Motor Speed | 0-3000RPM | |||
| CPU | 64-DSP | |||
| Package dimensions | 103*35*49CM | 171*35*49CM | 210*40*55CM | |

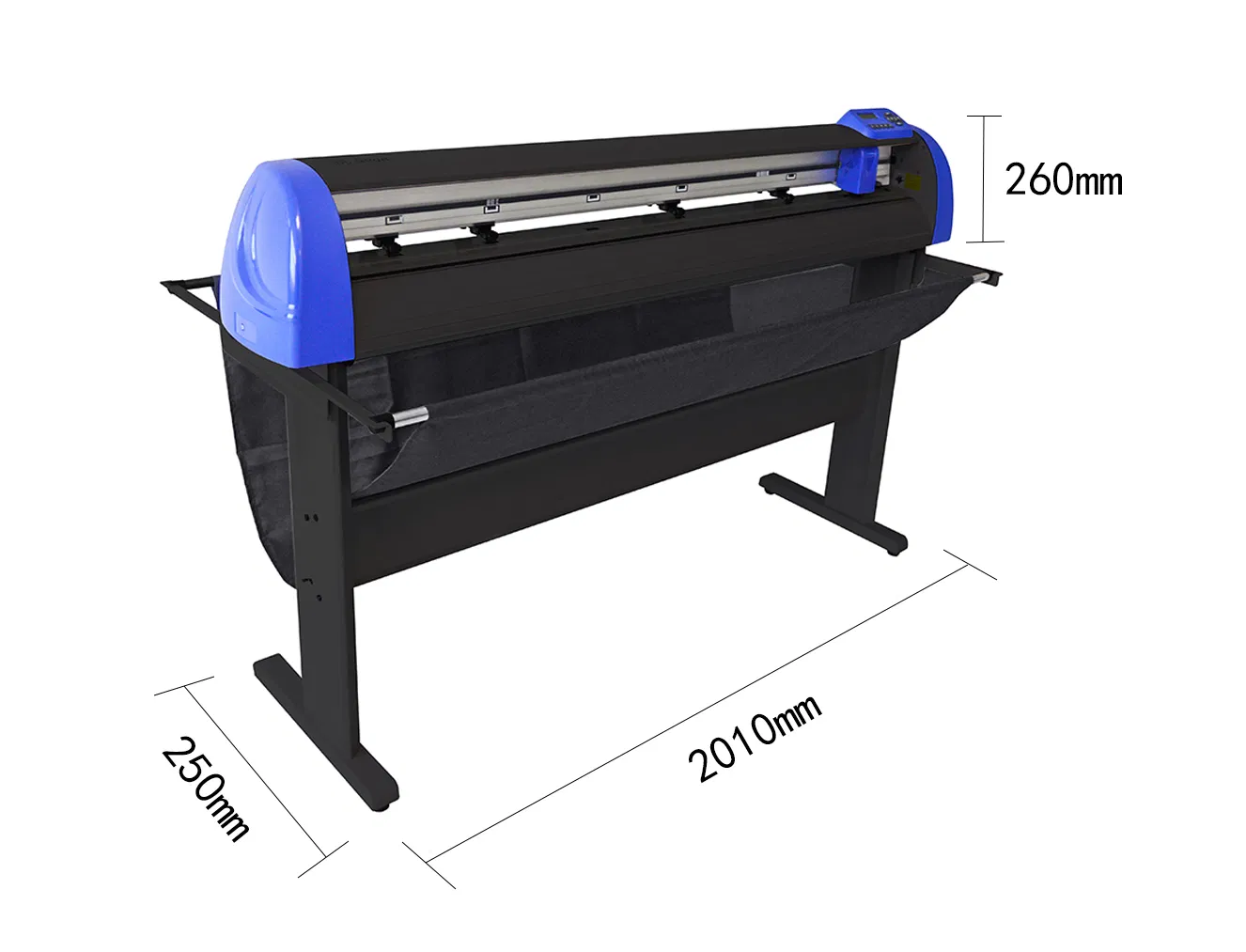

| Actual dimensions | 93*25*26CM | 161*23*28.5CM | 201*23*28.5CM | |
| Gross/Net Weight | 27.8kg/25.0kg | 42.0kg/35.0kg | 68.0kg/47.0kg | |
| Connectivity | USB/RS-232 | |||
| Software & Compatibility | DragonCut, compatible for Windows 7,8,10 (USB direct connection to the computer) Corel Draw/Illustrator Plug-in (SD direct connection to the computer) |
|||
| Power Source | 100V~240V, 50/60Hz | |||
| Power | 150W | |||
| Operation environment | Temperature: +5ºC - +35ºC / 41ºF - 95ºF, Humidity: 30%-75% | |||
| Stand & Pocket | Included | Included | Included | |
Product Gallery
TRUE USB Connectivity
This cutter offers a true USB interface—a premium feature usually found only on significantly higher-priced systems. You can output files directly to your ARMS cutter from popular vector design applications.
Highlight Features
★
Automatic Laser registration for contour cutting function
★
Cutting head with 4 wheels for enhanced stability
★
True USB - send files directly from Adobe applications and vector software
★
Strong metal body with precision ABS sides
★
All-metal moving parts designed for heavy-duty work
★

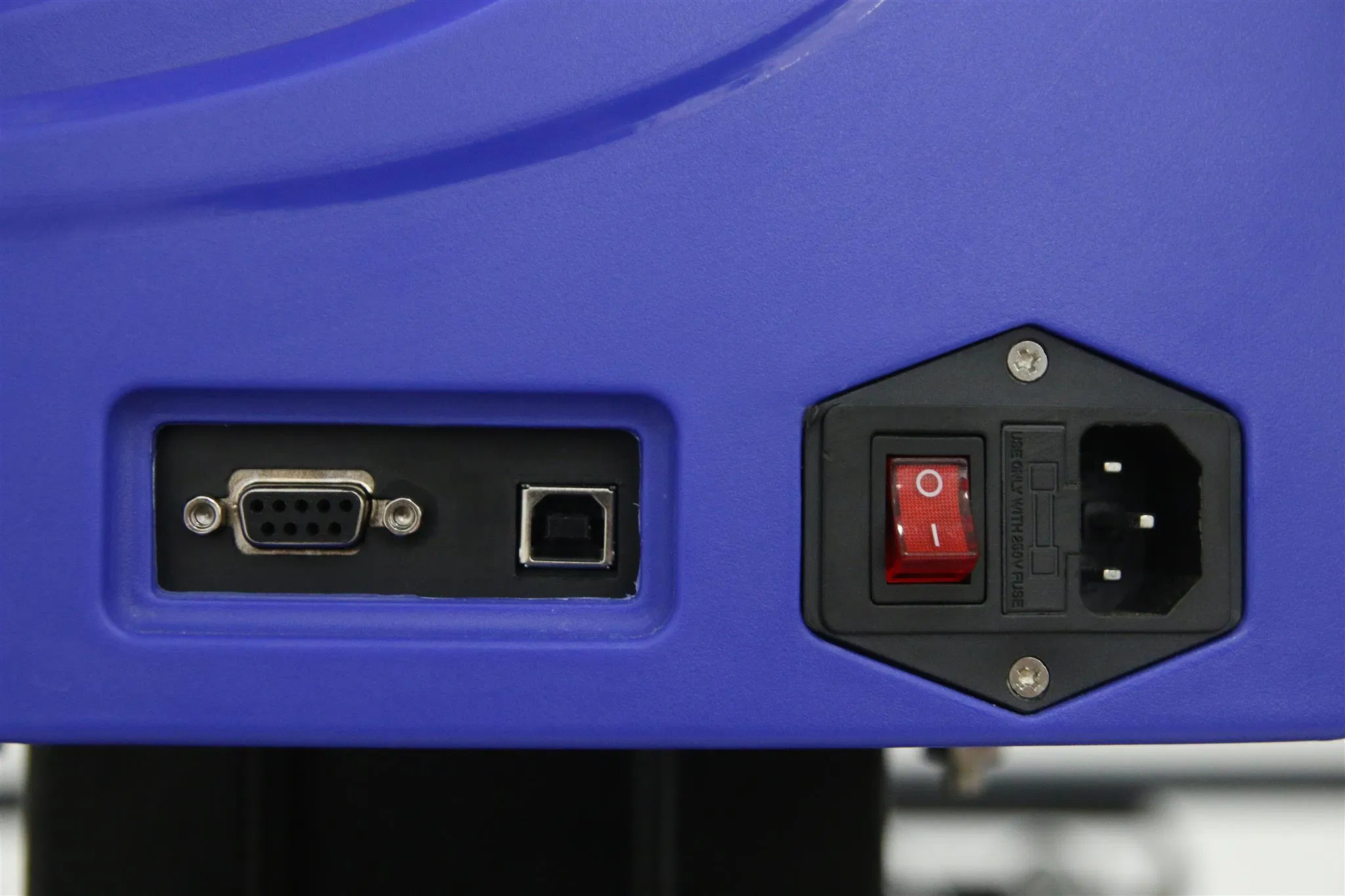

Mac & PC compatible via USB and RS-232 connection
★

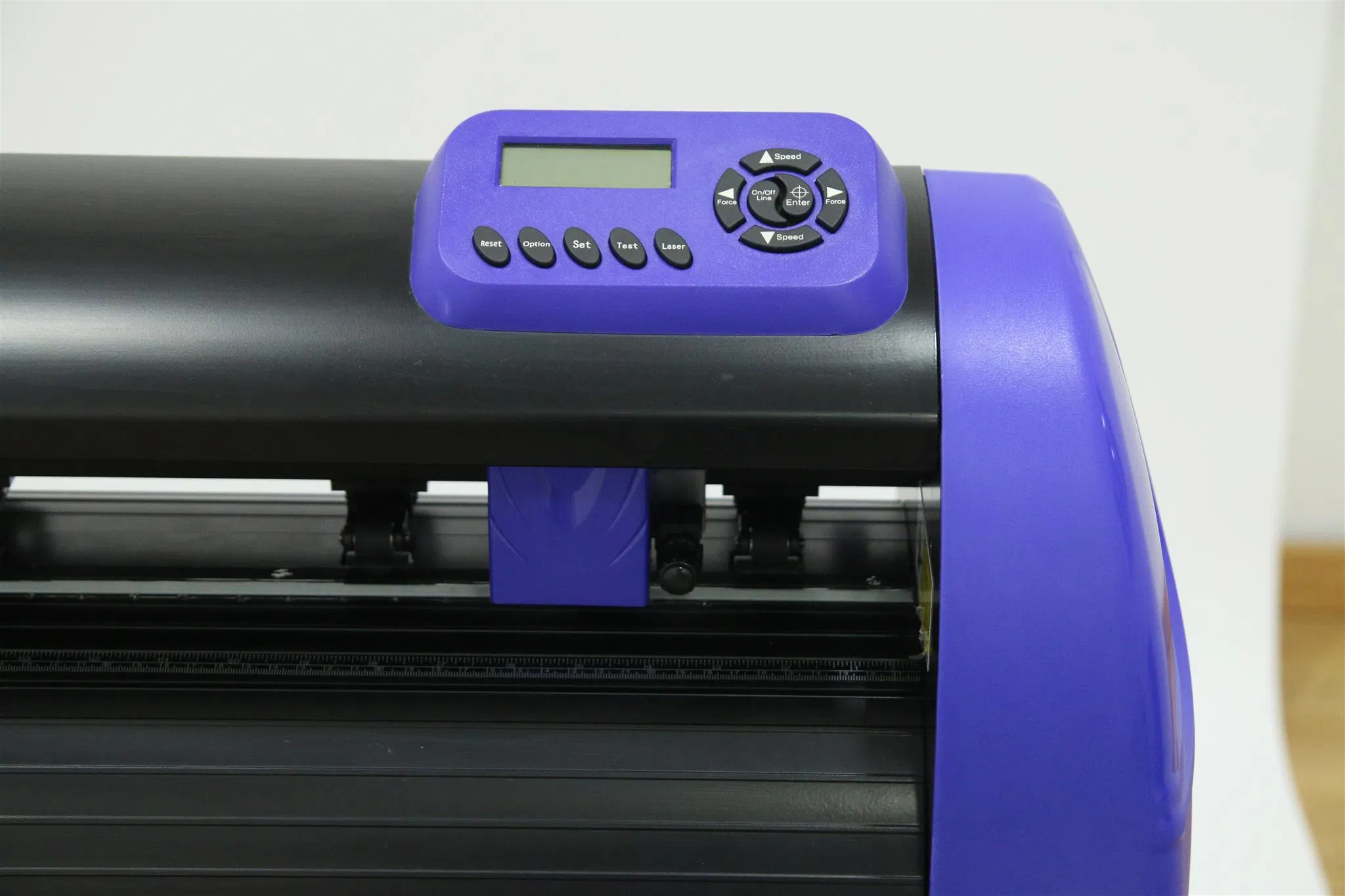

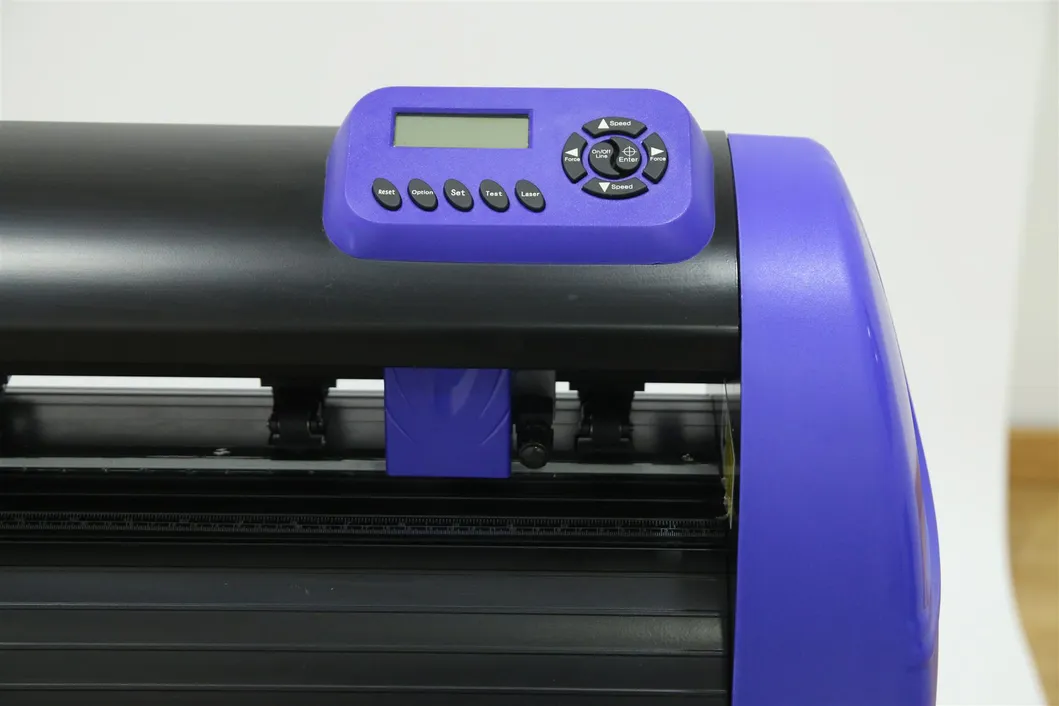

Large backlit LCD display and panel for quick adjustments
★
Plug and Play standard for simple installation
★
Cuts adhesive vinyl, heat transfer vinyl, cardstock, laminates, and reflective materials
★
High-performance servo motor for quiet, accurate operation
Shipment
- TNT/DHL/UPS for samples, Door-to-Door shipping service.
- For batch machines, shipment is effected by Seaway (FCL or LCL).
- We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
- Delivery Time: 3-7 days for samples; 10-20 days for batch goods.
Payment
- We accept T/T, Western Union, L/C (depending on order amount).
- Sight L/C is acceptable if order amount exceeds USD 20,000.00.
Frequently Asked Questions
Q: What is the advantage of using a servo motor in this cutting plotter?
A: The ARMS servo motor is faster, quieter, and more accurate than standard stepper motors. It maintains high torque ratings even at high speeds because it operates below maximum capacity, allowing it to cut thicker materials with ease.
Q: Can I cut designs directly from design software like Adobe Illustrator?
A: Yes. The system offers direct compatibility and plug-in drivers that allow you to cut designs directly from Adobe Illustrator, Corel Draw, AutoCAD, and other software supporting vector graphics.
Q: What types of materials are compatible with this machine?
A: The plotter cuts a wide range of materials including adhesive vinyl, heat transfer vinyl, cardstock, paint mask stencils, laminate, sandblast masks, and both low & high-intensity reflective materials.
Q: Does this cutter support automatic contour cutting?
A: Yes, it features an automatic contour cutting system with automatic laser registration for accurate sticker and decal alignment.
Q: What are the system requirements and compatibility details?
A: It is compatible with both Mac and Windows systems (including Windows 7, 8, and 10). It supports DragonCut software via direct USB connection, as well as Corel Draw and Illustrator plug-ins.
