Cutting Tool Ball Nose and Corner Radius Tungsten Carbide Drill Cutter Endmill End Mill for Complex Contour and 3D Precision Machining
Product Description
Basic Info.
Logo Printing
Without Logo Printing
Size
Customized
Customized
Customized
Type
Cutting Tool
Material
Metal
Certification
CE
Product Name
Carbide End Mill
Keywords
Cutting Tools
Product Description
4-Flute Altin Coated Carbide Square End Mill
Diameter
6 mm
Flute Length
16 mm
Overall Length
57 mm
Number of Flutes
4
Cutting End Type
Square End
Helix Angle
45°
Shank Diameter
6 mm
Substrate Material
Micro-Grain Carbide
Coating Type
Altin
Color
Customized
OEM & ODM Custom
Accept
Sample
Accept
Transport Package
Standard Packaging or Customized
Specification
Standard Specifications or Customized
HS Code
8207
Production Capacity
500000 Pieces/Year
Packaging & Delivery
Package Size
9.50cm * 4.00cm * 1.00cm
Package Gross Weight
0.050kg
Lead Time
2 days (1 - 10 Pieces)
5 days (11 - 100 Pieces)
To be negotiated ( > 100 Pieces)
5 days (11 - 100 Pieces)
To be negotiated ( > 100 Pieces)
Product Description

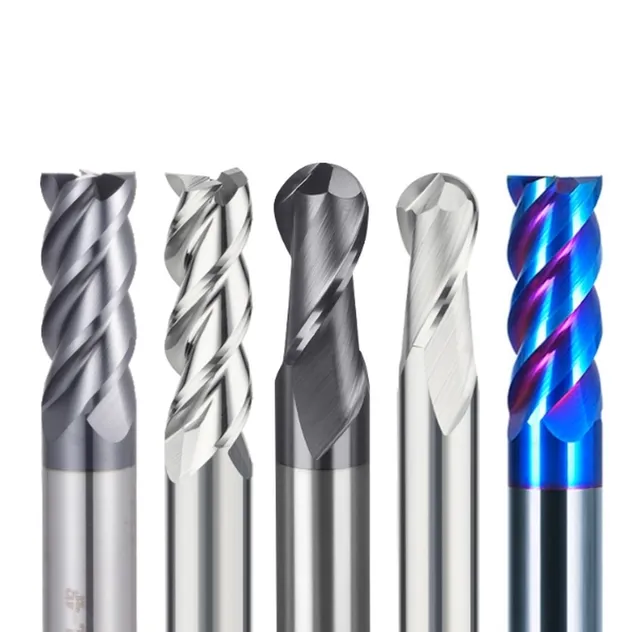

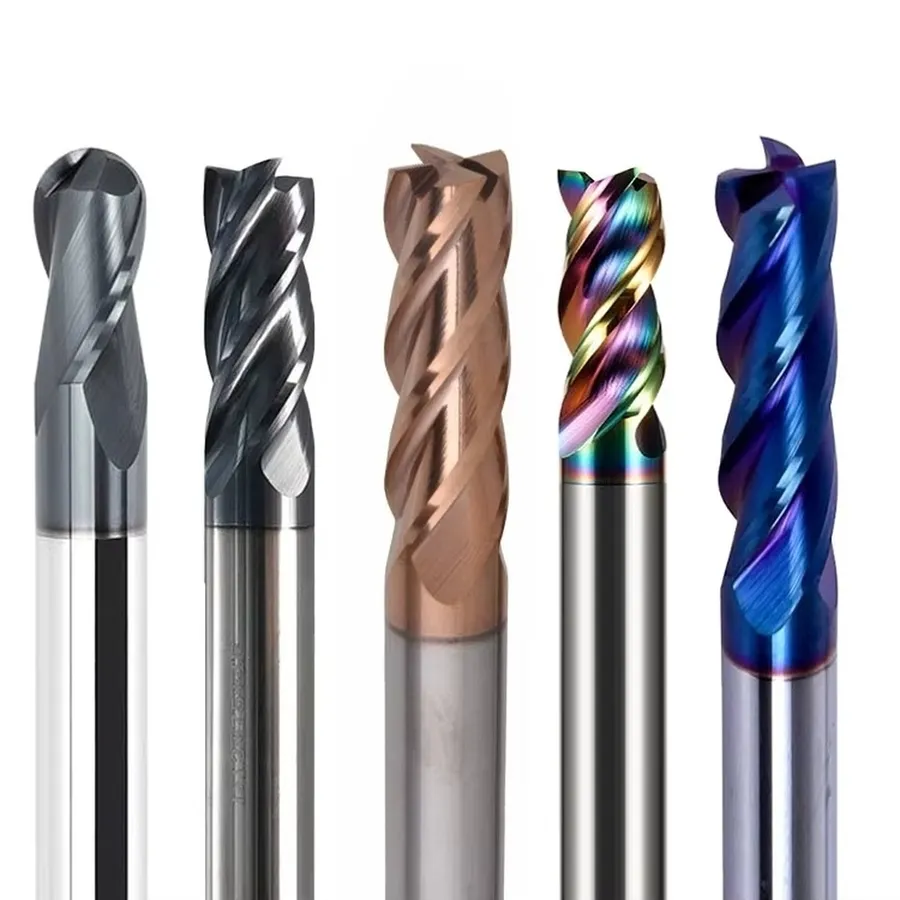

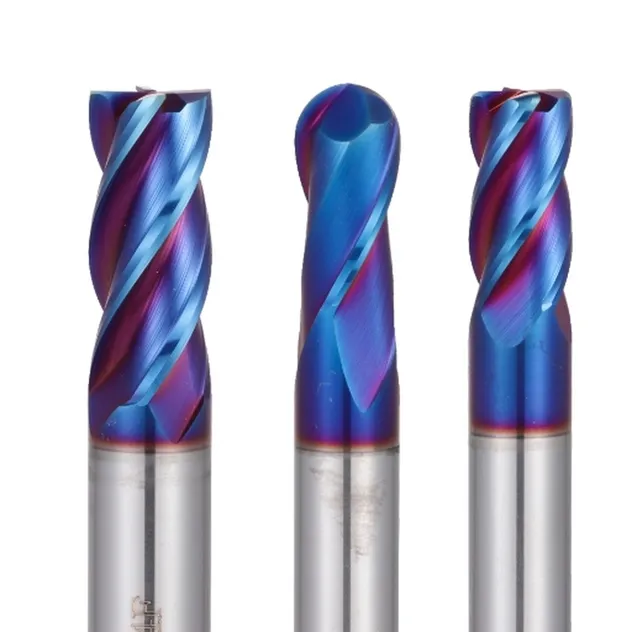

SOLID CARBIDE END MILL
Our solid carbide end mills are engineered for superior performance in a wide range of materials, offering exceptional rigidity and precision for your most demanding CNC milling operations. We have a comprehensive selection of carbide end mill types, including square end mills, ball nose end mills, and corner radius end mills, designed for specific machining tasks and optimal surface finish.

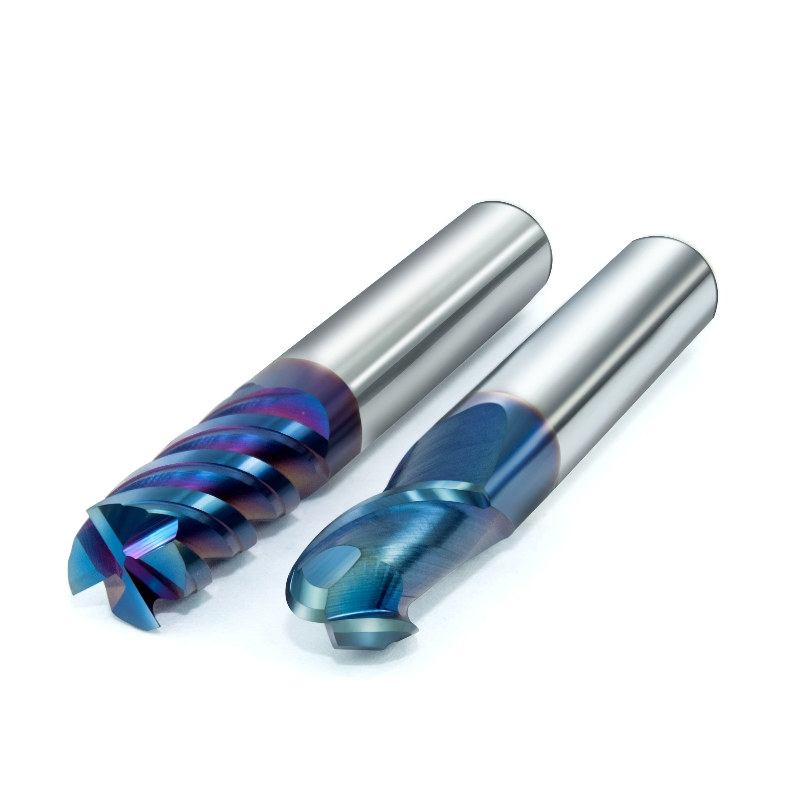

Detailed Photos
Engineered from premium micro-grain solid carbide, our end mills provide maximum rigidity, superior wear resistance, and a significantly longer tool life compared to high-speed steel alternatives. The advanced flute geometry and variable helix design effectively reduce vibration and chatter, enabling smoother high-speed machining and exceptional surface finishes in a wide range of materials, from steel to aluminum.
⚙️ MAIN STRUCTURES
- Shank: Accuracy in diameter is critical for runout and balance.
- Flutes: The number of flutes (2, 3, 4, 5+) affects material removal rate, finish quality, and the tool's ability to clear chips.
- Cutting Edges (Lips): The geometry and sharpness of these edges directly determine cutting efficiency and surface finish.
- End Cutting Edge (Gashing): The center of the end may have a notch or be designed without a center-cutting ability, which is a crucial selection factor.
- Helix Angle: A higher helix angle (e.g., 45°) provides a smoother cut and is better for finishing; a lower angle (e.g., 30°) offers more edge strength for roughing.
- Core: A larger core diameter generally makes the tool stronger but reduces chip space.

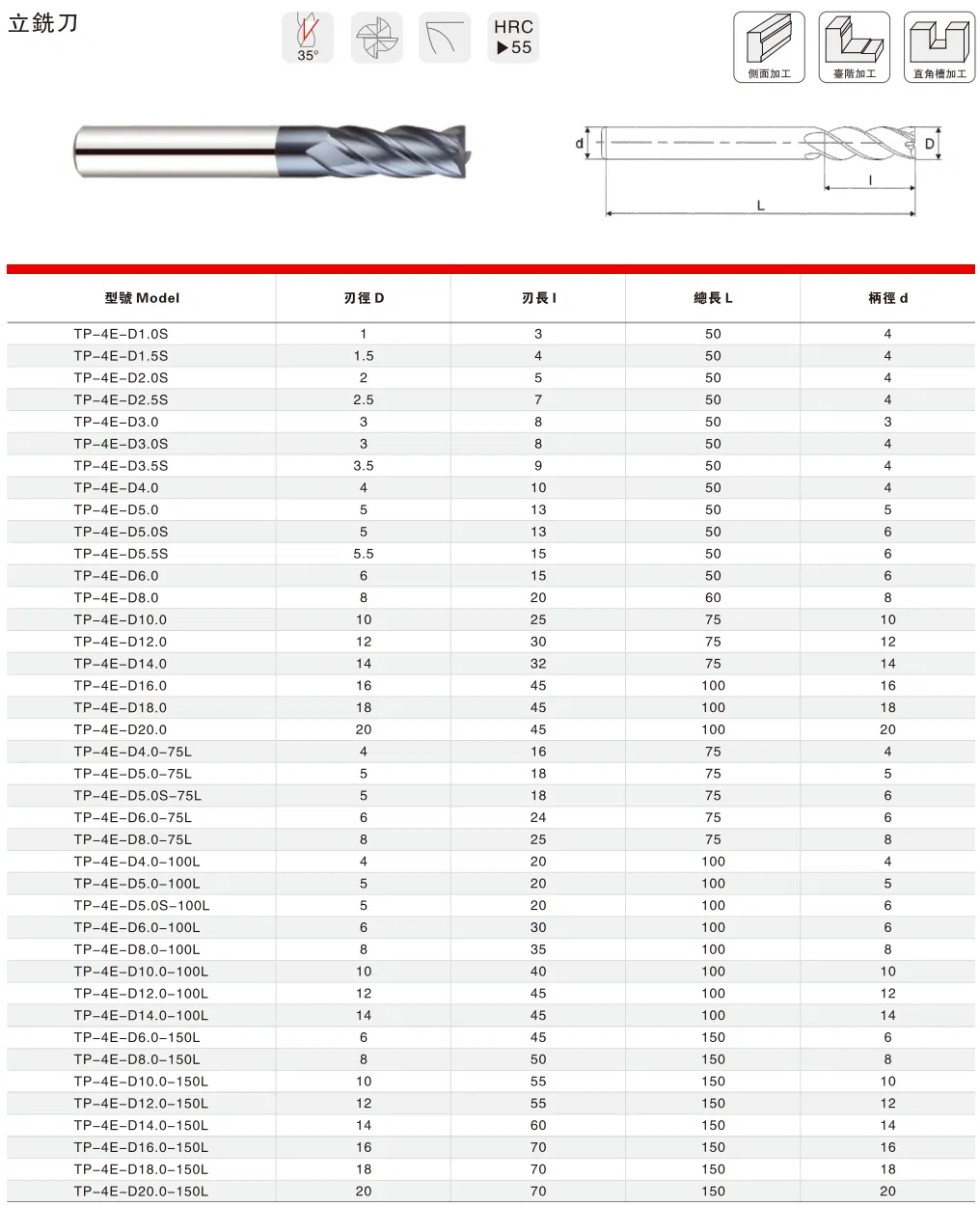

Product Parameters
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Carbide End Mill |
| Keywords | Cutting Tools |
| Product Description | 4-Flute AlTiN Coated Carbide Square End Mill |
| Diameter | 6 mm |
| Flute Length | 16 mm |
| Overall Length | 57 mm |
| Number of Flutes | 4 |
| Cutting End Type | Square End |
| Helix Angle | 45° |
| Shank Diameter | 6 mm |
| Substrate Material | Micro-Grain Carbide |
| Coating Type | AlTiN |
Main Technical Parameters:
📏 OVERALL LENGTH (OAL) & LENGTH OF CUT (LOC)
- OAL: The total length of the tool from the tip to the bottom of the shank.
- LOC (Flute Length): The length of the cutting portion, from the tip to where the flutes end. This determines the maximum depth a tool can cut in a single pass.
- Corner: It can be sharp (Square End), rounded (Corner Radius), or ball-shaped (Ball Nose). A corner radius distributes stress and helps prevent chipping.
