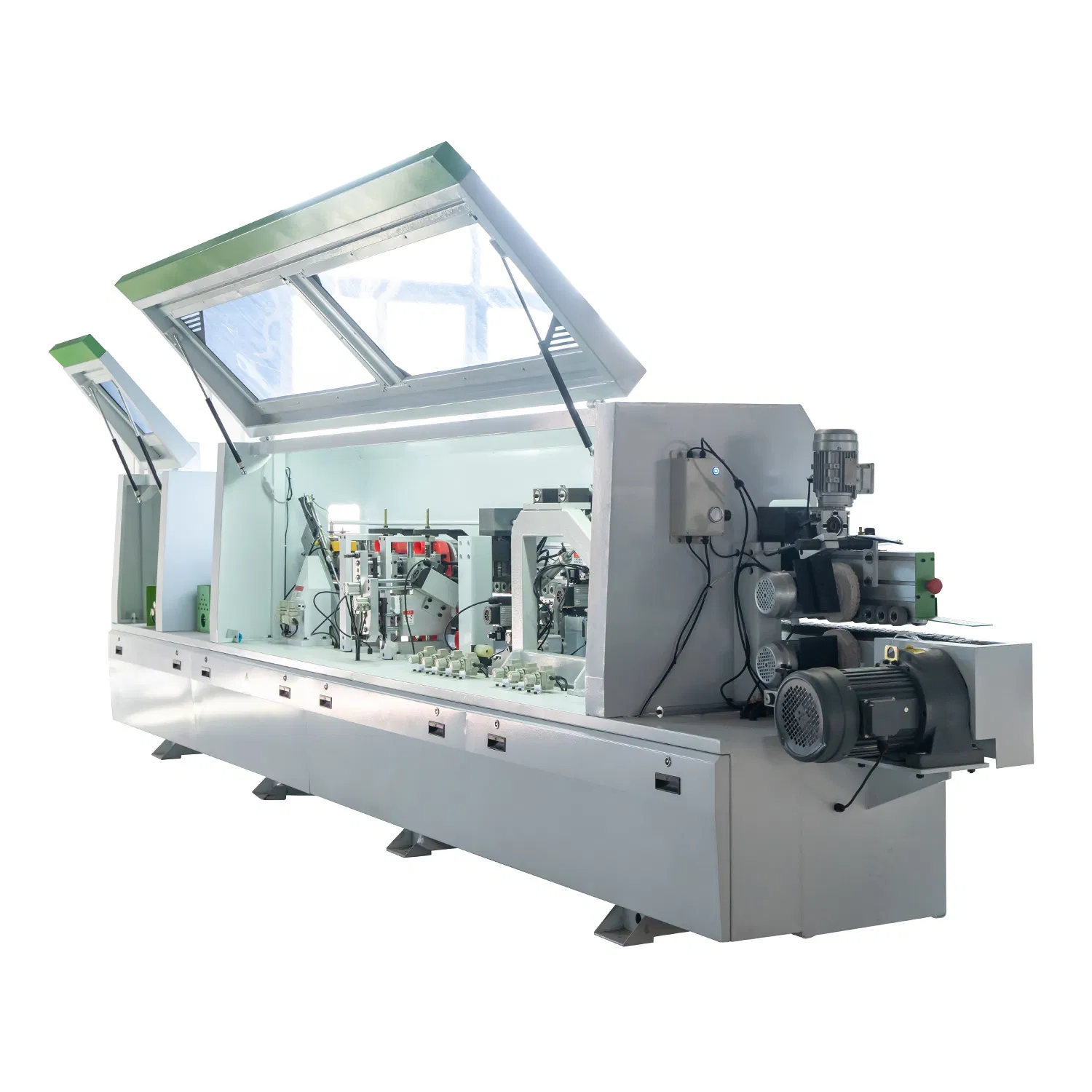

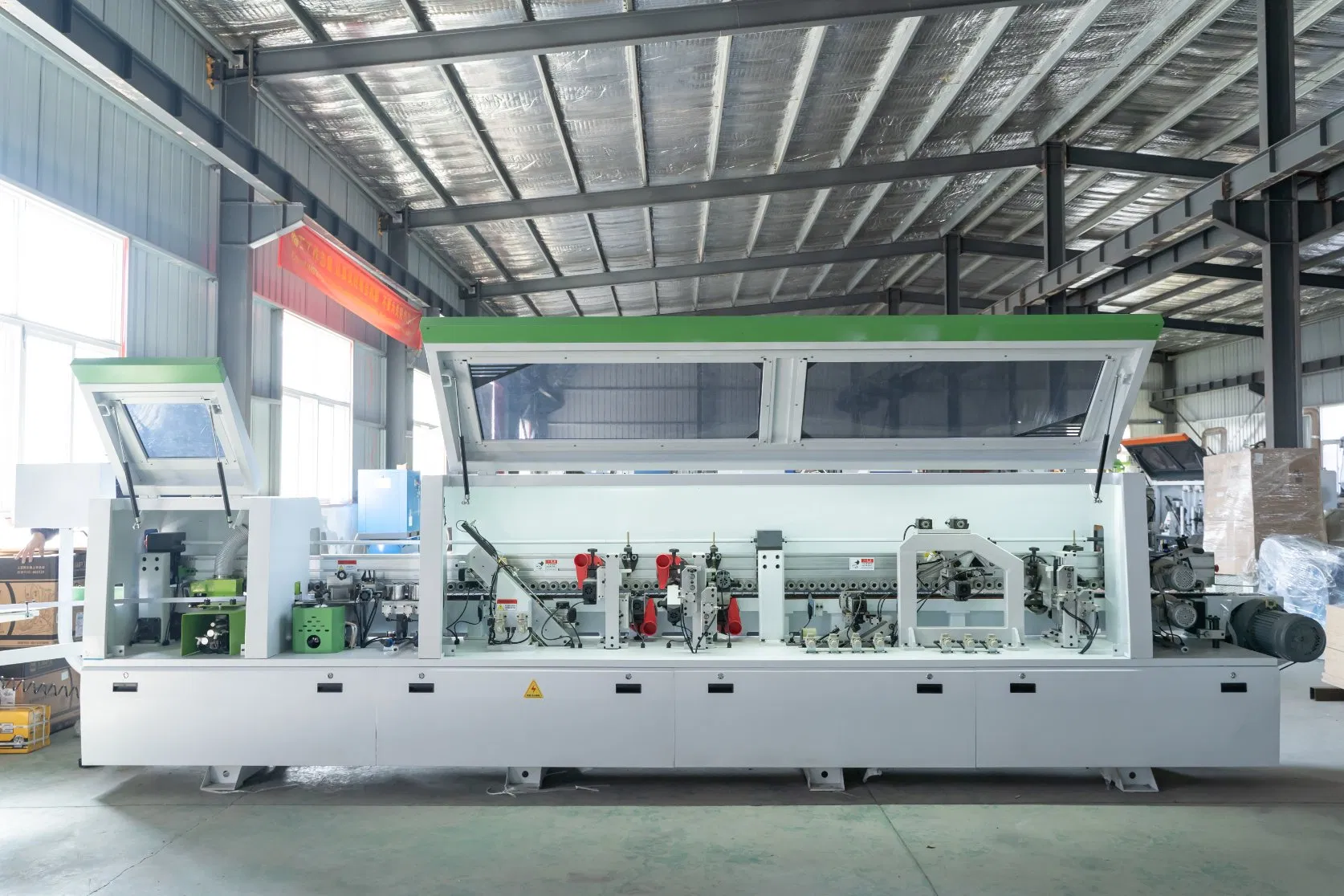

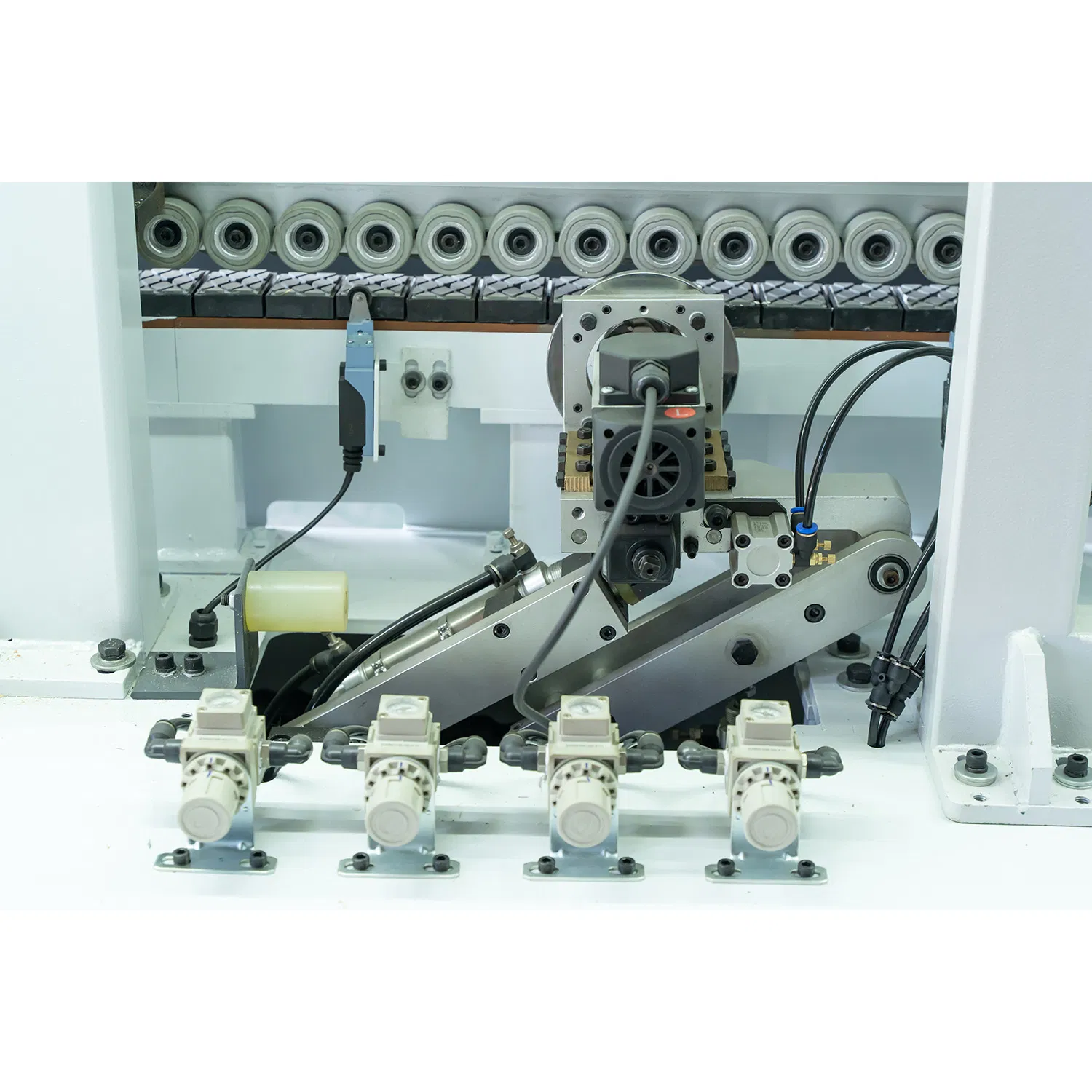

Woodworking Wood Working Edge Bander Automat PVC MDF Straight Edge Banding Machine with Pre-Milling Contour Roundingtracking and Slotting
Product Description
AUTOMATIC EDGE BANDING MACHINE SERIES
High Efficiency Woodworking Machinery Solutions
Standard Edition

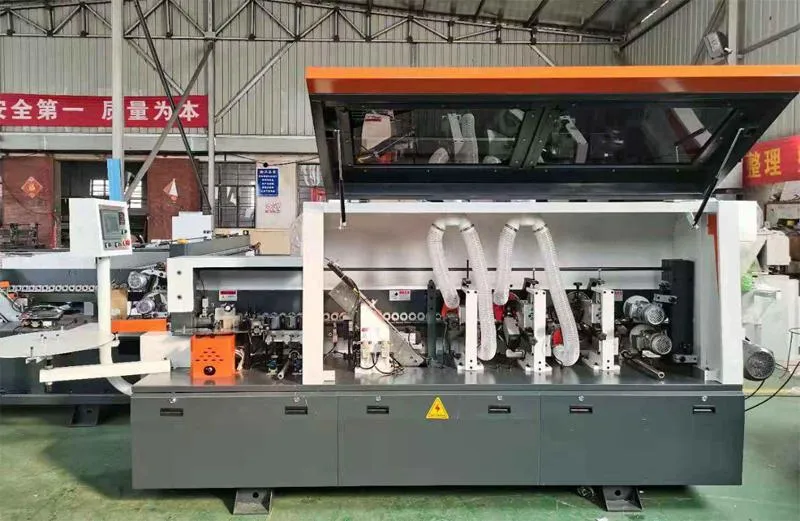

GD-368 AUTOMATIC EDGE BANDING MACHINE
Function: Glue, press, cutting head, rough trimming, fine trimming, scraping, polishing
Pre-milling Upgrade

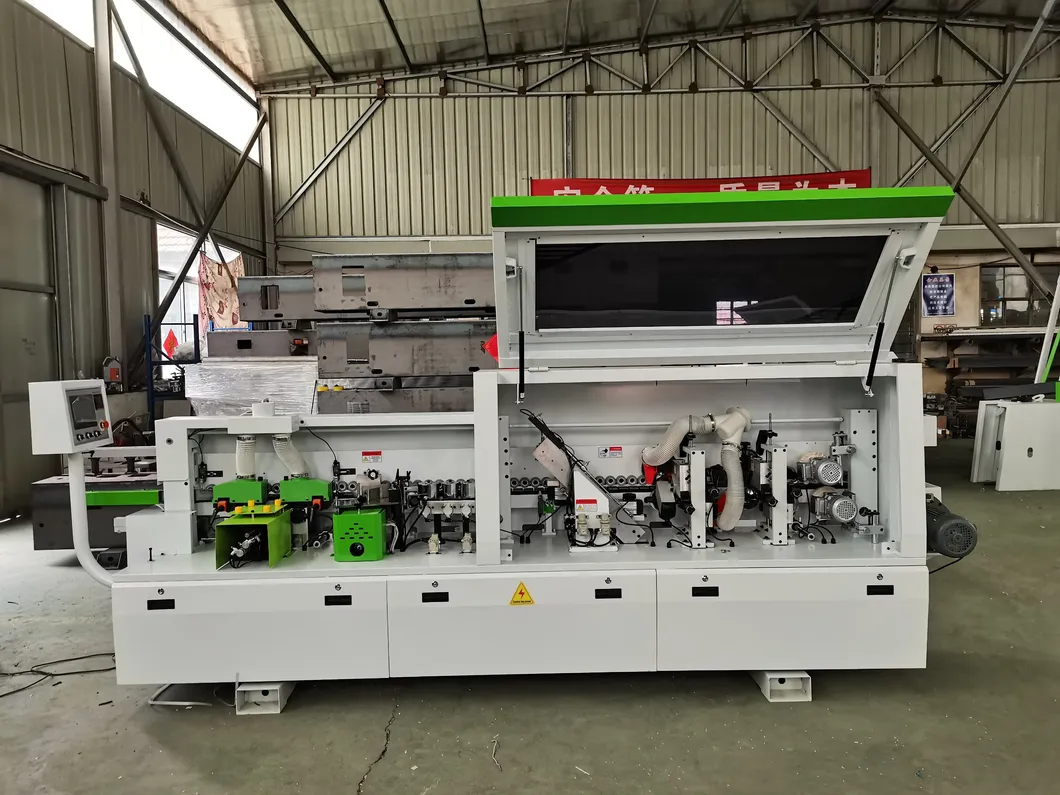

GD-468 AUTOMATIC EDGE BANDING MACHINE
Function: Pre-milling, Glue, press, cutting head, rough trimming, fine trimming, scraping, polishing
Corner Rounding Upgrade

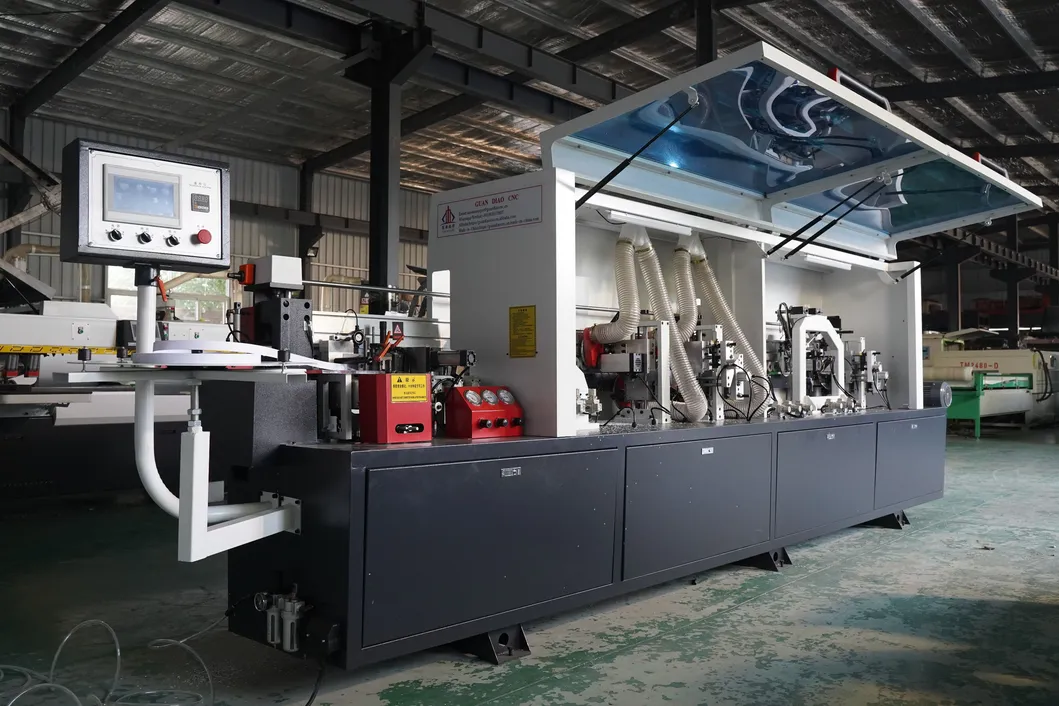

GD-568 AUTOMATIC EDGE BANDING MACHINE
Function: Glue, press, cutting head, rough trimming, fine trimming, Corner Rounding, scraping, polishing
Full Featured Pro
GD-768 AUTOMATIC EDGE BANDING MACHINE
Function: Pre-milling, Glue, press, cutting head, rough trimming, fine trimming, Corner Rounding, scraping, polishing
Multi-angle Gallery
Technical Specifications (GD-768)
| Parameter | GD-768 Specification |
|---|---|
| Panel Feed Speed(m/min) | 13m/min |
| Edge Thickness | 0.4-3mm |
| Edge Width | 15-55mm |
| Edge banding height | 12-60mm |
| Panel thickness | 8-30mm |
| Mini work Panel Width | > 80mm |
| Mini work Panel Length | >120 mm |
| Heating power of plastic box | 1.5kw |
| Plate preheating power | 0.3KW |
| End cutting motor power | 0.55kw * 2 1200r / min200HZ |
| Transmission motor power | 2.2KW |
| Polishing motor power | 0.2kw*2 1400r / min 300Hz |
| Fine trimming motor power | 0.75kw*2 1800r / min 300Hz |
| Total power | 10kw |
| Air pressure | 0.9MPA |
| Machine weight | 1500KG |
| Machine size | 7200*1000*1800mm |
Advanced Working Units

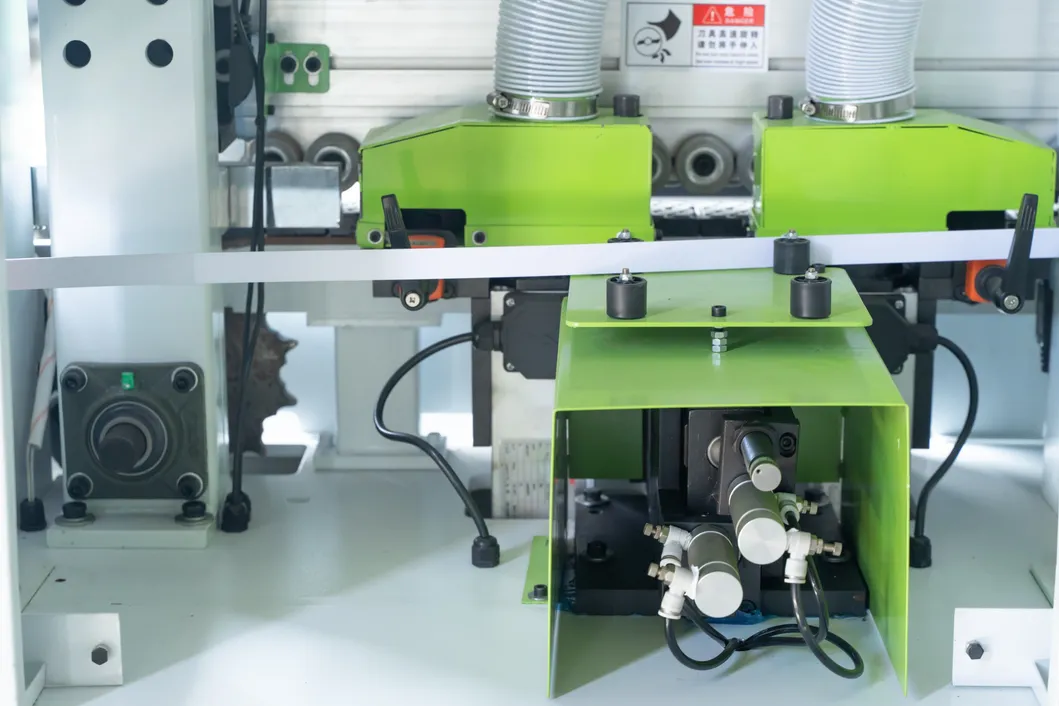

Pre Milling
There are two counter rotating shape cutters controlled by independent air cylinders, allowing milling of front and back edges without tearing out. This ensures right-angled and chip-free workpiece edges.

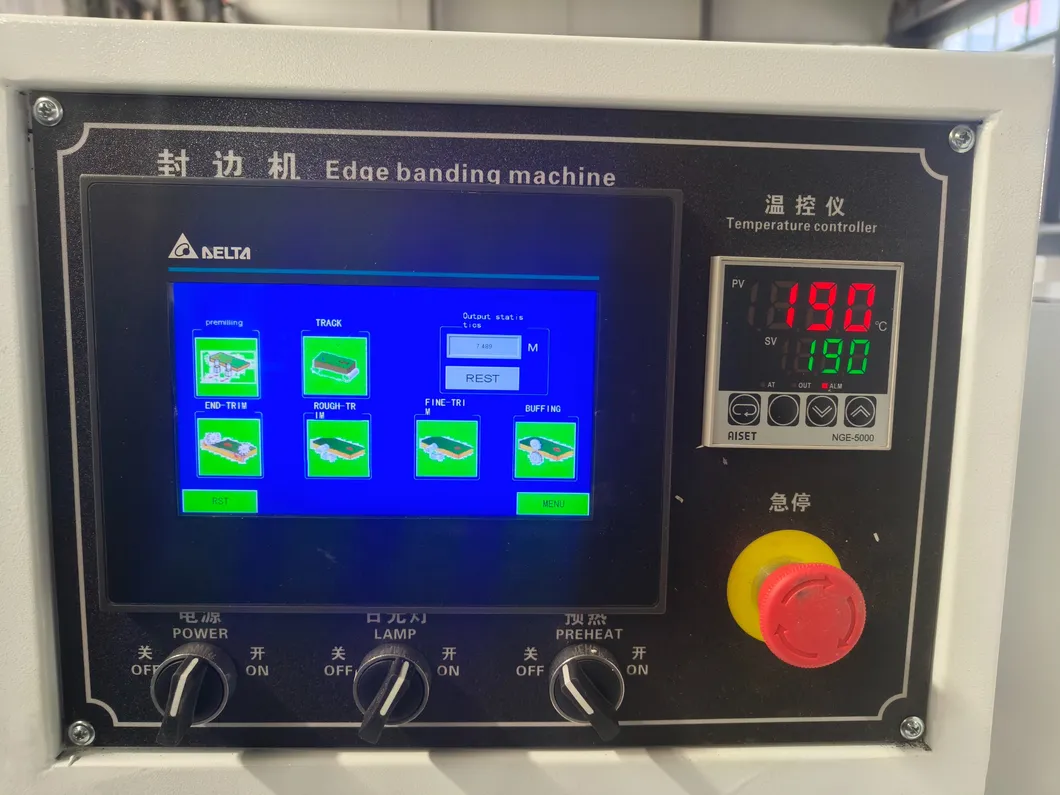

PLC Control Touch Screen
Intelligent operation panel, simple operation, designed with integrated fault detection mechanisms.

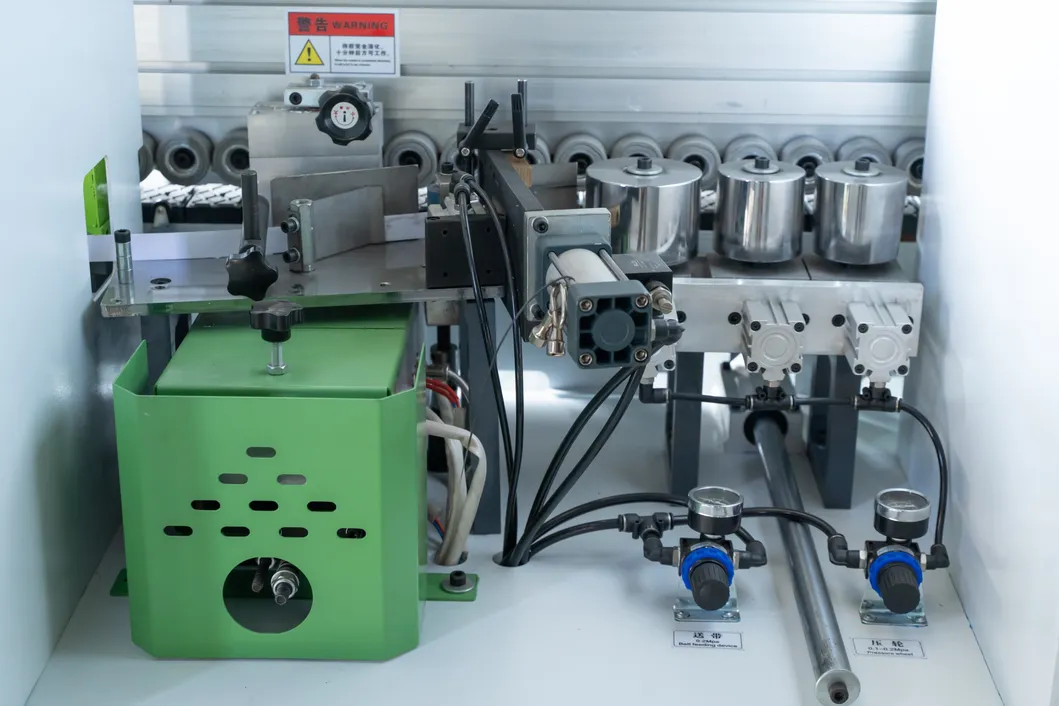

Pressing and Gluing
The steel pressing wheel presses the edge band and the plate tightly to make the adhesion firm, leaving no glue marks on the plate surface.

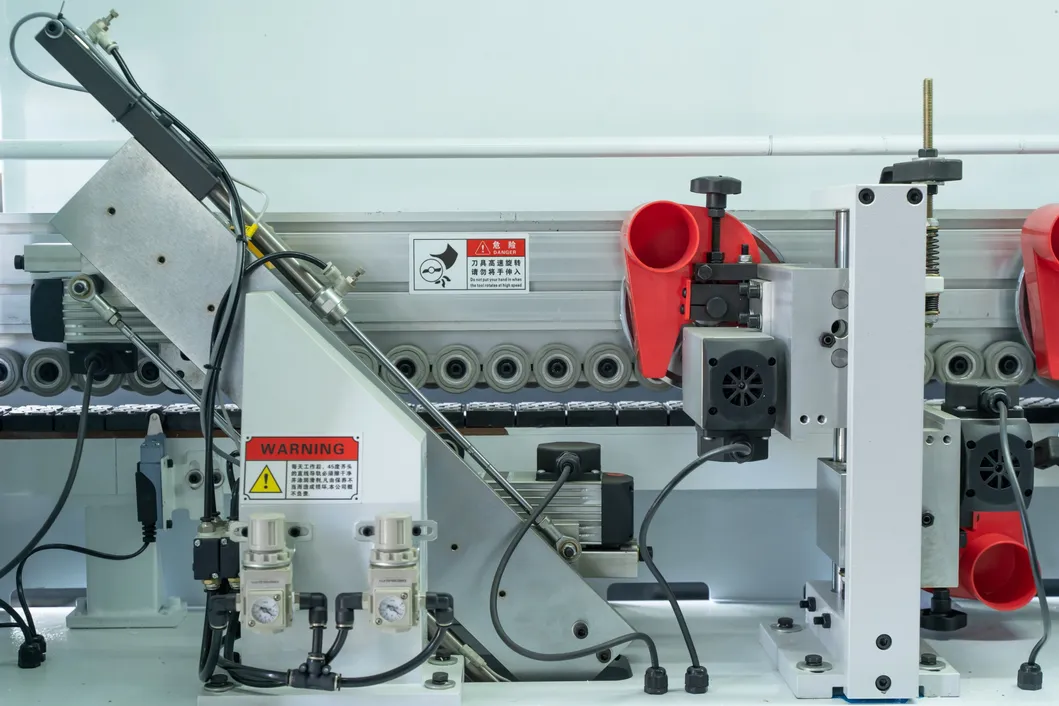

Front and End Cutting
Composed of front end and back end trimming. Controlled by premium solenoid valves. Features a unique protection system preventing panel bumping. Cut off by a special saw blade to enhance stability.

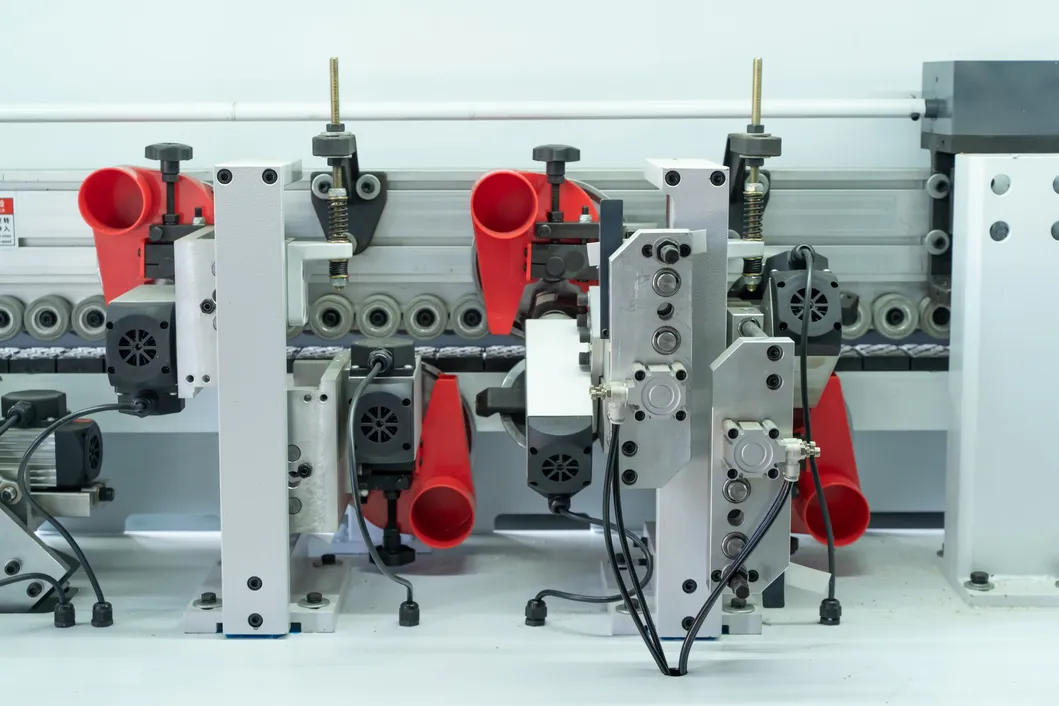

Rough & Fine Trimming
The roughing tool is a 15° flat tool with 40-50 thread allowance for finishing. Automatic tracking by film and high-frequency, high-speed motors realize fast cutting.

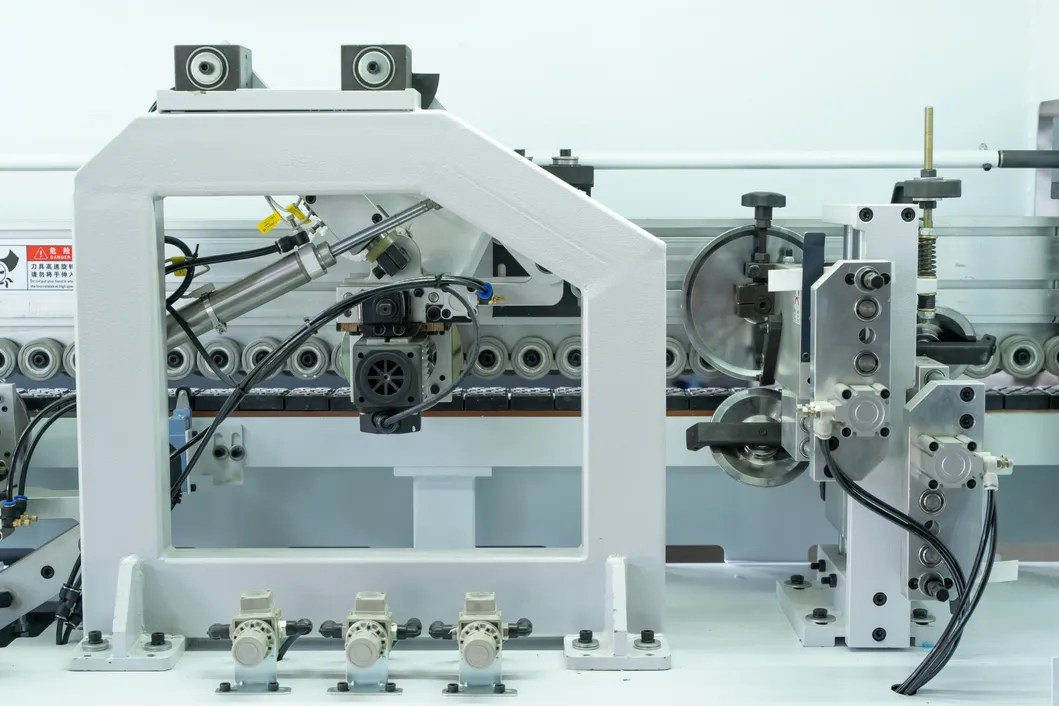

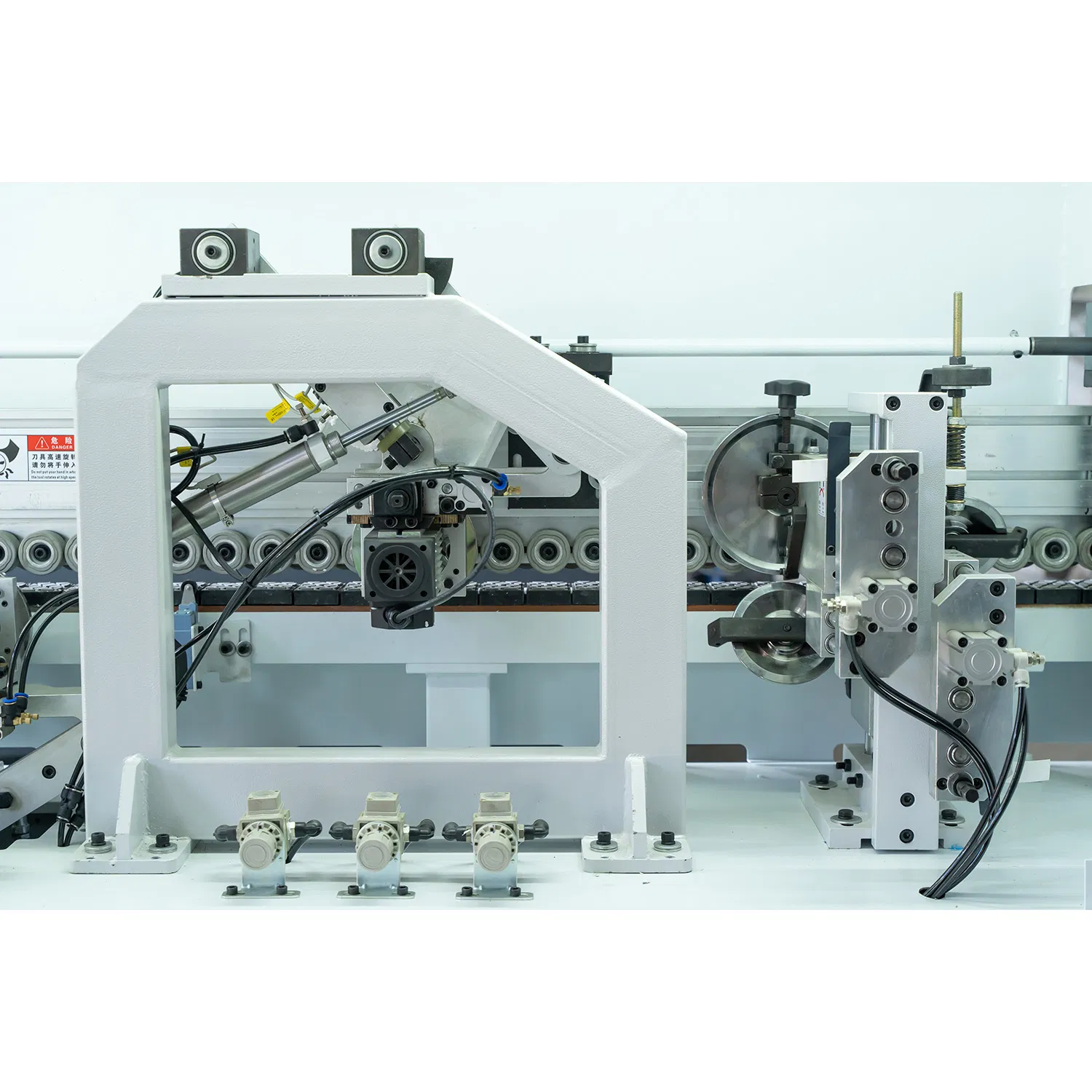

Corner Rounding
Shapes the panel corners to make them visually premium and rounded. This function is a necessary step for high-end cabinet door processing.

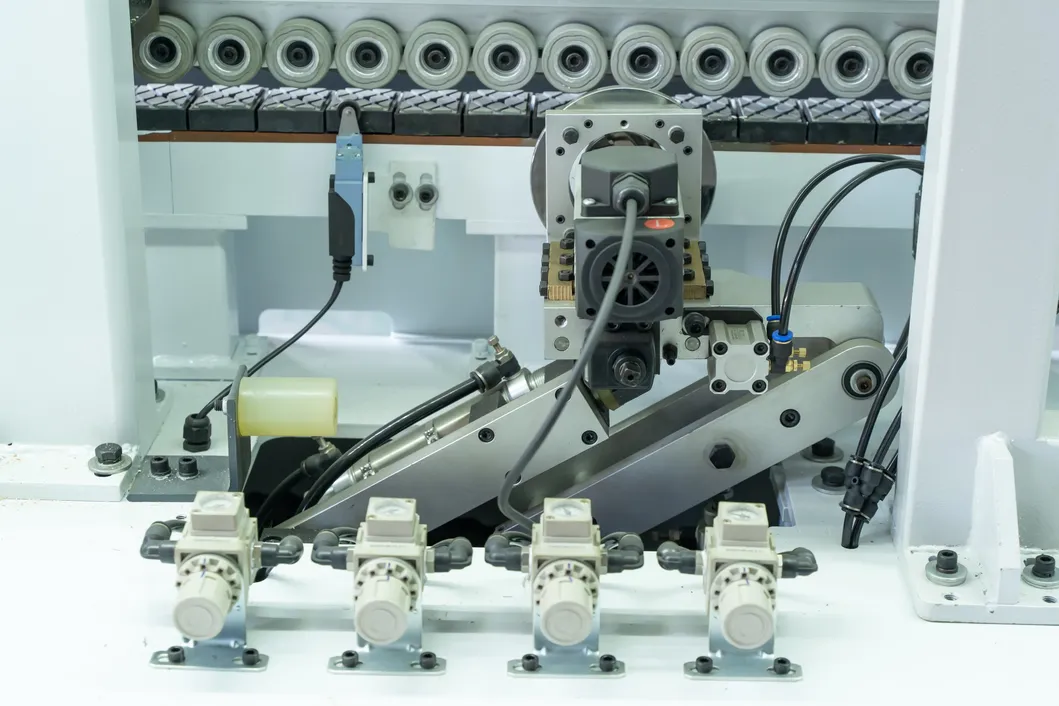

Scraping
Used to scrape the extra glue to render the edges smoother. Equipped with dust collector pipes and upper/lower radius scrapers for processing 2mm plastic edge material.

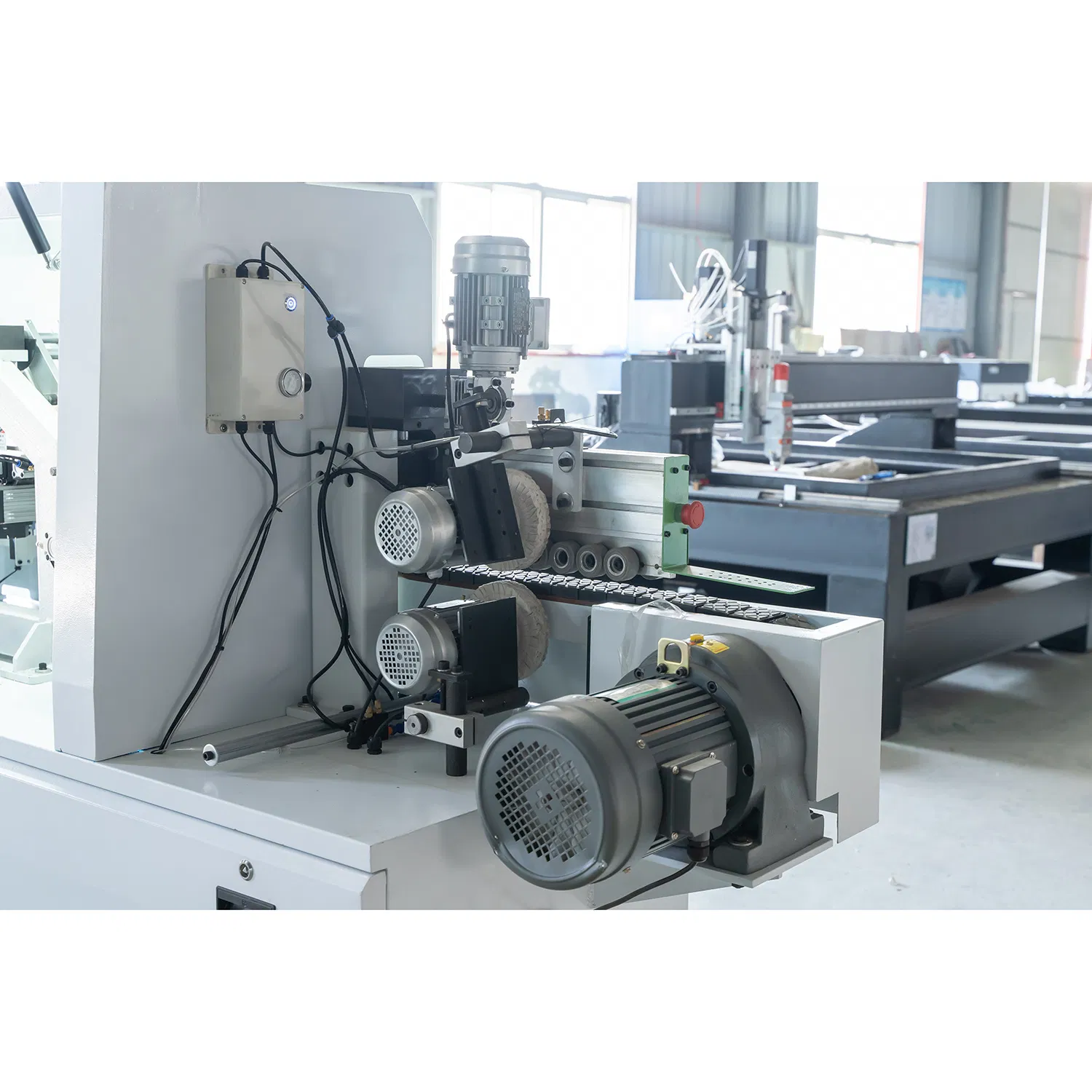

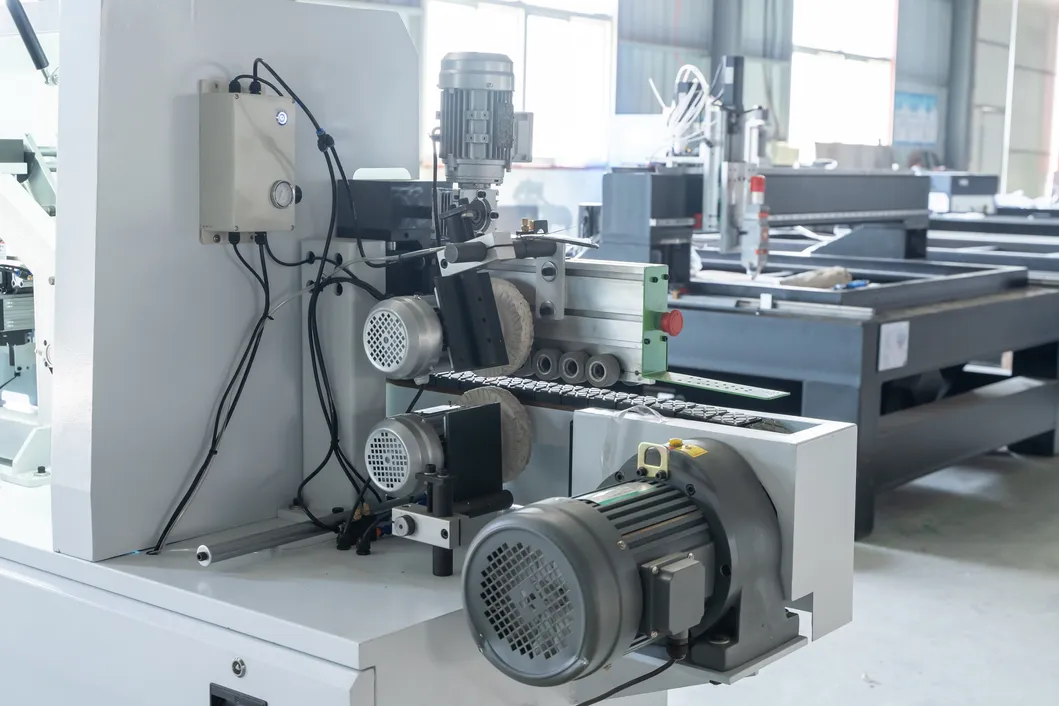

Buffing & Cleaning
Cleans extra glue residue. Uses 4 cloth wheels to polish the dust on the edges, making them clean and aesthetic. The upper and lower buffing units ensure a perfect finish on the edge radius.
Applicable Panels
Our automatic linear edge banding machines are perfectly suitable for processing various types of plates, including:
- Medium Density Fiberboard (MDF)
- Block Board & Solid Wood Boards
- Particleboard
- Polymer Door Plates
- Plywood, and more.

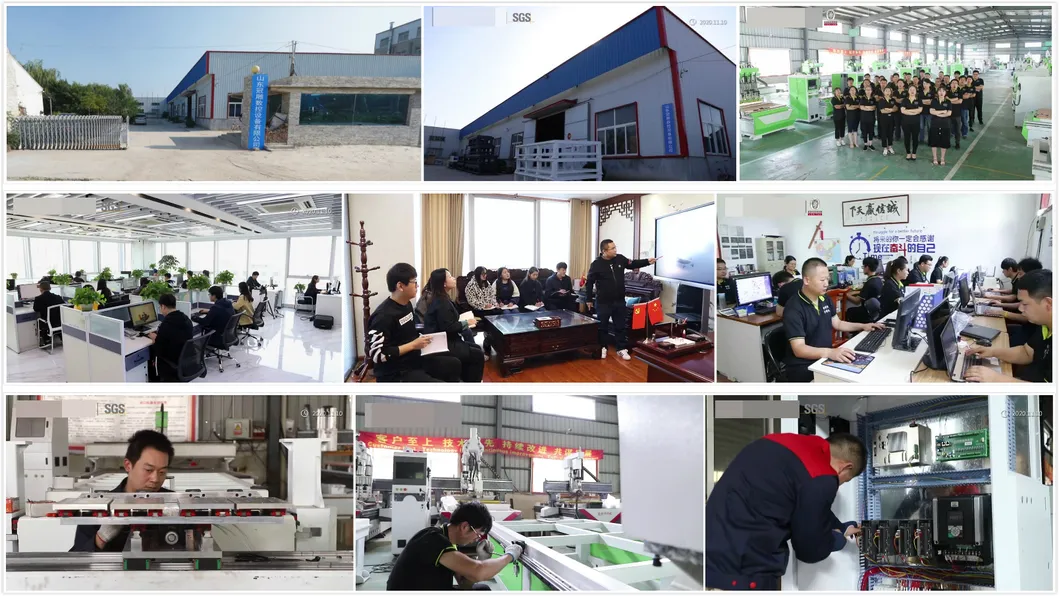

Innovative Manufacturing Excellence
We are an innovative enterprise engaged in the research, development, production, sales, and comprehensive after-sales service of woodworking machinery. Our key products include Panel Furniture CNC Cutting Machines, Woodworking CNC Machining Centers, CNC Routers, Multi-head Cylinder CNC Engraving Machines, Styrofoam CNC Routers, 3D Scanners, Vacuum Membrane Press Machines, Vacuum Forming Machines, and Laser Engraving/Cutting Machines.
These premium machinery solutions are widely applied in panel furniture, European furniture, solid wood furniture, advertising, stone fabrication, building decoration, handicrafts, mold making, staircase column engraving, PCB printing, automotive components, packaging, shipbuilding, and other industries. With a strong focus on high-quality production, our professional technical team ensures clear quality assurance divisions for global distributions.
Global Delivery & Support
1. Delivery & Packaging
Machines will be packed properly and loaded in containers to save space, or sealed inside wooden cartons for optimal protection during sea and land transportation.
2. Warranty Policy
We provide a 12-month machinery warranty. Under normal operation and maintenance, we will offer replacement spare parts for free. Technical support remains available throughout the lifetime of the machine.
3. Technical Support
Operation manuals and video instructions are provided. Continuous online technical support is available via email, online messengers, and video assistance to guarantee quick troubleshooting.
4. After-Sales Operations
Machines are sent fully assembled unless their dimensions exceed container sizes. Operation and production can begin immediately once power, air, and water supplies are connected.
OEM & ODM Customization Available
We accept OEM and ODM service configurations. Contact us to configure machines that fit your production demands.
Frequently Asked Questions (FAQ)
1. What kind of materials can the automatic edge banding machine process?
The automatic linear edge banding machine is suitable for a wide range of wood-based panels and synthetic plates, including MDF, block board, solid wood board, particleboard, polymer door plates, and plywood.
2. What are the key function differences between the GD-368 and GD-768 models?
The GD-368 is a standard unit that covers gluing, pressing, end cutting, rough/fine trimming, scraping, and polishing. The GD-768 is a fully integrated premium model that adds both Pre-milling and Corner Rounding units to ensure chip-free panels and perfect corner styling.
3. Why is the Pre-milling function essential for edge banders?
Pre-milling uses two counter-rotating cutters controlled by independent cylinders to clean up and true the panel edges before the glue is applied. This eliminates chipping, swelling, and uneven cuts, ensuring a tight, seamless joint.
4. How does Corner Rounding enhance panel processing?
Corner Rounding shapes the sharp corner joints of banded panels into smooth, elegant round edges. This is an essential processing step for professional, high-end cabinet doors and furniture manufacturing to ensure safety and superior aesthetics.
5. What packaging and delivery services do you provide?
Machines are packed using protective film and securely anchored within containers to maximize space efficiency. Sealed wooden crates can be utilized for additional protection against external logistics factors.
6. What happens if I encounter problems during or after the warranty?
We offer a 12-month warranty, during which replacement spare parts are provided free of charge for issues under normal operation. Beyond the warranty, we provide replacement components at cost value, alongside lifetime technical support via digital channels.
