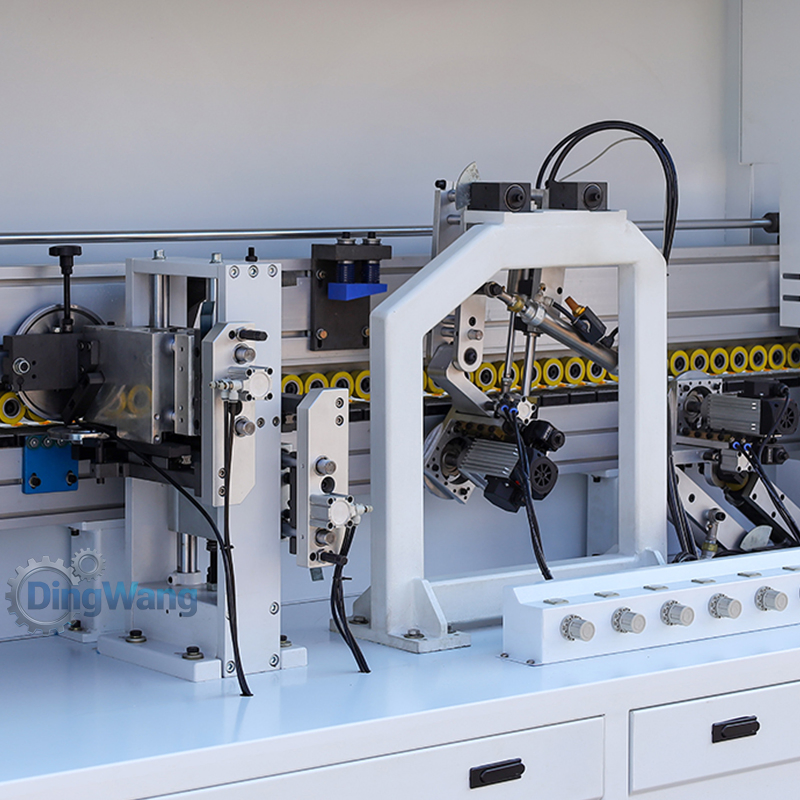

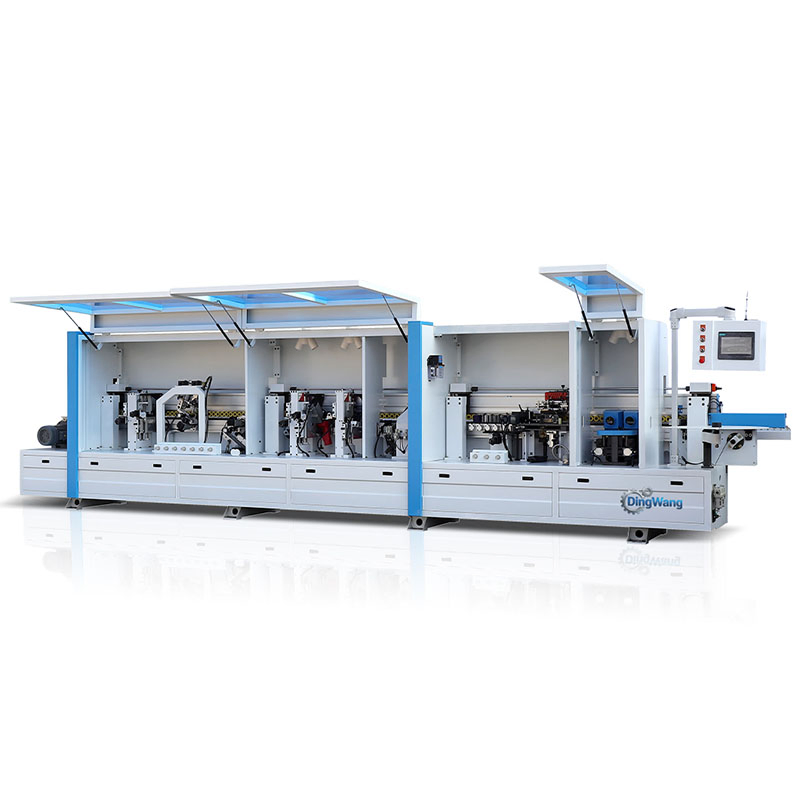

Automatic Edge Banding Machine with Pre-Milling Feature PUR Edge Bander for Contour Tracking 8 Functions Woodworking Furniture Making Edge Banding Equipment
Product Description

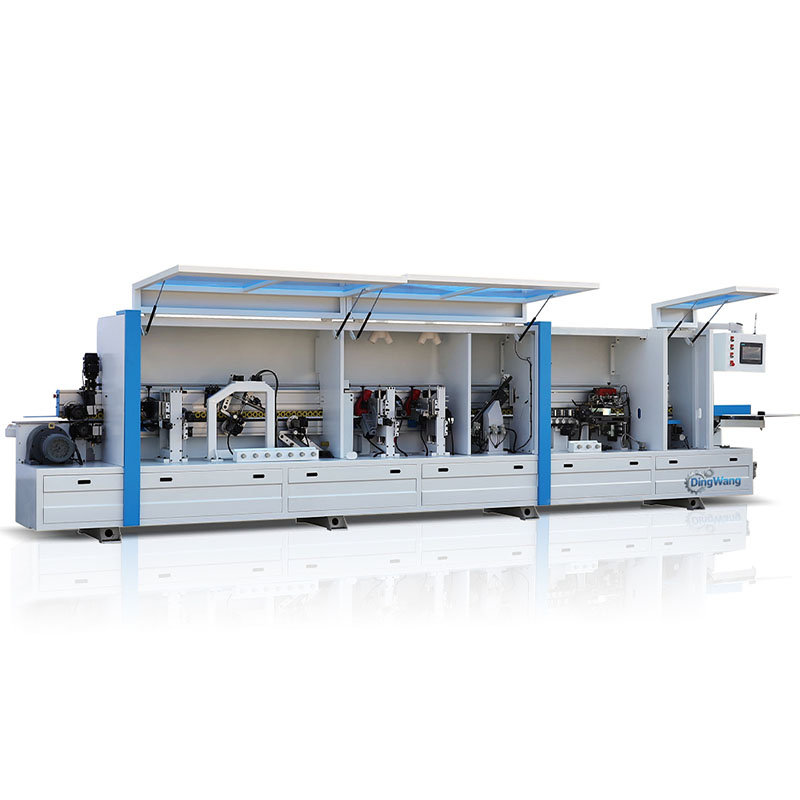

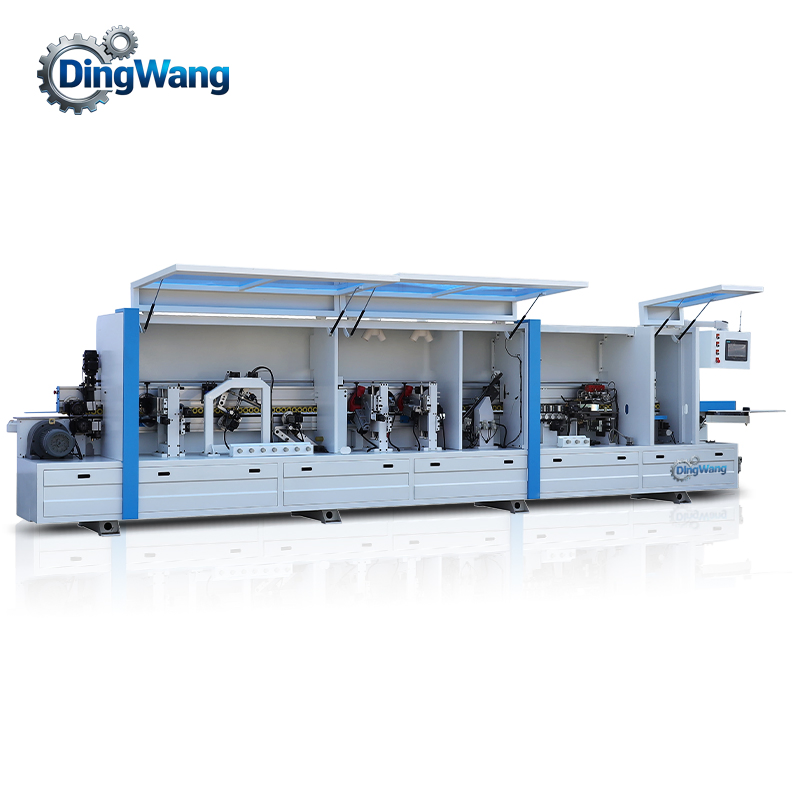

Heavy Duty High Speed Edge Banding Machine
Our high-performance edge-banding machine adopts advanced technology and robust steel plate design, high-quality accessories, ensuring the durability and stability of the equipment, perfect trimming effect. Encoder control operation is simple, low maintenance rate. It is suitable for the whole house custom edging, wardrobe edging, cabinet edging, PVC edging and wooden door edging can show excellent performance.
DW450G - Unlock the advanced capabilities of this model, which boasts the following 8 exceptional functions:
1. Pre-milling
2. Gluing and pressing
3. End trimming
4. Rough trimming
5. Fine trimming
6. Contour tracking
7. Scraping
8. Buffing
Technical Specifications
Basic Info
Model NO.DW450G
TypeLinear Edge Banding Machine
Edging Thickness0.4-3mm
Automatic GradeAutomatic
Panel Feeding Speed20/24/30m/Min
CertificationCE, ISO, FDA
Panel Thickness8-50mm
Min. Length Panel50mm
Min. Width Panel50mm
Manufacturing PrinciplesGlue Tank Overhead
CustomizedCustomized
After-sales ServiceOnline & Video Services
Total Machine Power16.23kw
Working Air Pressure0.8MPa
Voltage220V/380V/415V
Weight2500kg
OriginChina
HS Code8465990000
Packaging & Delivery
Specification Size7200*1000*1800mm
Package Size720.00cm * 100.00cm * 180.00cm
Package Gross Weight2600.000kg
Transport PackageStretch Film or Wooden Packaging
| Equipment Parameter | Value | Motor Power Detail | Value |
|---|---|---|---|
| Equipment Model | DW450G | Total Power | 16.23KW |
| Equipment Size | 7200*1000*1800MM | Power of End Trimming Motor | 0.55KW*2 |
| Weight | 2500KG | Power of Trimming Motor | 0.55KW*4 |
| Working Air Pressure | 0.8MPA | Power of Pre-milling Motor | 2.2KW*2 |
| Minimum Machining Length | 70MM | Power of Conveyor Motor | 5.5KW |
| Minimum Machining Width | 45MM | Power of Copying Motor | 0.3KW*2 |
| Processing Thickness | 10-55MM | Heating Power of Glue Tank | 1.8KW |
| Edge Band Width | 12-60MM | Power of Lifting Motor | 0.37KW |
| Edge Band Thickness | 0.5-3MM | Power of Buffing Motor | 0.18KW*2 |
| Running Speed | 20/24/28M/MIN | Preheating Power of Edge Banding | 0.2KW |
Product Features

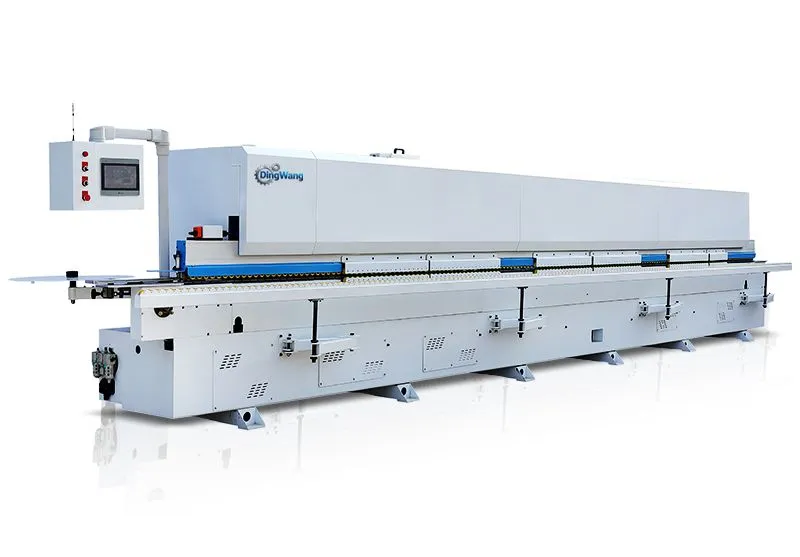

High-Rigidity Structure Design
The edge banding machine features a body made of thickened steel plates and an extra-thick worktable, with its machine surface processed by gantry milling, ensuring the equipment's firmness and stability. The upper pressing mechanism uses a high aluminum beam with a large fixed column.

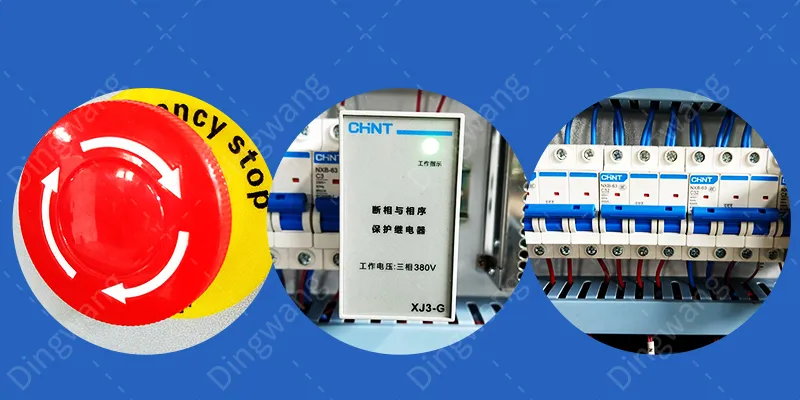

Humanized Function Protection
Emergency Stop Switch: The front and back are set for easy touch.
Phase Sequence Protection: Protective equipment circuit.
Earth Leakage Protection: Protect equipment and personnel.
Phase Sequence Protection: Protective equipment circuit.
Earth Leakage Protection: Protect equipment and personnel.

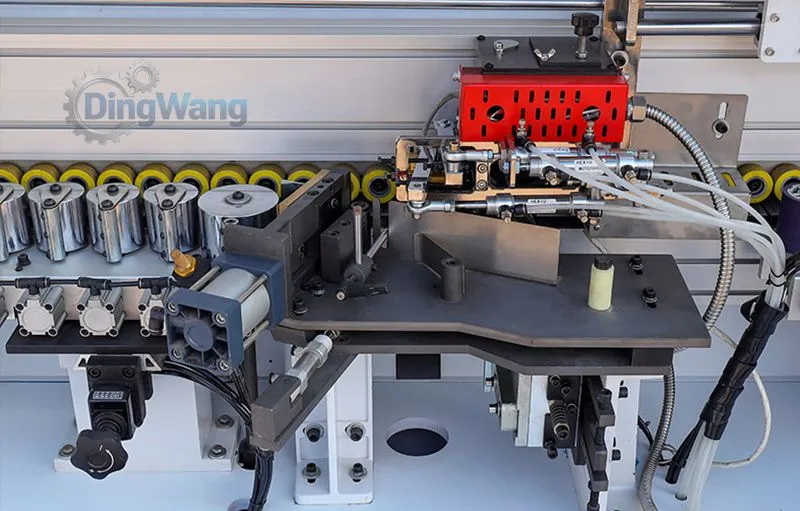

PUR Two-in-One Upper Gluing Pot
It realizes glue-free line during gluing for seamless edge banding. It can use PUR granular glue or EVA granular glue, and can also be used with a no-cleaning glue pot and an independent glue machine.

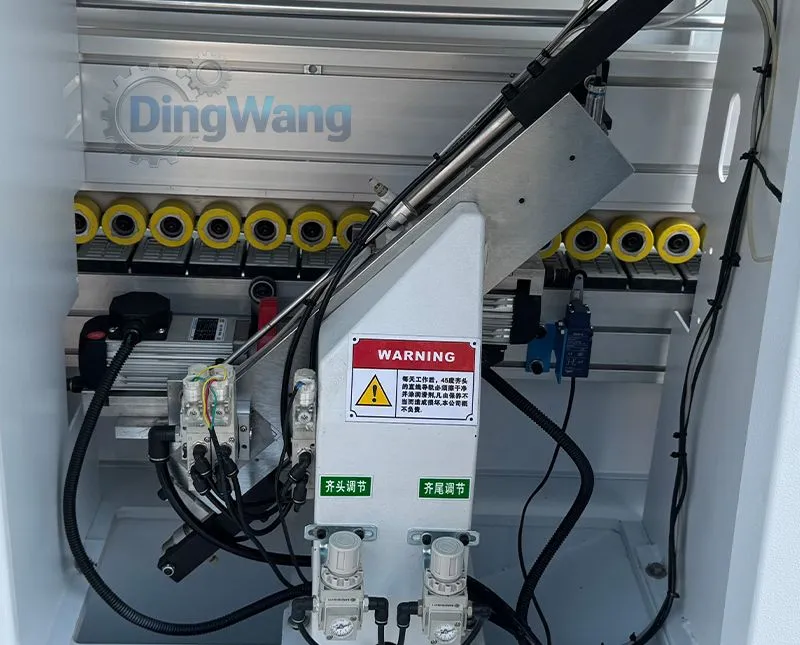

End Trimming Function
The End trimming function uses a high-speed motor to quickly cut off the excess edge banding strip, resulting in a smooth and perfect finish.

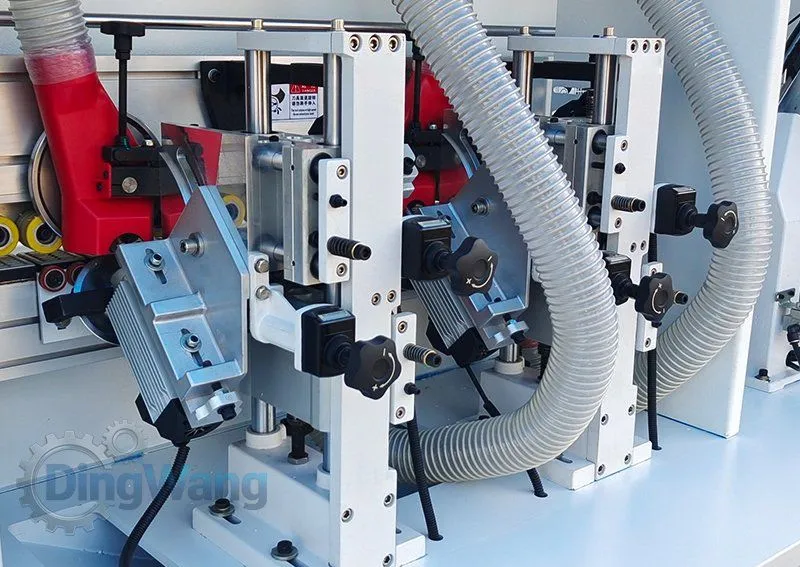

Rough & Fine Trimming
The combination of rough trimming and fine trimming reduces tool wear and increases equipment life, and can trim hard materials such as PVC and acrylic edge banding.

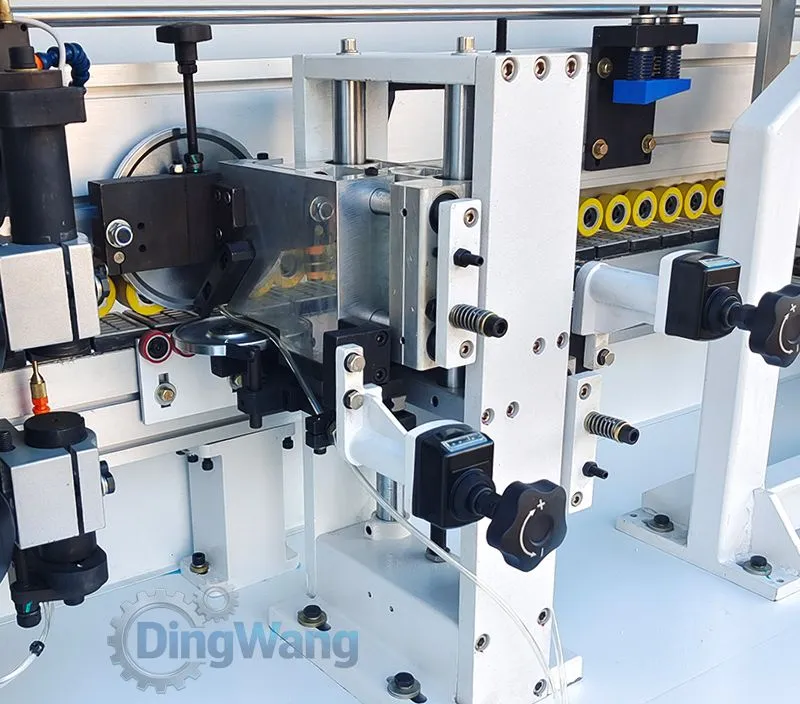

Scraping Function
Further trim the edges to eliminate the wavy lines caused by trimming and make the edges smoother.

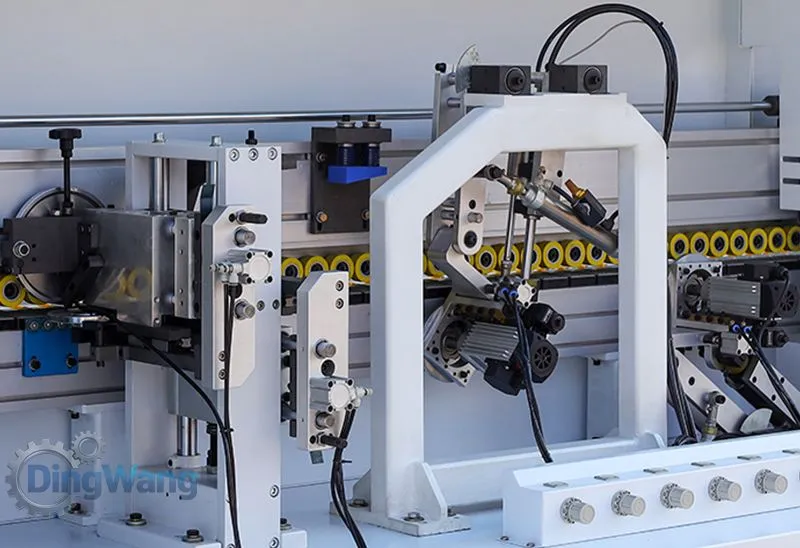

Copying Tracking
Carry out smooth edge trimming for the right-angle joints of edge banding to make the interfaces smooth and delicate, thereby improving the aesthetic appearance.

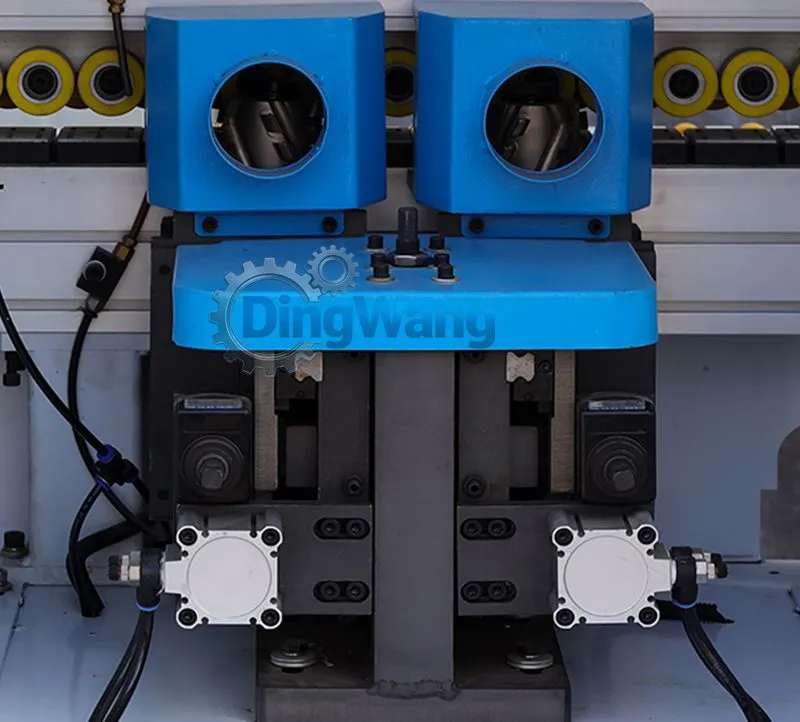

Diamond Double-Blade Pre-Milling
Diamond pre-milling cutter, durable, used for processing board edge chipping and burrs.

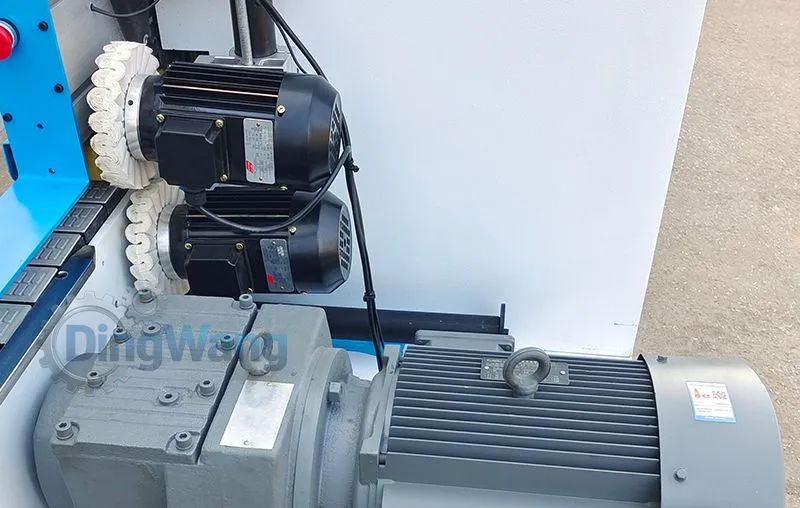

Dual-Group Buffing Function
The simultaneous operation of two Buffing groups makes the effect more perfect, and each group can also be defined to work independently.

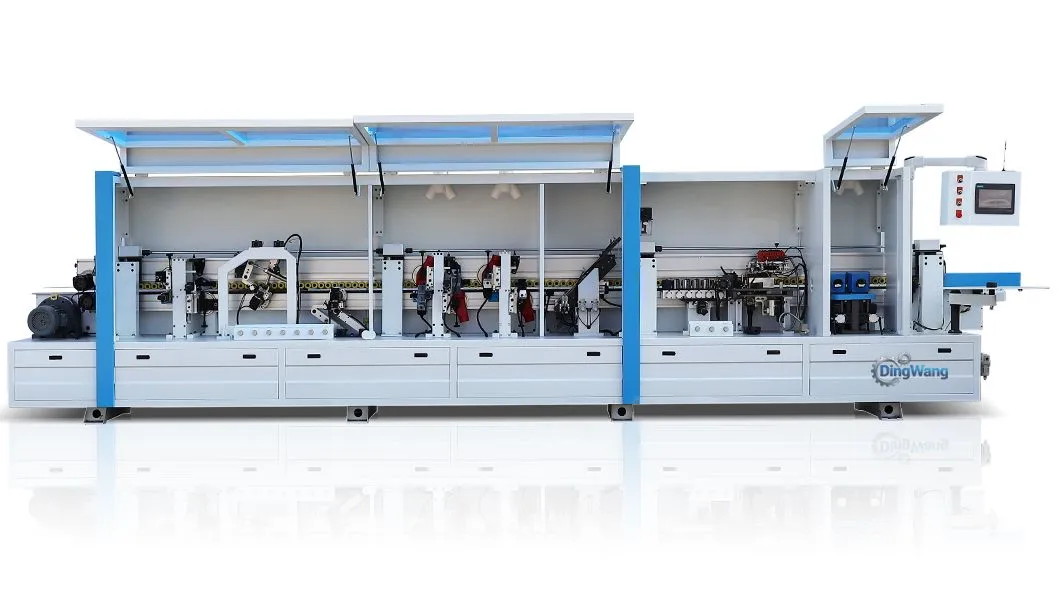

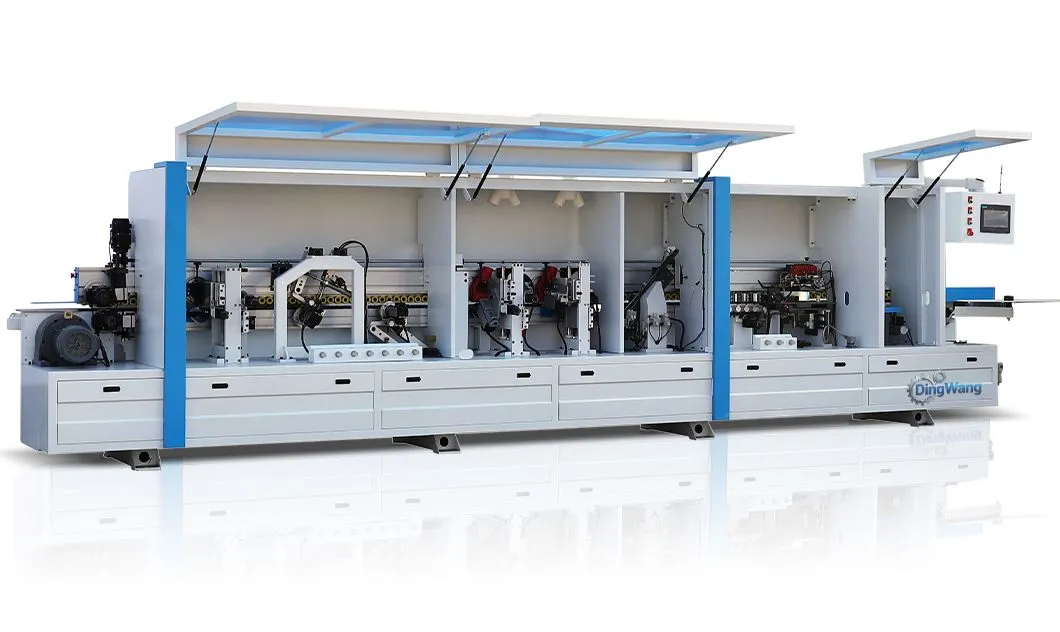

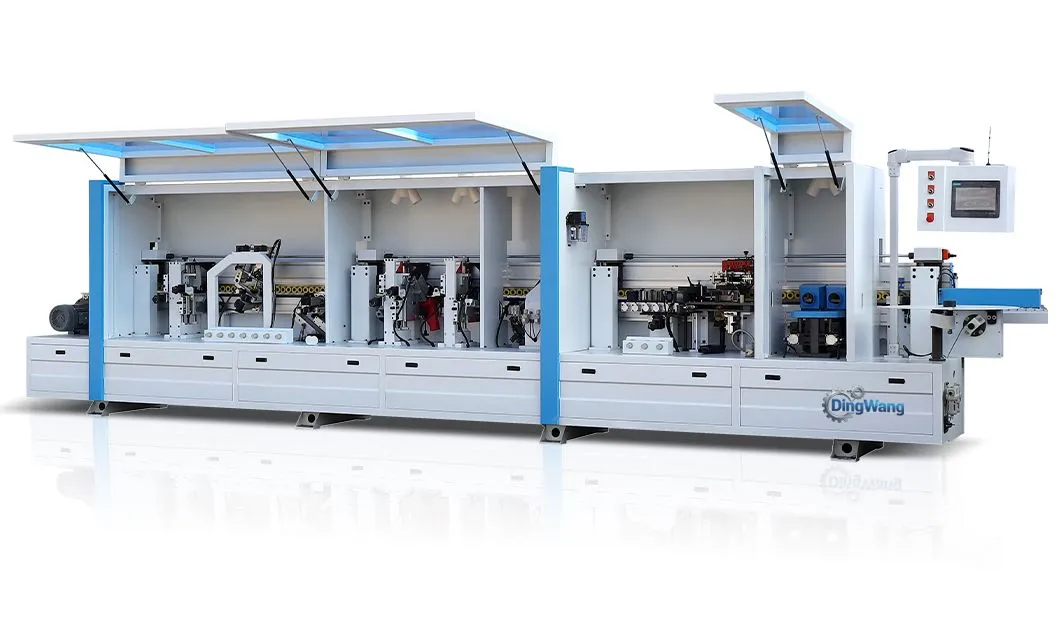

Panoramic Display

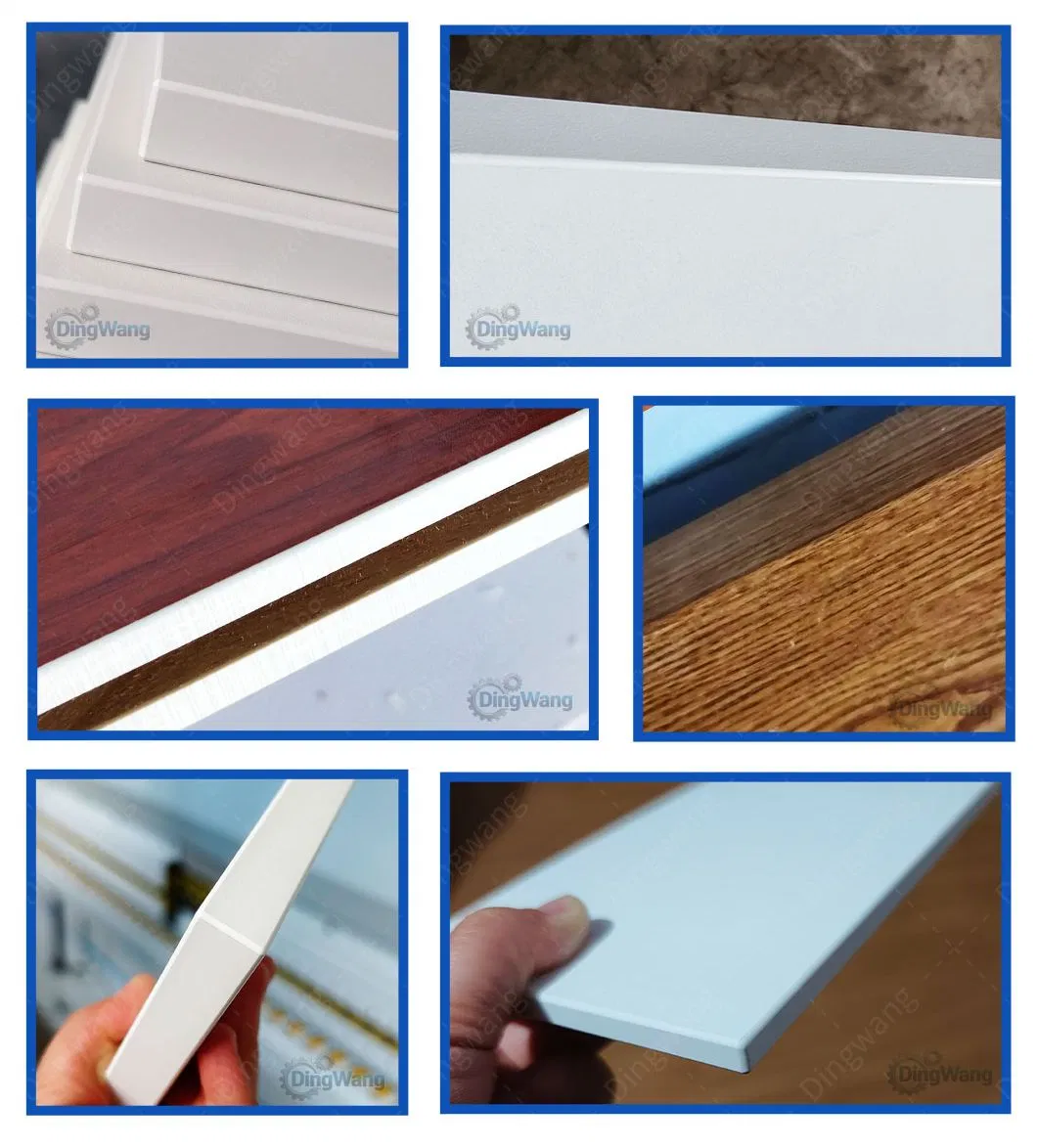

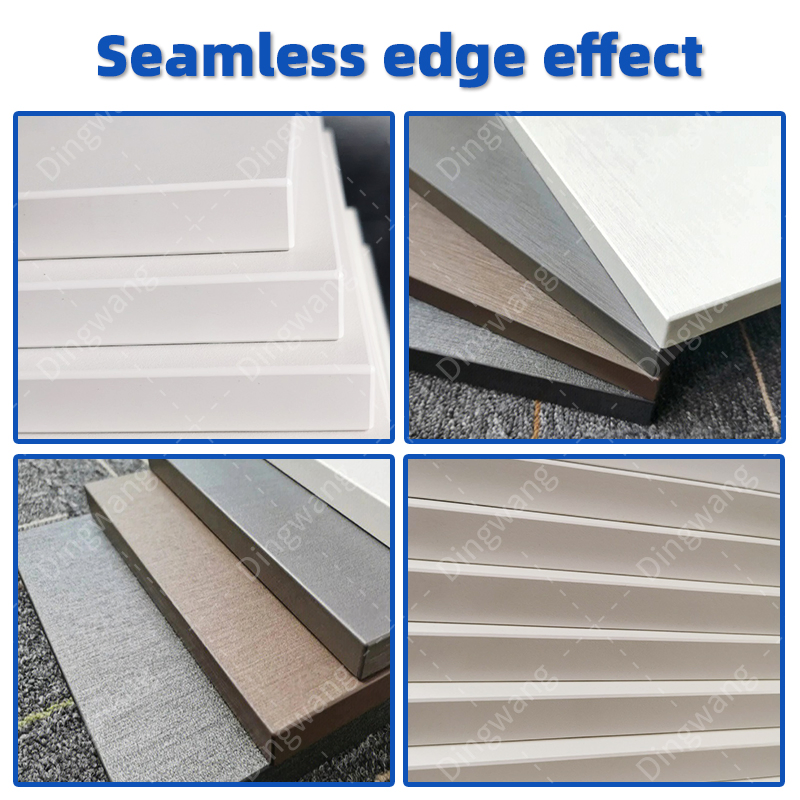

Edge Sealing Effect

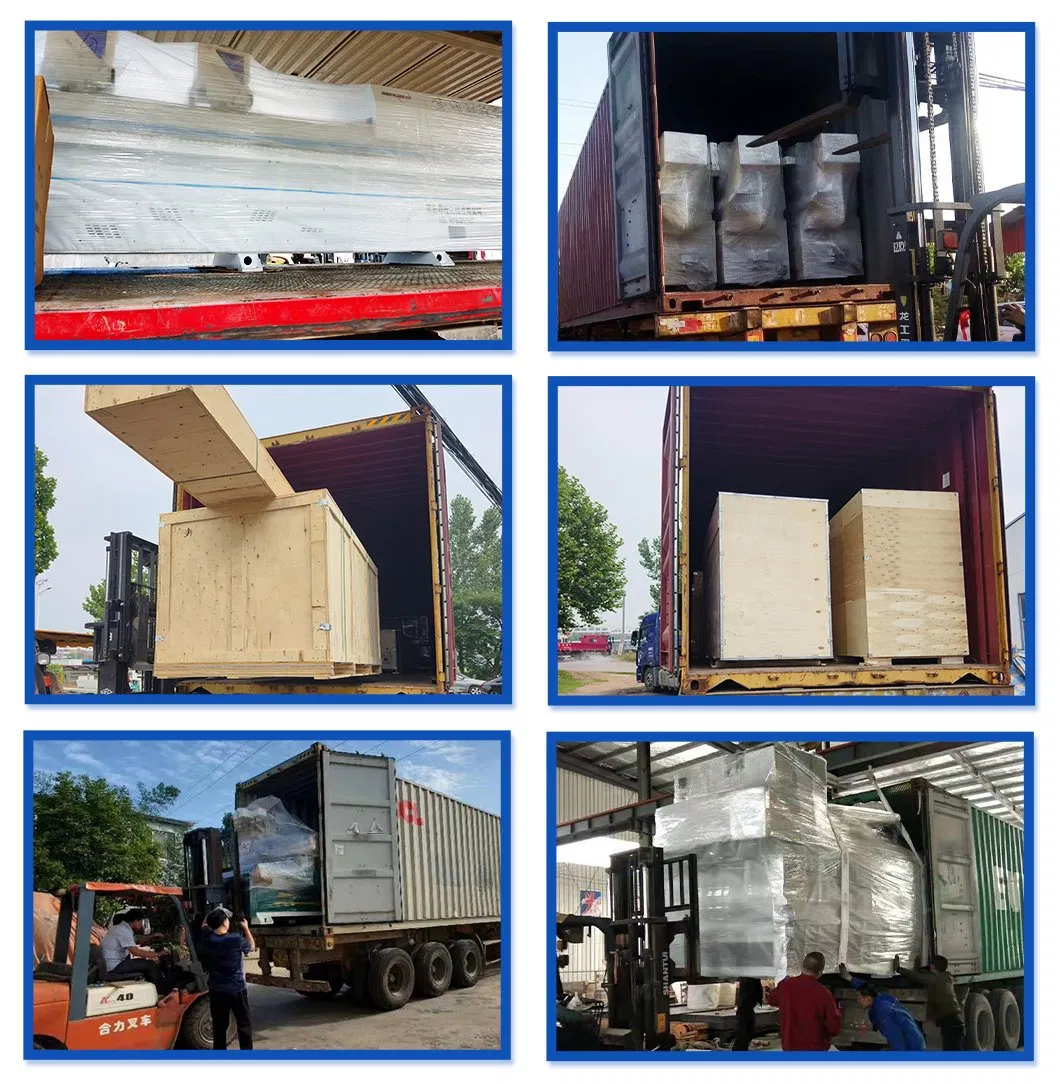

Factory & Shipments
Our Services
1. Delivery & Lead Time
Machines will be properly packed and loaded in containers, maximizing spaces to save room, or sealed in wooden cartons for secure transportation.
2. Two-Year Warranty
Under normal use and maintenance conditions, spare parts are provided free of charge for any performance issues. Technical support is always available.
3. Technical Support
Comprehensive manual and video illustrations are provided online. Technical support is available on time via digital messaging platforms.
