CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
Product Description
- Overview
- Cutting Wire
- CNC Software
- Machine Application
- FAQ
- Machine Parameter
- Company Profile

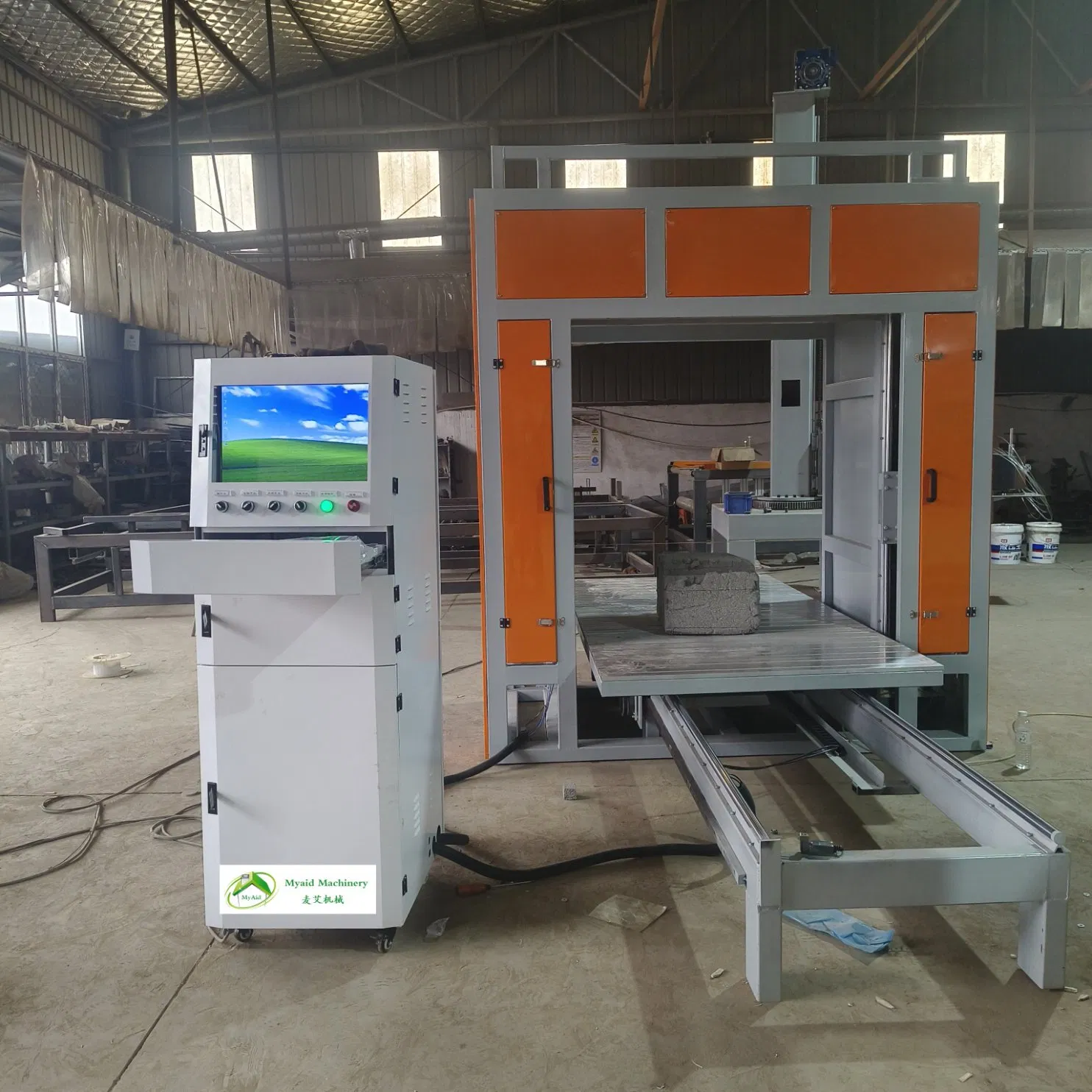

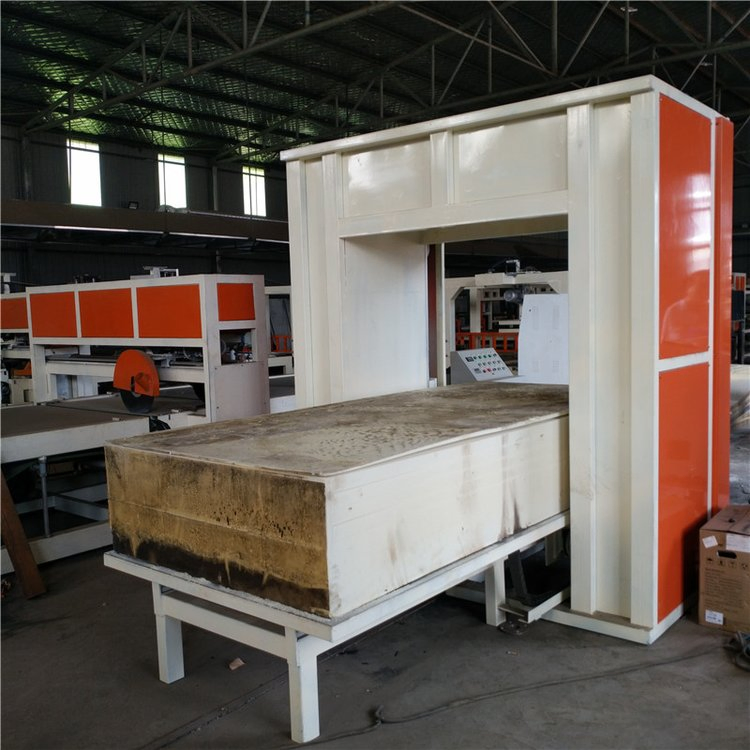

The CNC contour cutting machine is a computer-controlled system operating on the principle of a high-speed, endless abrasive steel wire loop to clean-cut various foam materials. The steel wire revolves within a structured frame that moves vertically, while the work table moves horizontally. This enables the machine to process large foam blocks into sheets and complex 2D contours efficiently.
Basic Information
Model NO.
2500
Application
Rigid Foam Materials
Process Usage
Foam Contour
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.2mm
Performance
Mid-Range CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Kinematics & Configuration
Table Movement
Horizontal X
Gantry Movement
Vertical Y
Cutting Wire
Loop Movement
De Dust System
Bag System
HS Code
8477800000
Production Capacity
50 PCS Per Month
Packaging & Delivery
Package Size
500.00cm * 200.00cm * 200.00cm
Gross Weight
1200.000kg
Transport Package
Plywood Box

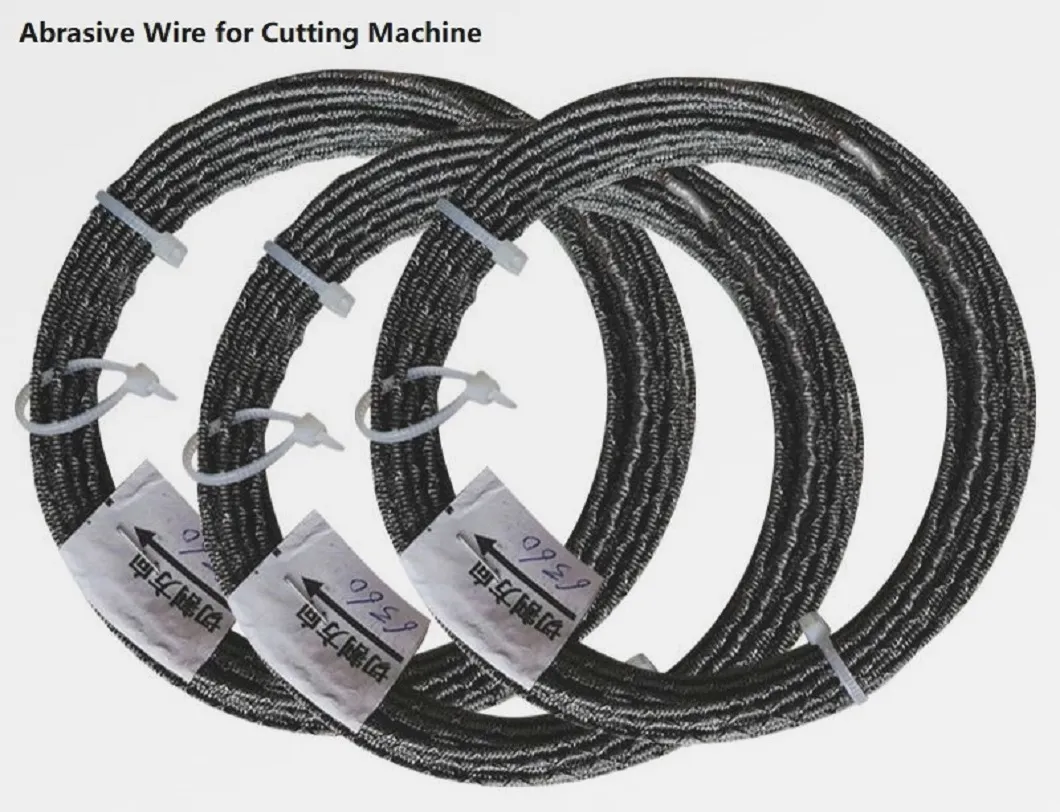

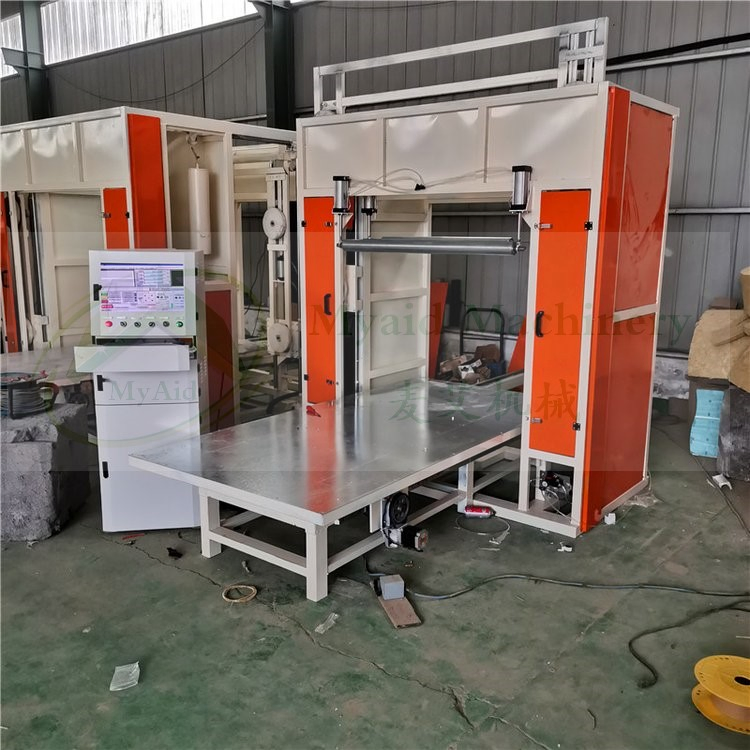

Cutting Wire Details

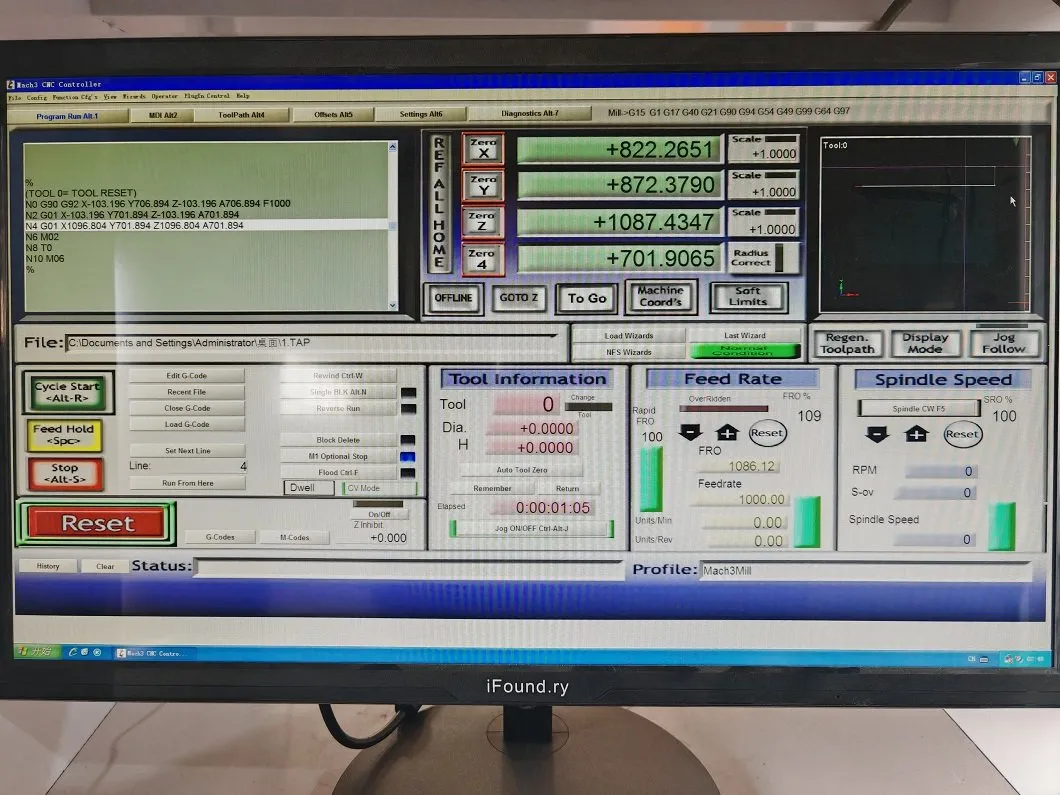

CNC Control Software

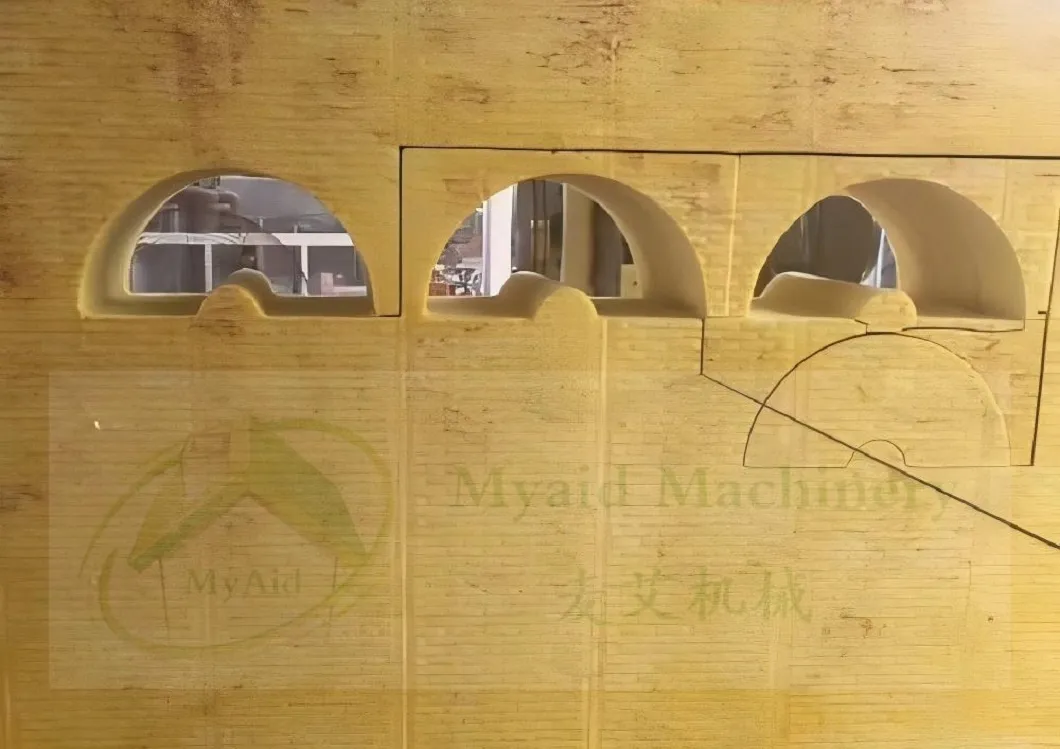

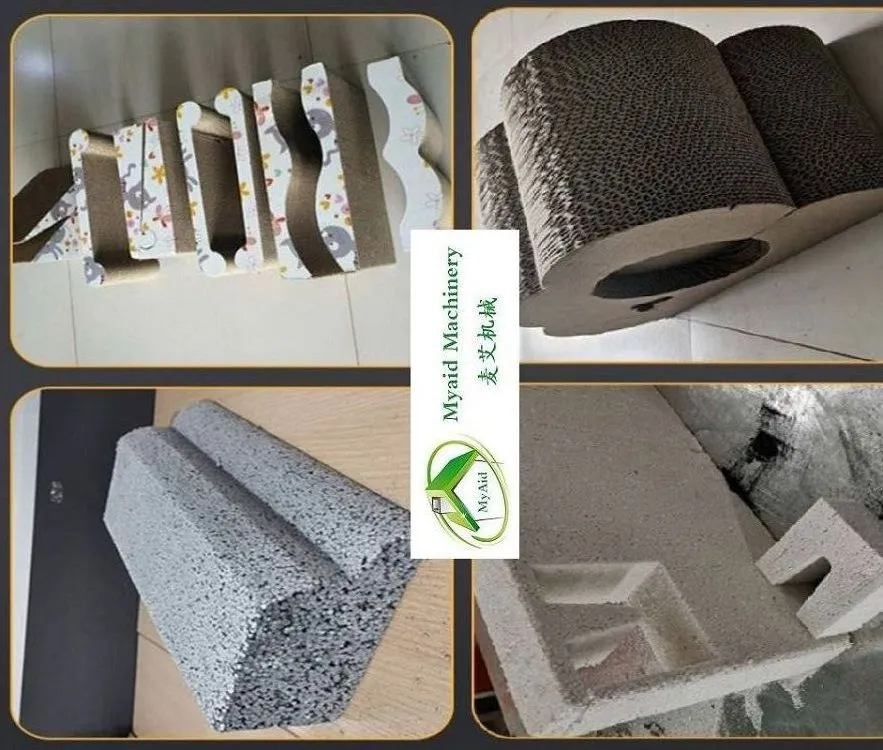

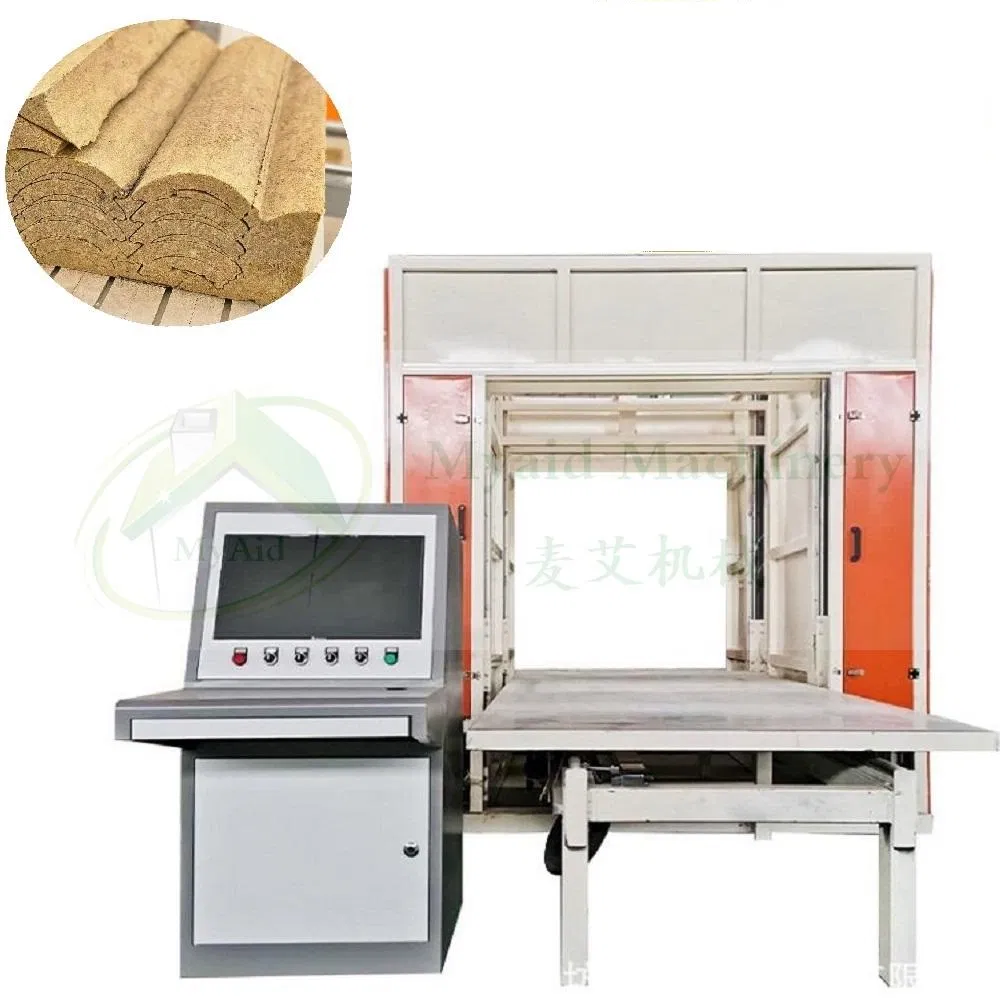

Foam Contour Applications
Machine Specifications & Parameters
| CNCPSQ2500 Parameters Configuration | |||
|---|---|---|---|
| Model No. | CNCPSQ2500 | ||
| Working Size | L2500mm * W1224mm * H900mm | Cutting Speed | 0 ~ 6 m/min |
| Machine Size | 4000mm * 2200mm * 2300mm | Speed Control | Frequency conversion control |
| Max Lifting Height | 3300mm | Computer Included | Yes |
| Machine Weight | 1200kg | Software Suite | CAD/Computer integration |
| Power Supply | 380V, 3 Phase, 50Hz (Default) | Control System | Mach3 |
| Total Power | 3kW | Stabilizing Unit | Pressing Rollers |
| X / Y Axis Motion | Gear and Rack | De-dust Unit | Bagging De-dust unit |
| Cutting Wire | High Carbon Steel Abrasive Wire | Wire Tensioner | Pneumatic via air compressor (600W) |
| Wire Diameter | 1.3 / 1.5 / 1.8 / 2.0 / 2.2 mm | Motor Type | 4 sets Stepper Motor |
| Wire Type | Smooth / Single Peak / Double Peaks | Guiding Rollers | Nylon rollers with multiple grooves |

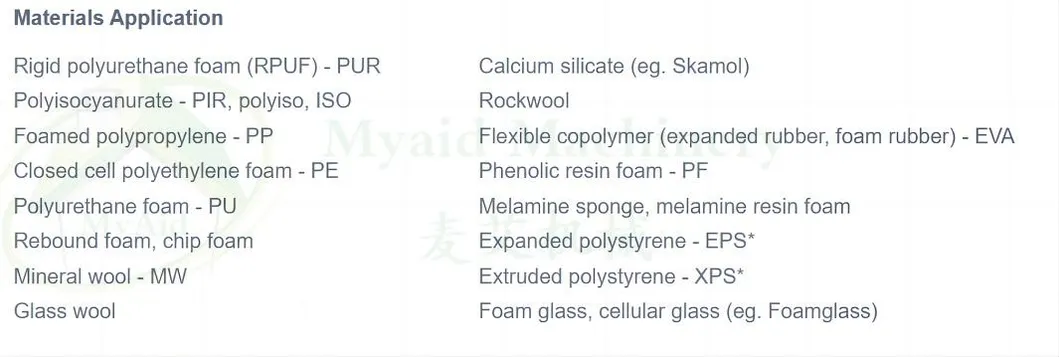

| Supported Materials | EPS Cement, foam cement, glass wool, mineral wool, PU, Sponge, EPS, NF EPS, XPS, Foam Glass, EVA, Corrugation Paper, PE, gypsum, composite materials, etc. | ||
| Special Remark | High-density materials like foam ceramics require a diamond wire loop. In such cases, the machine is modified with steel guiding rollers, overall waterproofing, and complete protective covers. | ||

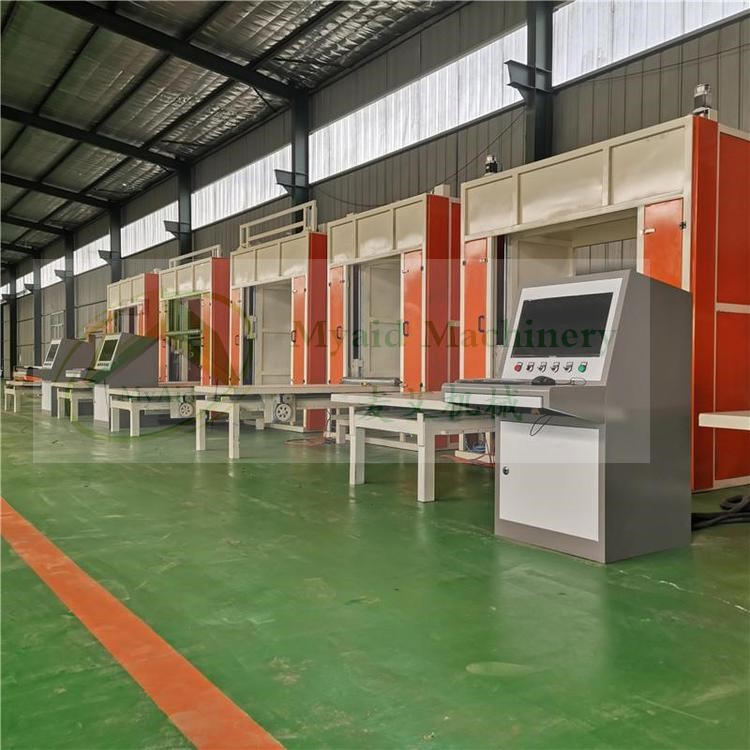

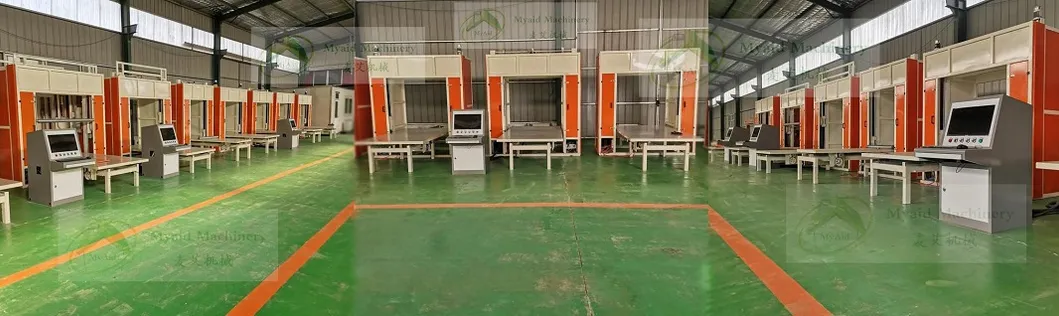

Production & Facility View
Frequently Asked Questions
What foam materials can this machine cut?
It supports cutting EPS cement, foamed cement, corrugated paper, PU, PUR, sponge, mineral wool, rock wool, and similar materials.
Are there different options available for the cutting wire?
Yes. You can select from smooth, single peak, or double peak cutting wire profiles depending on the specific characteristics of your material.
How many axes of movement does the cutter have?
The machine operates on a two-axis configuration (X and Y axes) to control vertical cutting wire frame movement and horizontal table coordinates.
Can this machine be shipped in a standard container?
Yes. The machine is packaged into two separate protective boxes designed to overlap inside a standard shipping container for secure transport.
What is the processing precision of the machine?
The machine features a processing precision of 0.2mm to ensure clean, accurate contours on all supported foam materials.
What software comes with the system?
The unit is delivered with a complete software control package designed to interface with computer/CAD configurations using a Mach3 control system.
