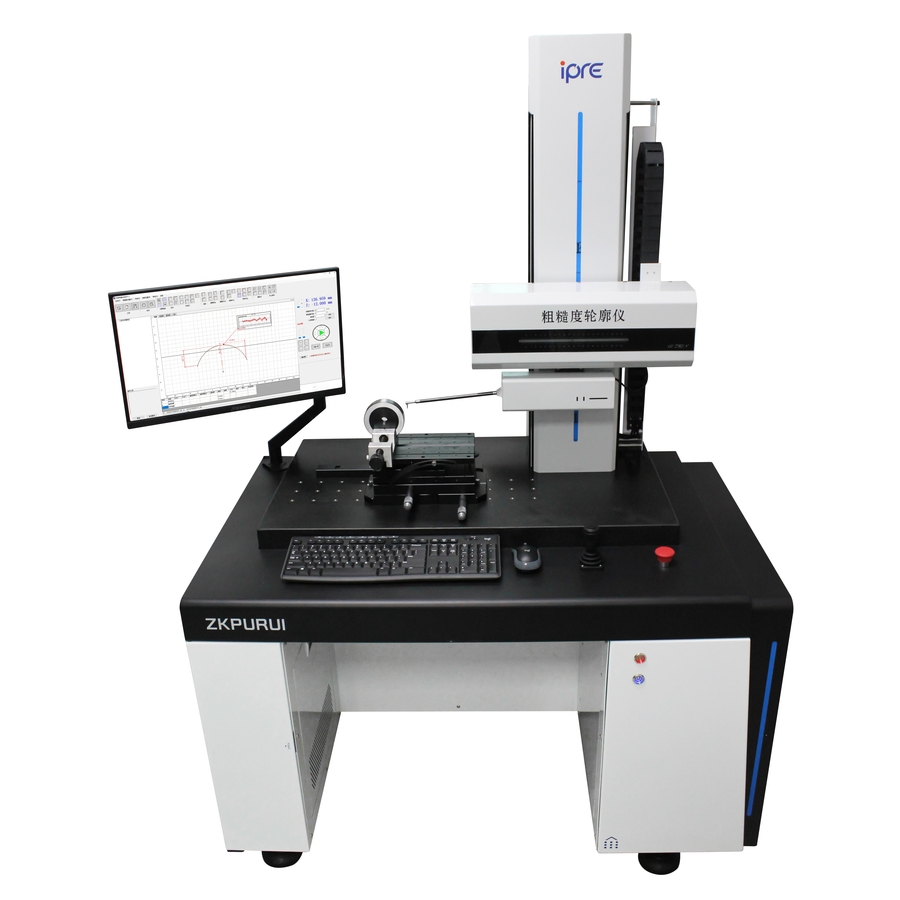

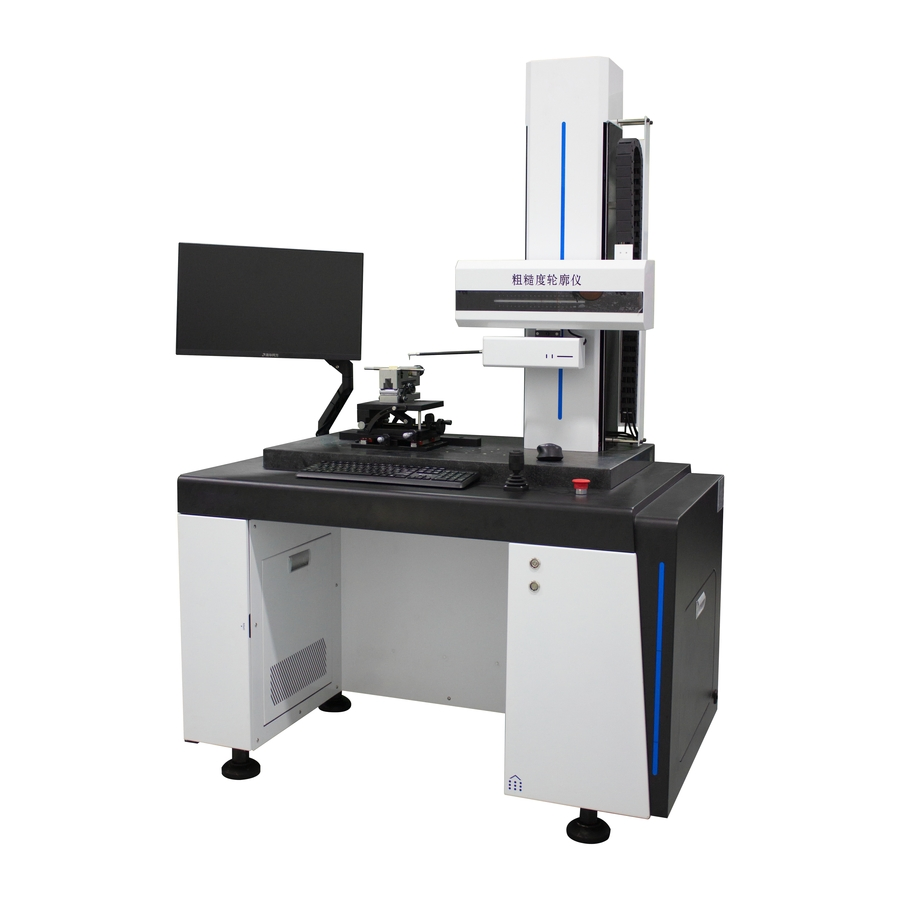

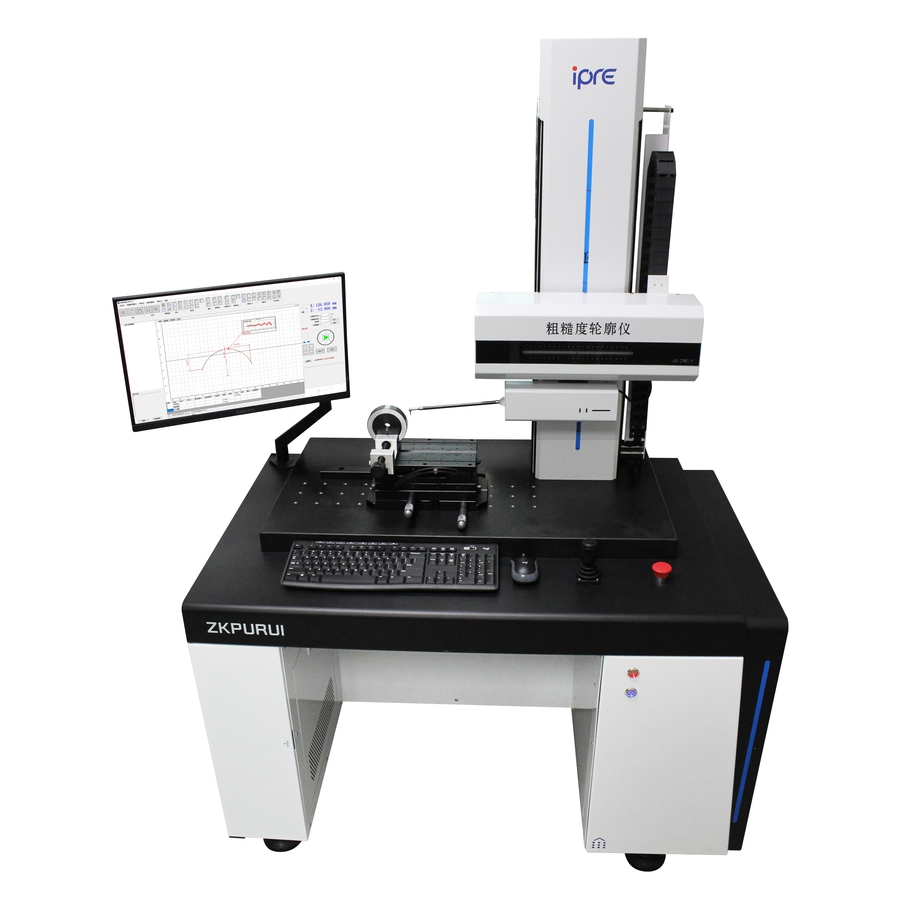

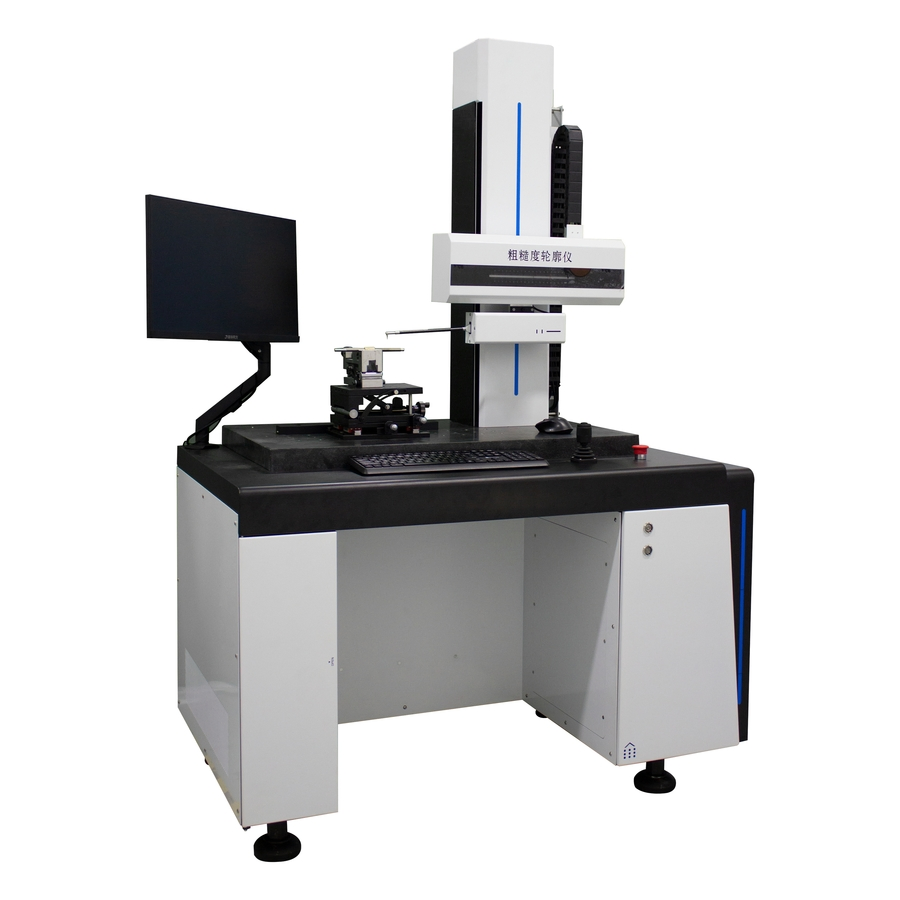

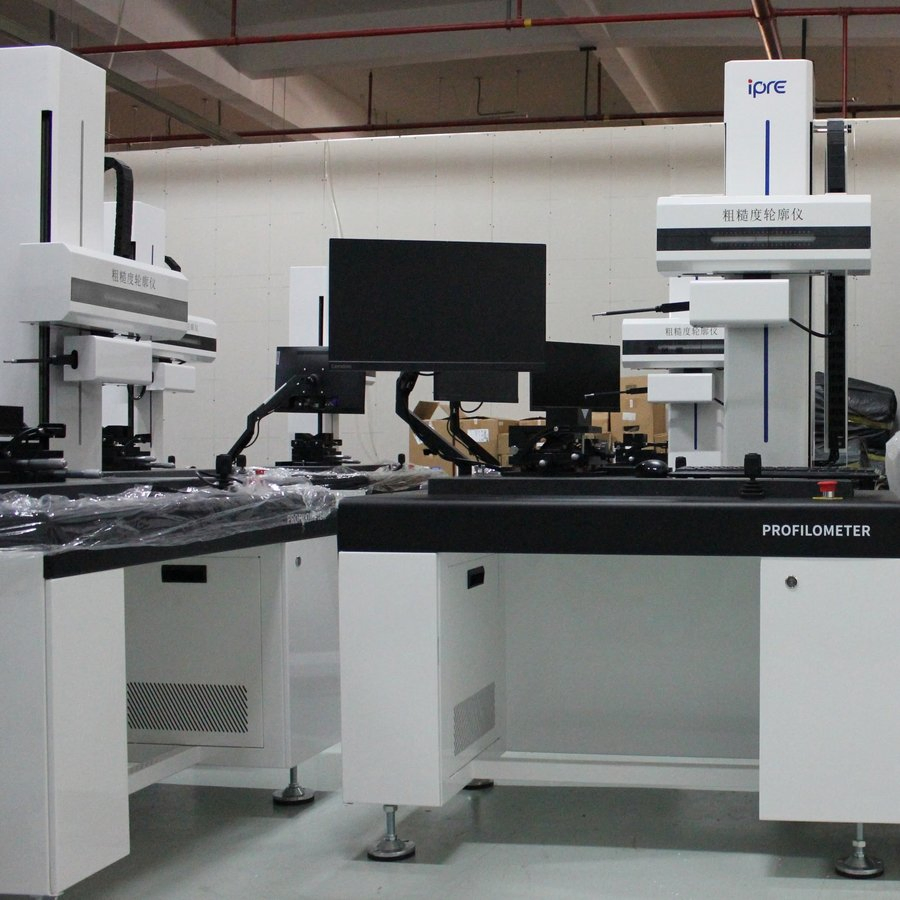

High Accuracy Ra150s Surface Roughness Finish Form Contour Meter Profilometer
Product Description
Basic Info.
Model NO.
RA150S
Material
Metal
Feature
High Range, High Accuracy, High Resolution
Application
Test Roughness Value and Profile
Transport Package
Wooden Box
Specification
International Standards
Production Capacity
500 Sets
Product Description
PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION
Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing.
This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.
Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.
Ideal for industries demanding micron-level precision, this profilometer is your trusted partner for quality control and dimensional inspection.
Specification
| Project / Model | RA150S | |
| The X-axis sliding linear guide rail | Moving accuracy | ≤±(1+|0.02L|)μm |
| The X-axis positions the grating ruler | Resolution | 0.01μm |
| Date sensor | Resolution | 0.001μm(Roughness test) |
| Linear precision | ≤±(0.8+|0.05H|)μm | |
| Circular arc | ≤±(1.2+R/12)μm | |
| Angle | ≤±1′ | |
| Straightness | ≤0.5μm/100mm | |
| Roughness Measurement | ||
| Test range | Z1 axis | ±20mm(Full range measurement of roughness) |
| Evaluation parameters |
Roughness assessment parameters: Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c); Parameters for ripple degree assessment: Wa, Wz, Wq, Wt, Wp, Wv, Wc, Wdc, Wsk, Wku, Wsm, Wmr and Wmr(c); Original profile rating parameters: Pa, Pz, Pq, Pt, Pp, Pv, Pc, Pdc, Pdq, Psk, Pku, Psm, Pmr and Pmr(c) |
|
| Sampling length L | 0.08, 0.25, 0.8, 2.5, 8 (mm) | |
| Evaluation length | According to the GB / T10610-2009 standard implementation; | |
| Indication error | ±5% | |
| Repeatability of indication values | 3% | |
| Contour Measurement | ||
| Measure range | x-axis | ≤180mm |
| z-axis | ≤500mm (It can be adjusted according to user needs) | |
| Z1 | ±20mm | |
| Operational Requirements | ||
| Work environment | Operating temperature: 20 ± 2℃ (normal temperature) humidity 20-80% RH no obvious source | |
| Power supply required | 220V 50Hz, 0.5Kw Separate ground line | |
| Instrument size (length, width and height) | 1200×750×1800 (mm) | |
| Instruments weight | About 350Kg | |

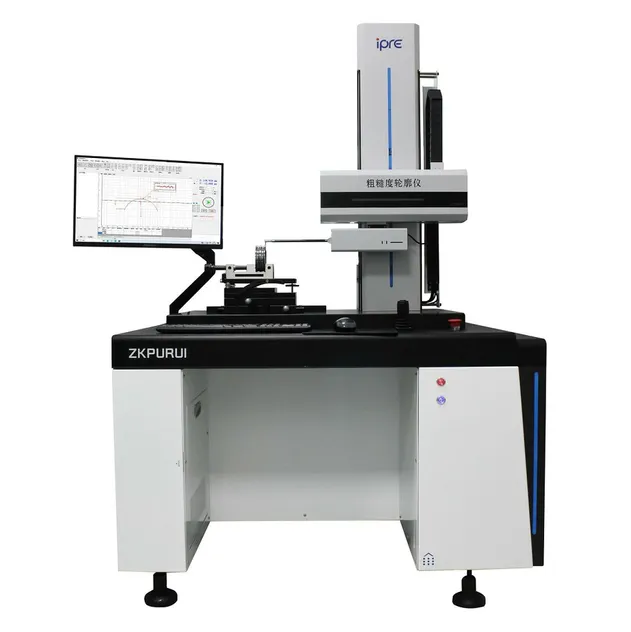

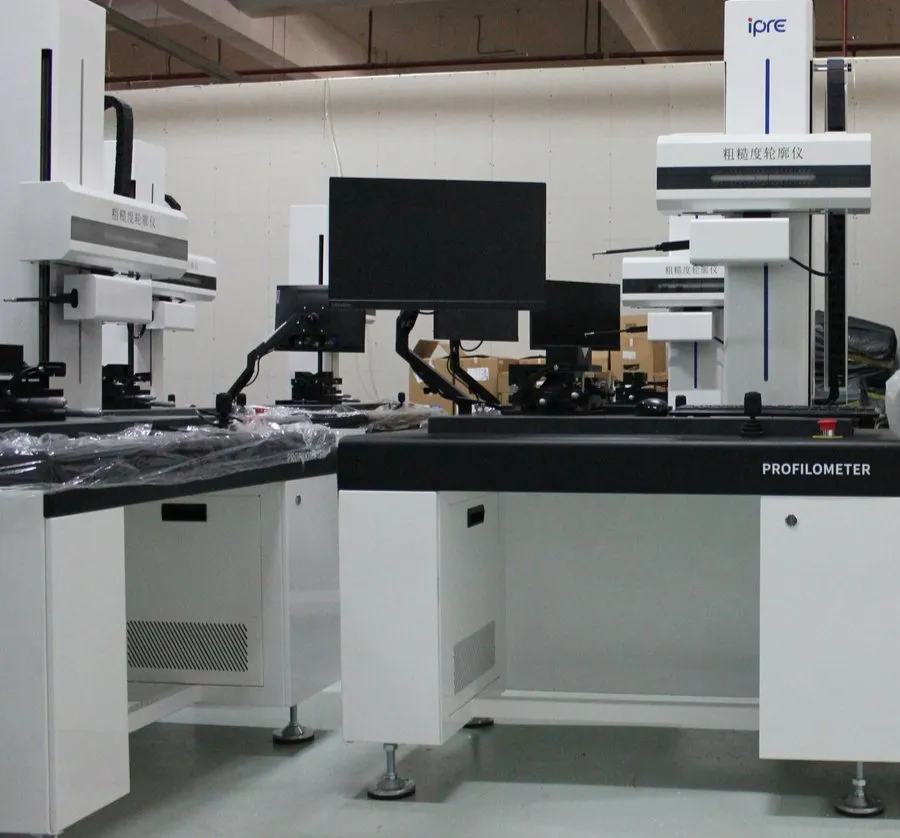

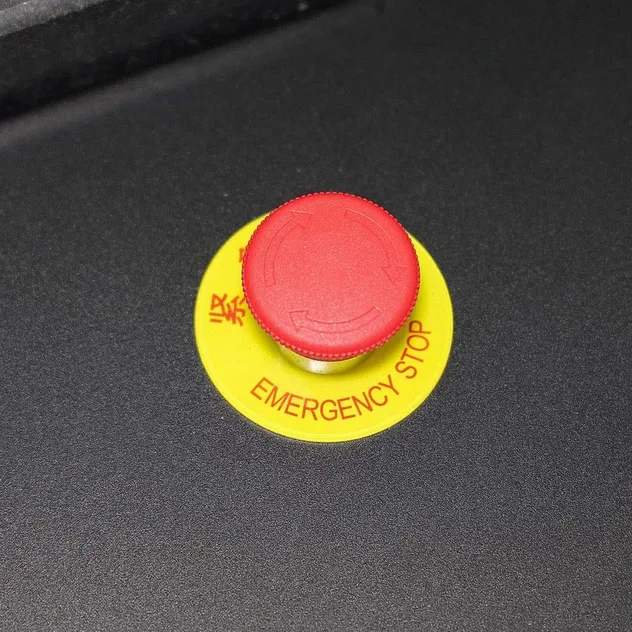

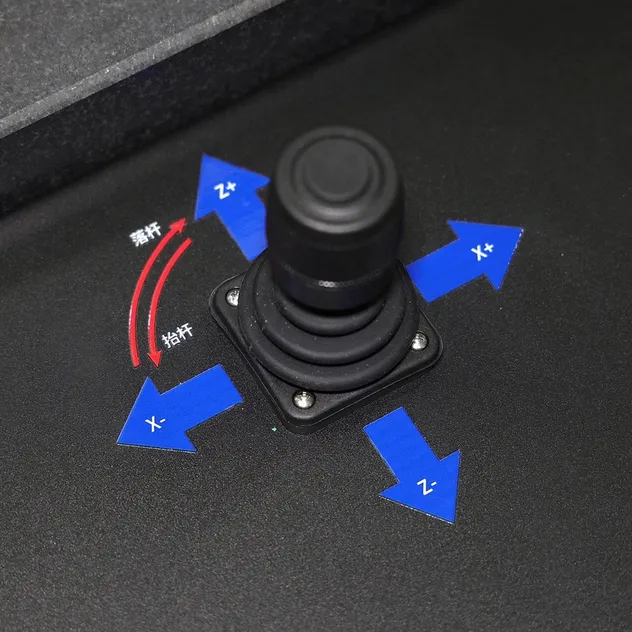

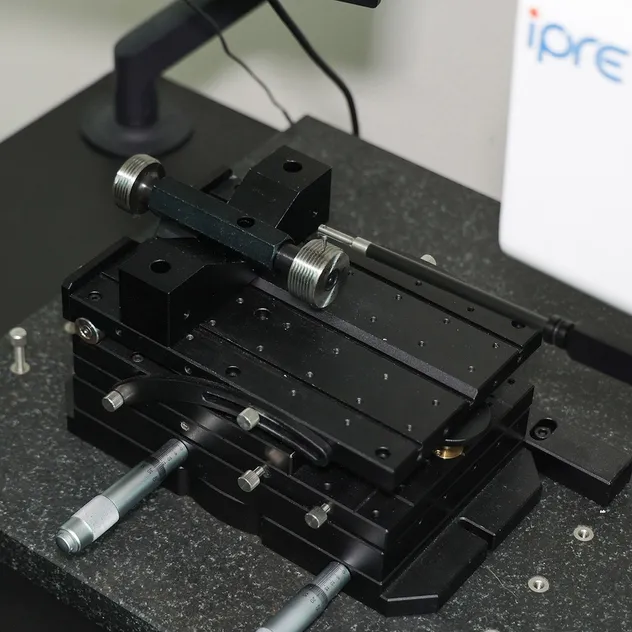

Detailed Pictures

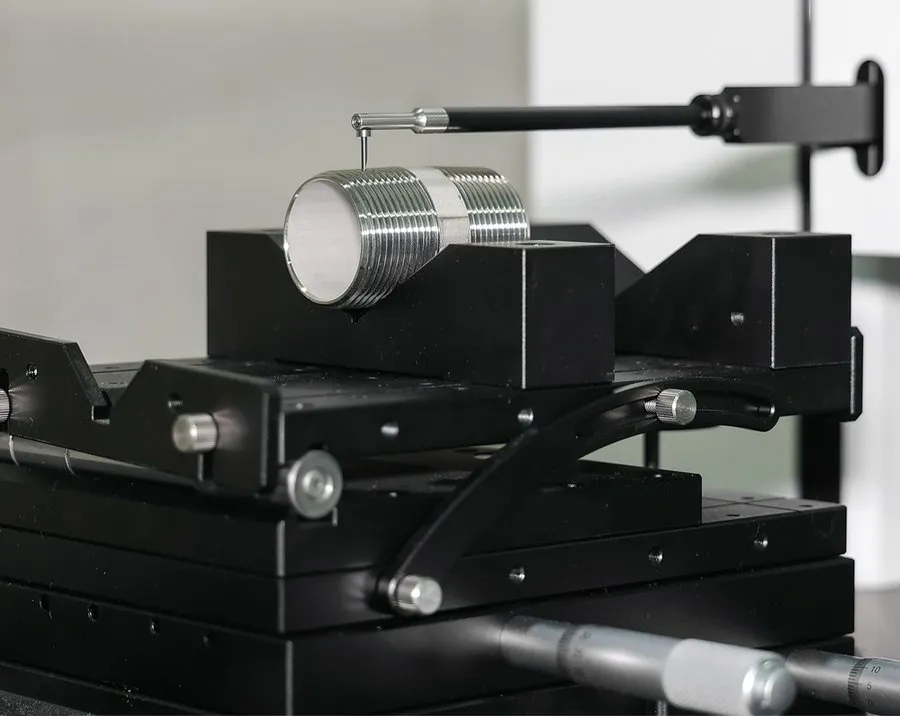

HIGH-PRECISION GRATING MEASUREMENT SYSTEM
Equipped with an advanced grating sensor technology that ensures exceptional measurement accuracy and repeatability for even the most demanding surface analysis tasks.

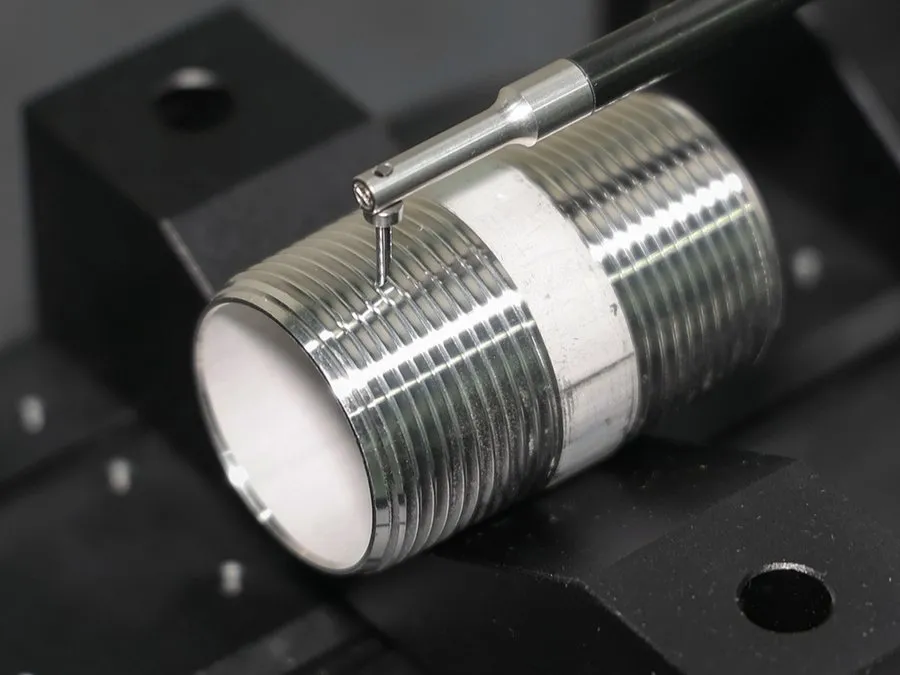

HIGH-RESOLUTION SURFACE DETECTION
Captures micro-level surface details with superior resolution, enabling precise evaluation of roughness values and subtle profile variations.

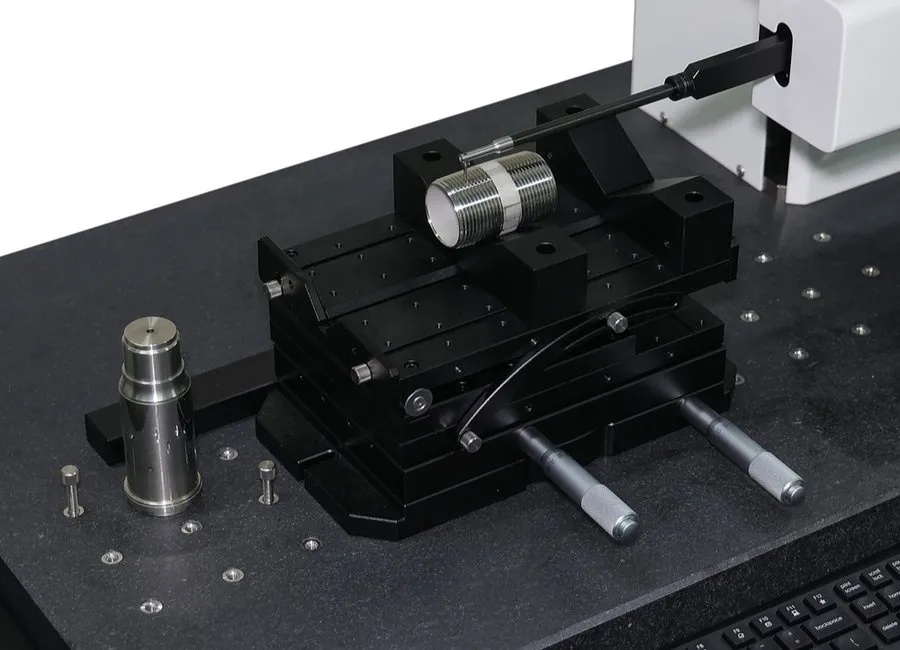

NON-CONTACT LINEAR MOTOR DRIVE
Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent and distortion-free measurement results.

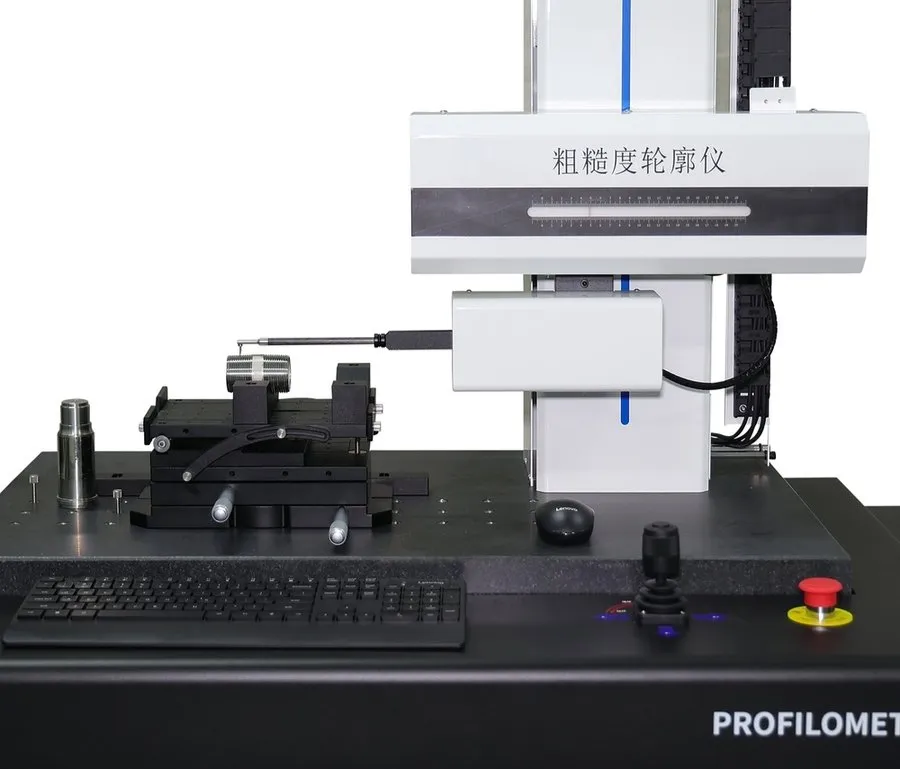

COMPREHENSIVE PARAMETER ANALYSIS
Measures a wide range of parameters, including roughness (Ra, Rz, etc.), surface waviness, straightness, inclination, arc radius, groove width, groove depth, and more.

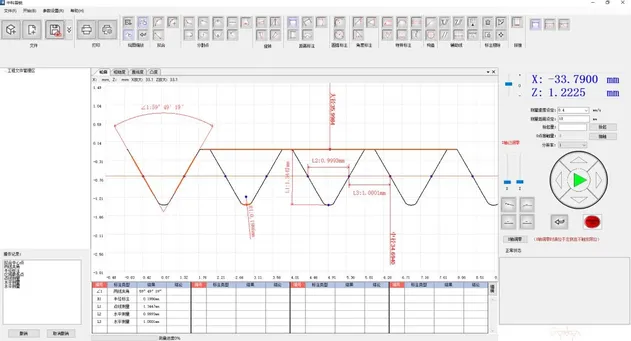

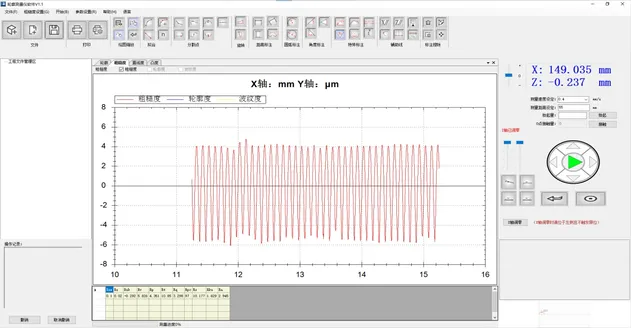

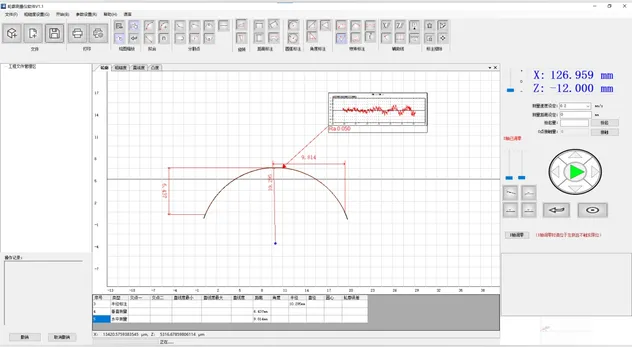

Intelligent Software System
- Powerful & Automatic Data Processing: Prints reports in various formats, automatically displays, prints, and queries measurement records. Data can be archived or printed centrally, without occupying verification operation time.
- Wide Measurement Range: Meets almost all types of workpiece contour measurement, including special workpieces, wire rods, bearings, threads, and other specialized contour analysis features.
- Flexible Evaluation Control: The tested sections can be automatically and manually selected for evaluation, and the software functions can be customized according to requirements.
- Multi-Standard Compliance: Roughness supports ISO, DIN, JIS, ANSI, and other multi-standard multi-parameter settings.
- High Capacity Database Storage: Using the computer's large-capacity database storage, users can easily record and save all verification results.
- Optimized Control: Features 0 self contact, with 4 gears of speed adjustment on the Z axis and X axis, offering convenient, fast positioning, and precise measurement.

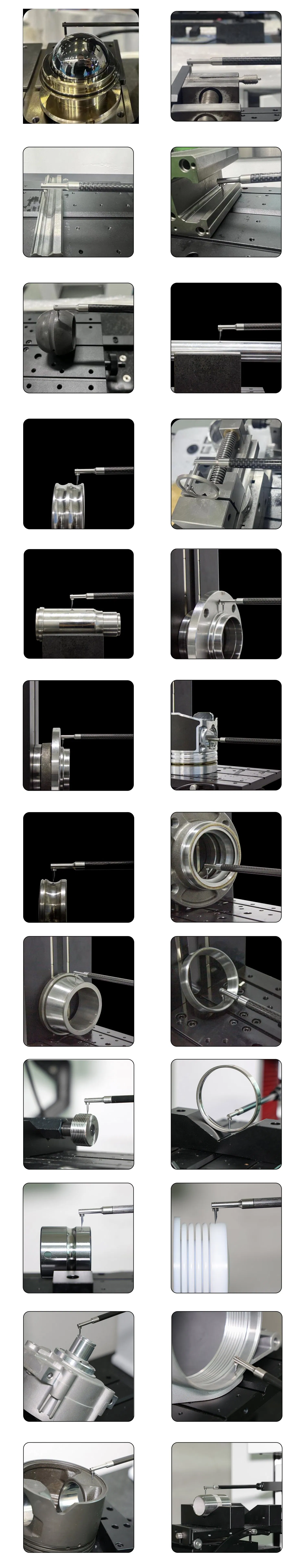

Application Scenarios
FAQ
Are the products manufactured directly?
Yes, the products are manufactured in a dedicated factory under strict quality control, combined with a professional trading team for seamless delivery.
What international certifications are available?
The manufacturing processes and products have passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, EU CE certification, and more.
What is the delivery time for regular products?
Most products are in stock. Depending on the order volume, delivery typically does not exceed 7 days. For customized orders, it takes approximately 1 week to prepare and dispatch the goods.
What are the payment methods?
We support various flexible payment options including L/C, T/T, D/P, PayPal, Western Union, small-amount payments, and MoneyGram.
What is the minimum order quantity (MOQ)?
The minimum order quantity for these standard products is 1 unit.
What surface parameters can be measured with this profilometer?
It evaluates roughness parameters (Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq), waviness parameters (Wa, Wz, Wq, Wt, Wp, Wv, Wc, Wsm), and original profile parameters (Pa, Pz, Pq, Pt, Pp, Pv, Pc).
