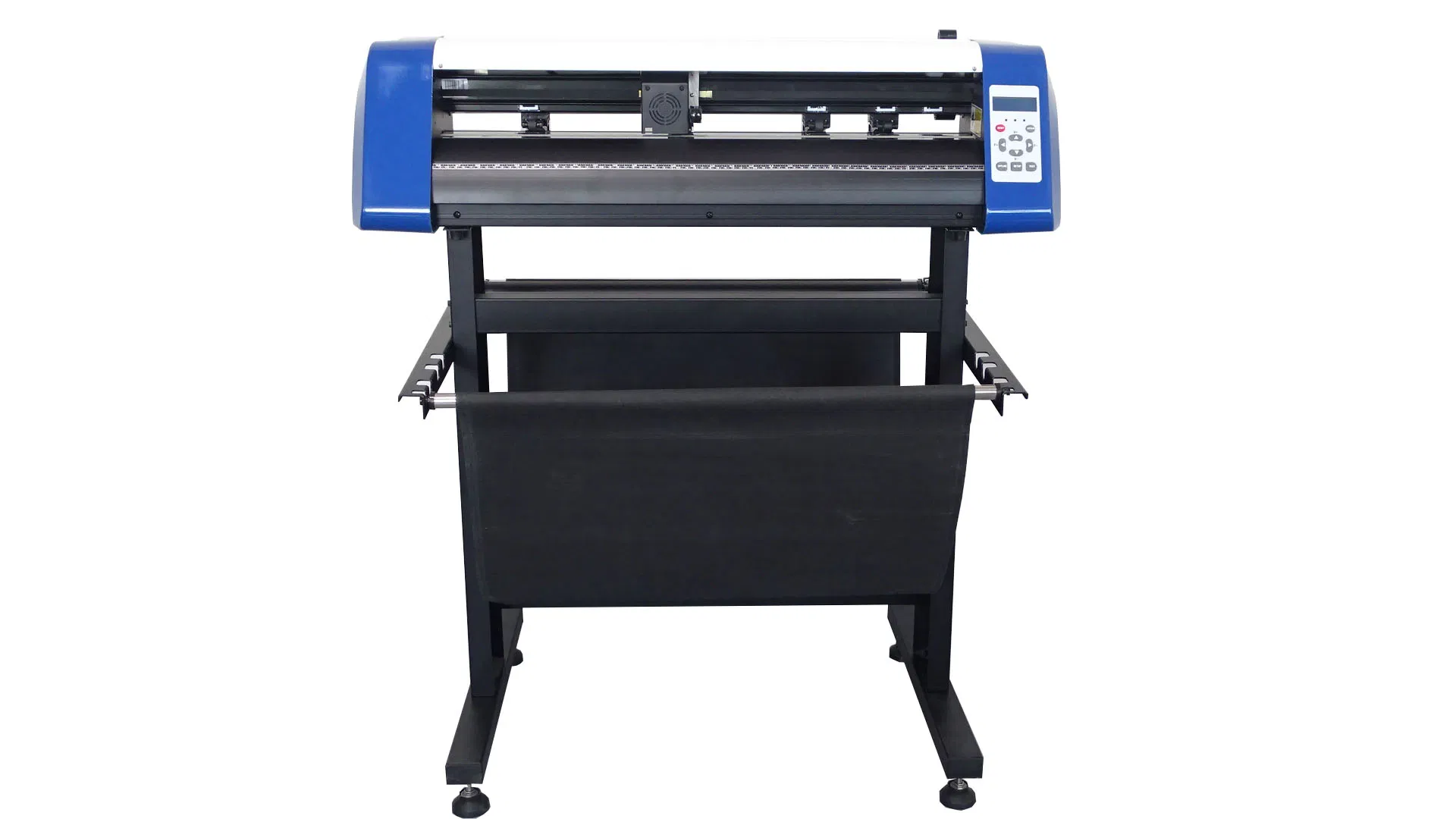

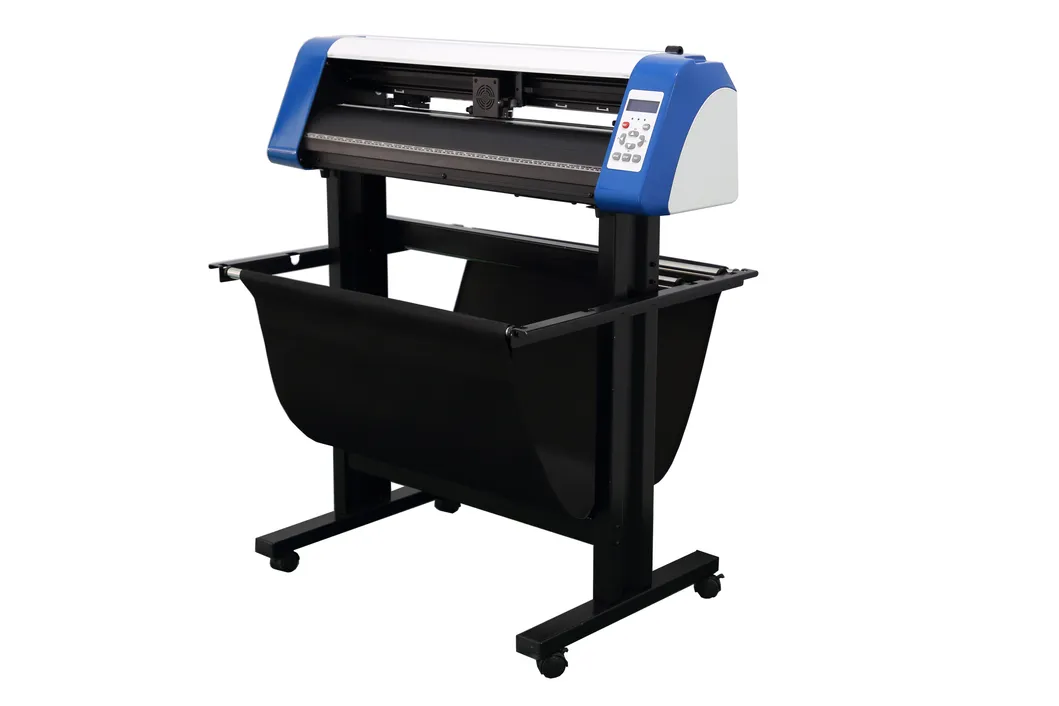

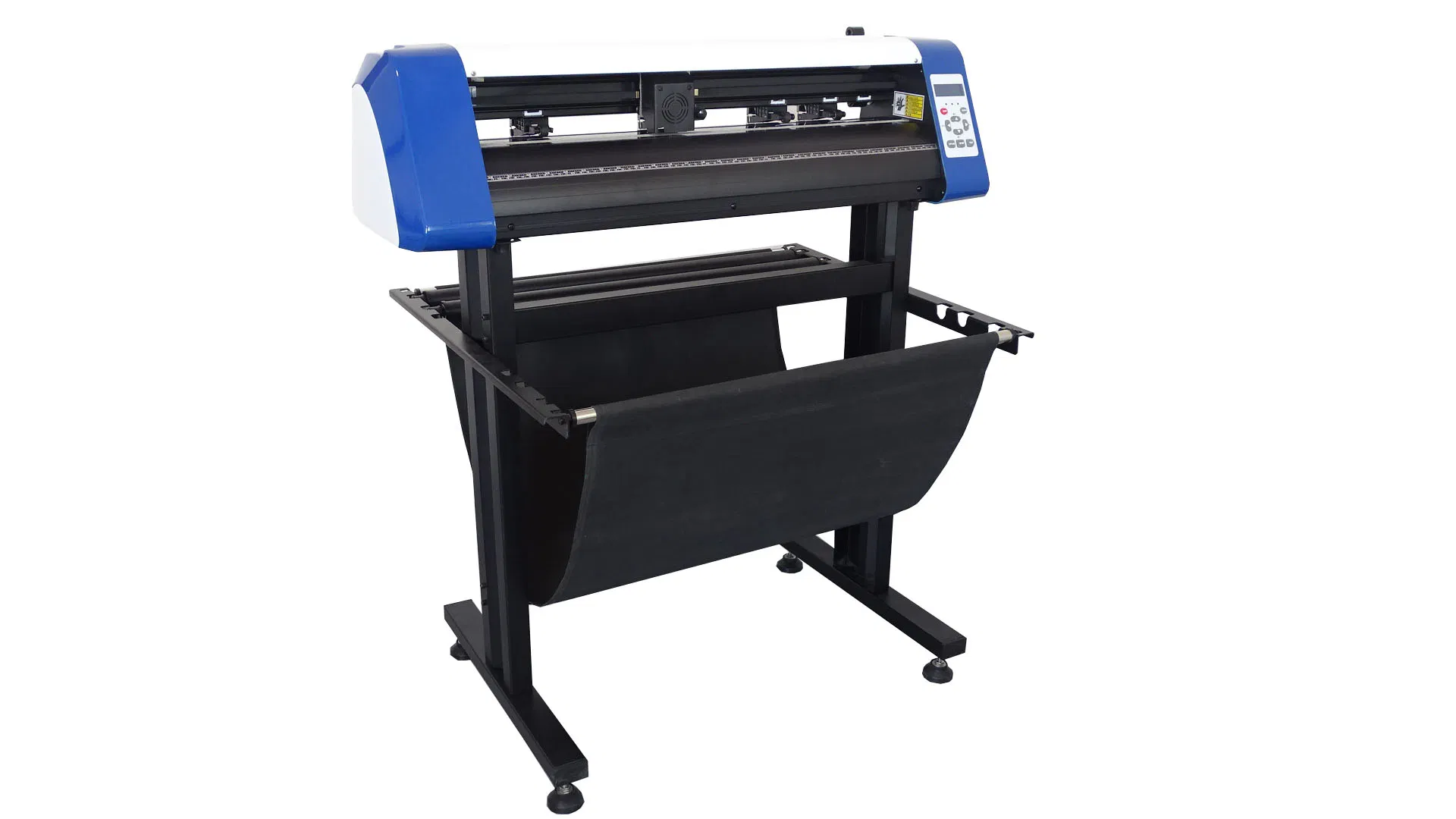

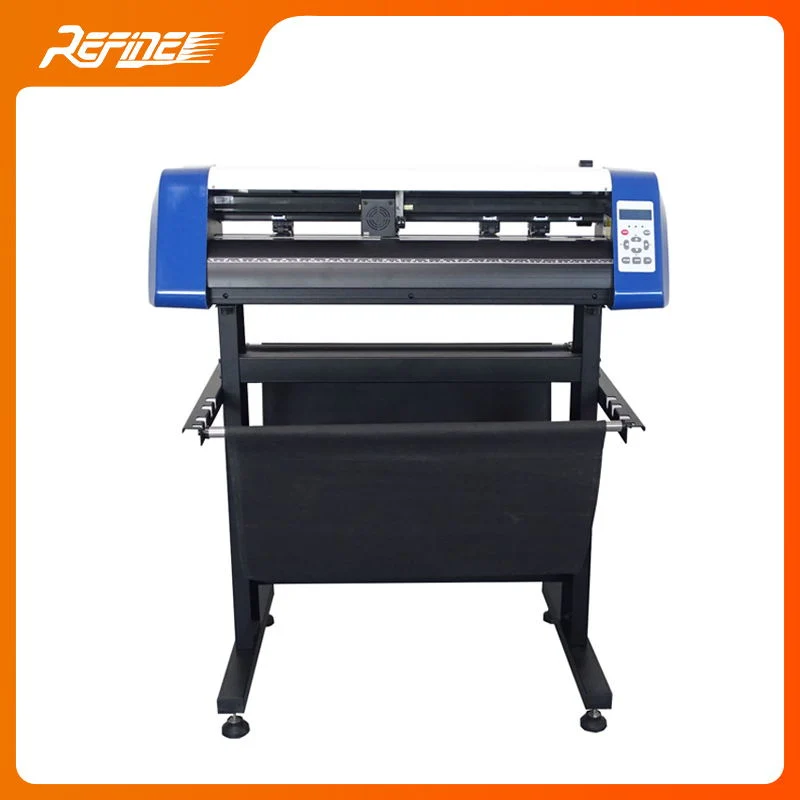

Newfuture Brand 720mm Automatic Contour Cutting Plotter with Stepping Motor
Product Description
Newfuture Brand 720mm Automatic Contour Cutting Plotter with Stepping Motor
Key Features
Long Distance Tracking
Strong structure and high quality girt rollers to keep long distance tracking.
Advanced Driver System
High performance stepper motor driver system.
Durable Cutting Head
Robust cutting head configured with 4 wheels for stable precision.
Premium Construction
Aluminum alloy construction paired with modern, nice ABS end caps.
Speed & Force Settings
Speed: 20-800mm/s, Force: 20-500g.
ARMS Contour Cut
ARMS Automatic contour cut with Multiple Marks (Multiple marks can be done through Signmaster software).
Specifications
- CPU: 16M
- Mechanical Resolution: 0.0254mm/pulse
- Carriage: Made of cast-iron aluminum
- Main Roller: Steel Axis
- Pinch Holder: Integrative
- Floor Stand: Strong ironic stand with media holder
Technical Data
| Model Item | AB-720 | AB-1350 |
|---|---|---|
| Max Feeding Width | 720mm | 1350mm |
| Max Cutting Width | 630mm | 1260mm |
| Accuracy | +/-0.01mm | |

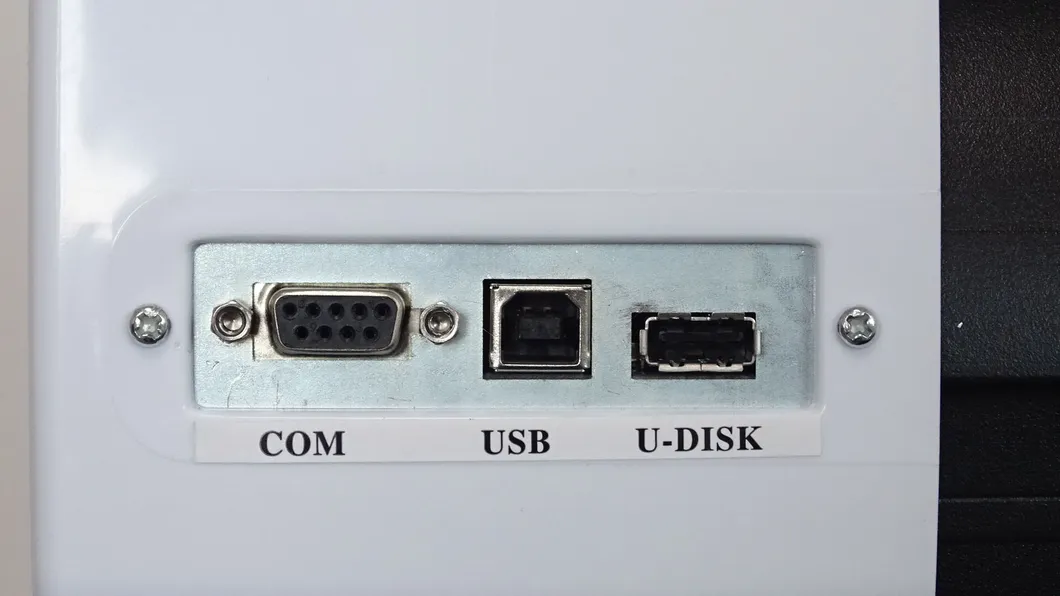

| Interface | USB / Offline USB / RS232 | |
| Drive | Step motor | |
| Power Consumption | <100w | |
| Working Temperature | 5 - 35 degrees Centigrade | |
| Packing Size | 1.02 * 0.33 * 0.42m | 1.65 * 0.33 * 0.42m |
Shipment Details
- TNT / DHL / UPS for samples, Door-to-Door shipping service.
- For batch machines, shipment is effected by Seaway (FCL or LCL).
- We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
- Delivery Time: 3-7 days for samples; 10-20 days for batch goods.
Payment Terms
- We accept T/T, Western Union, L/C (depending on order amount).
- Sight L/C is acceptable if order amount exceeds USD 20,000.00.
Frequently Asked Questions (FAQ)
What is the cutting speed and force range of this cutting plotter?
The machine offers a cutting speed range of 20-800mm/s and a cutting force range of 20-500g.
Does this cutting plotter support automatic contour cutting?
Yes, it features ARMS Automatic contour cut functionality with Multiple Marks, which can be configured using Signmaster software.
What are the key technical differences between the AB-720 and AB-1350 models?
The AB-720 model features a maximum feeding width of 720mm and a maximum cutting width of 630mm. The AB-1350 model offers a larger feeding width of 1350mm and a maximum cutting width of 1260mm.
What interface connections are supported by these models?
These cutting plotters support USB, Offline USB, and RS232 interfaces for flexible operation.
What are the delivery times for sample and batch orders?
Delivery time is typically 3-7 days for samples via TNT/DHL/UPS, and 10-20 days for batch goods shipped by sea.
What payment methods do you accept?
We accept T/T, Western Union, and L/C (depending on the order amount). Sight L/C is acceptable for orders exceeding USD 20,000.00.
